HEXA

TRANSMISSION

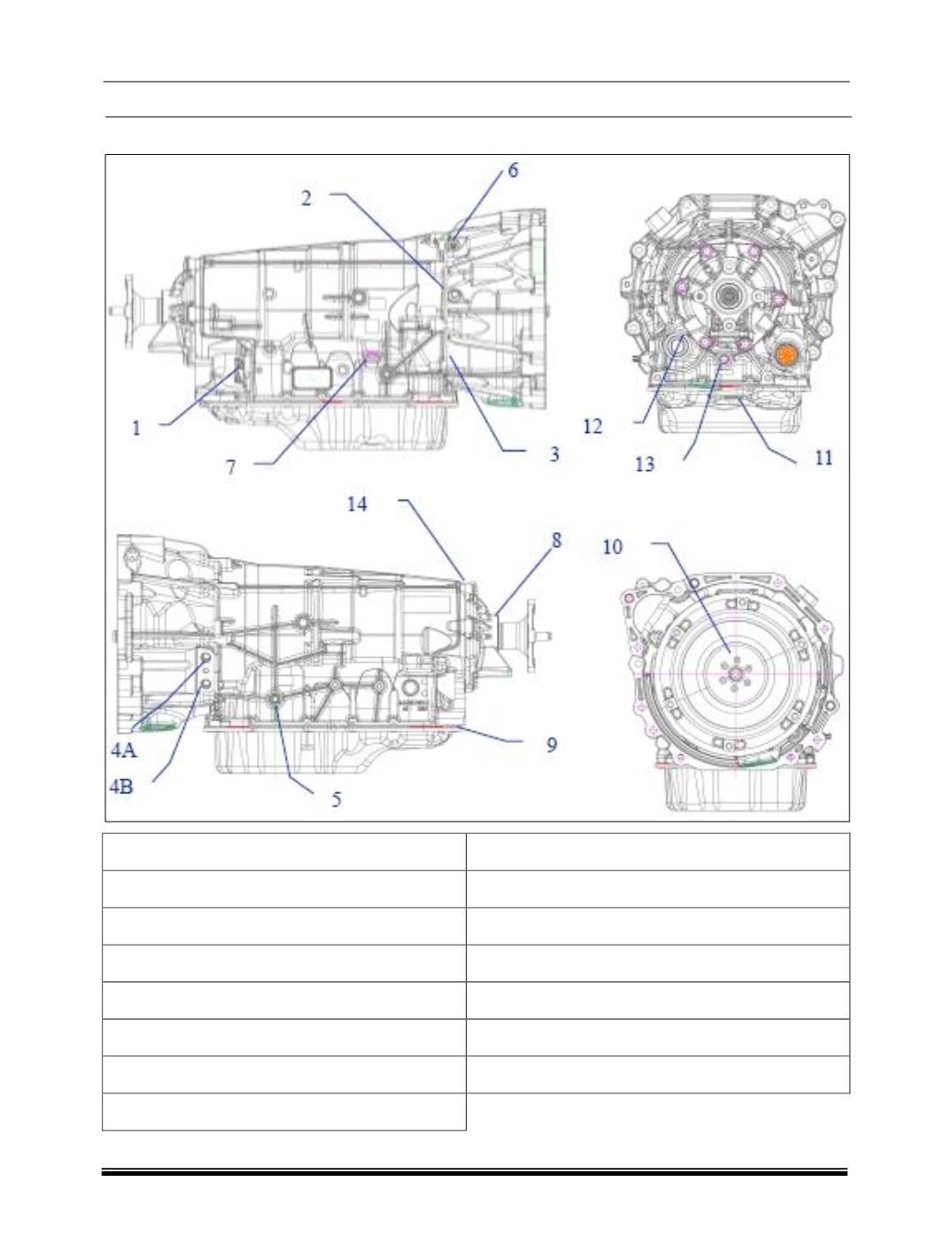

Seal Location and Description Rear Wheel Drive:

1. Electrical Connector Passage Sleeve

8. Output Shaft Seal Assembly

2. Line Pressure Test Hole Plug

9. A/Trans Fluid Pan Gasket

3. Converter Housing to Case Joint

10. Torque Converter Fluid Seals Assembly

4.a) Oil Cooler Pipe Connectors to Cooler

11. Transmission Fluid Pan Level plug

b) Oil Cooler Pipe Connector from Cooler

12. Guide ASM Park Pawl

5. Manual Shift Shaft Seal

13. Plug Park Pawl Shaft Hole

6. Automatic Transmission Vent Pipe

14. Adaptor Extension

7. Fluid Fill Plug Assembly
