1830 / 1906
HVAC
16
12
NC

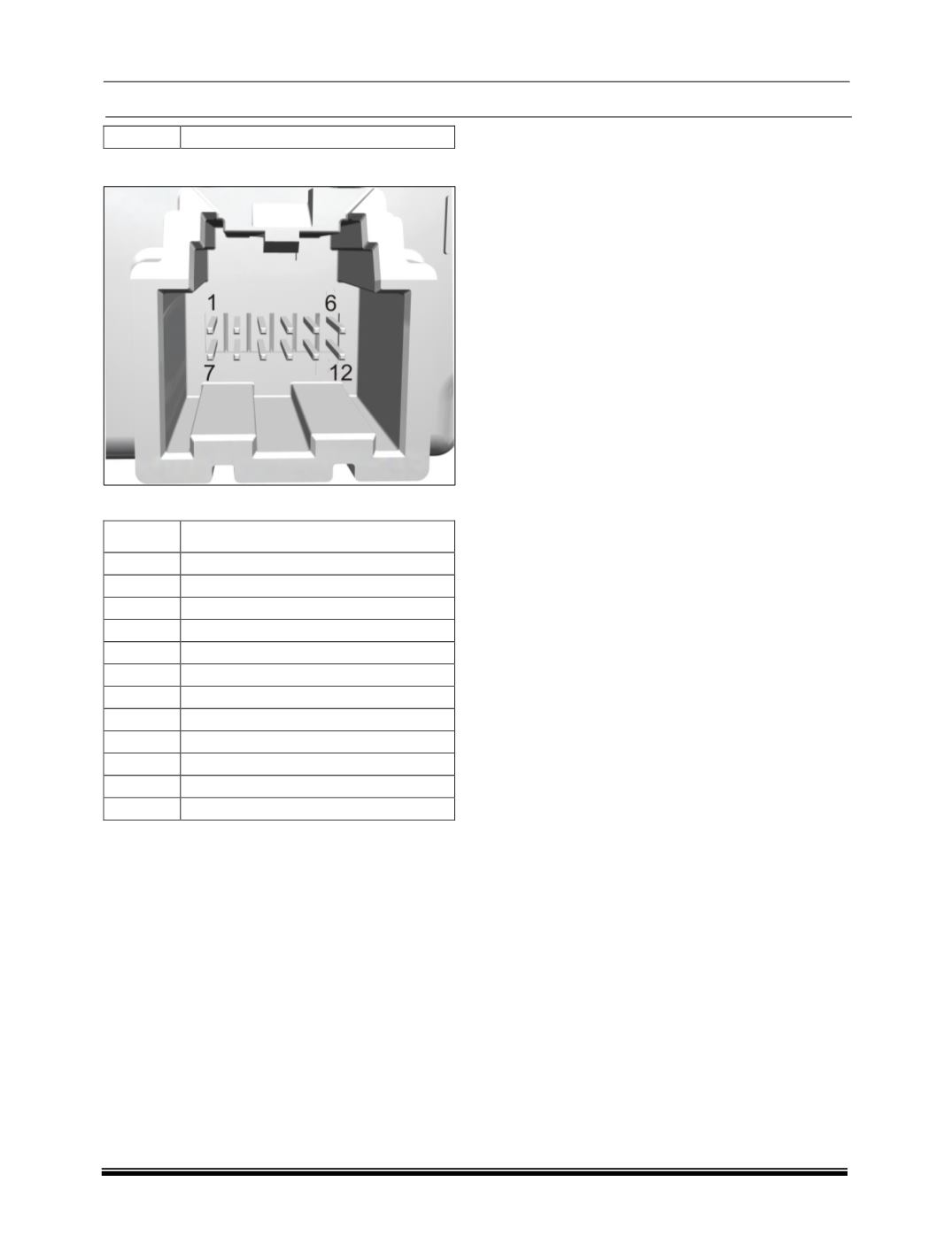

J1 CONNECTOR DETAILS
PINOUT DETAILS
PIN NO
DESCRIPTION
01
GND
02
REAR DEFOG OUT
03
AC COMPRESSOR REQUEST
04
ENGINE COOLANT TEMP
05
IGN
06
BATTERY
07
+5 VDC Vreg OUT
08
DIM (+)
09
NC
10
ALTERNATOR DF SIGNAL INPUT
11
BLOWER FAN HIGH INPUT
12
BLOWER FAN OFF INPUT
