1829 / 1906
HVAC
15

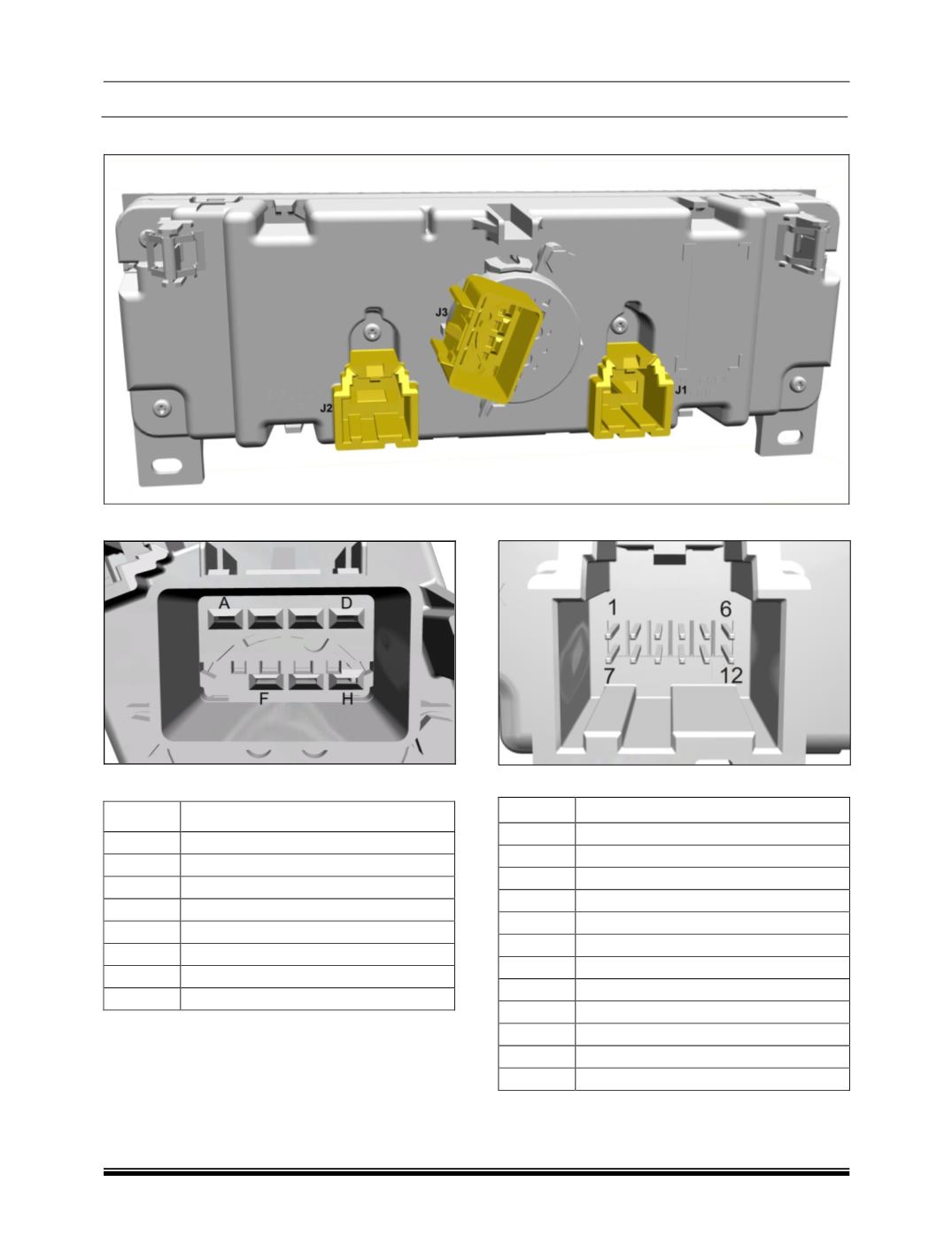

CONNECTOR DETAILS
J3 CONNECTOR DETAILS
PINOUT DETAILS with / without PTC HEATER
PIN NO
DESCRIPTION
A
HIGH
B
M2
C
M1
D
LOW
E
NC
F
NC
G
IGN
H
OFF
J2 CONNECTOR DETAILS
PINOUT DETAILS
PIN NO
DESCRIPTION
01
ANALOG GROUND
02
EVAP OUT TEMP SENSOR
03
TEMP DRIVE
04
AIR INLET DRIVE A
05
TEMP V
pos
RTN
06
NC
07
NC
08
MODE DRIVE
PIN NO
DESCRIPTION
09
MODE V
pos
RTN
10
AIR INLET DRIVE B
11
NC
