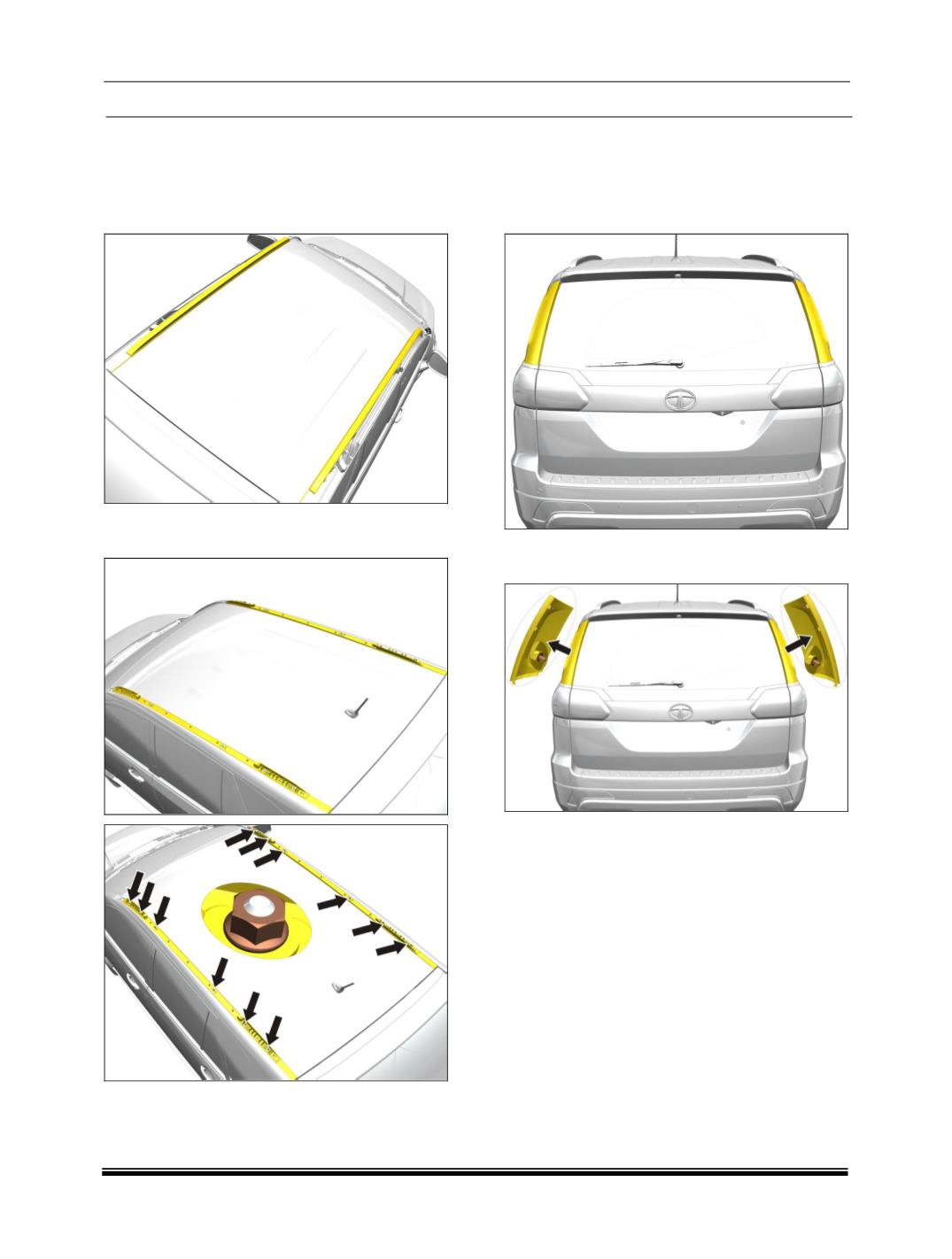

Y. ROOF RAIL ASSEMBLY

REMOVAL

1. Remove the front and rear upper cover and

roof bar cap from both the ends.

2. Loosen M6 hexagonal flange nuts 06nos from

LH side and 06nos from RH side.

Z. “D” PILLAR MOULDING:

REMOVAL

1. Pry out the “D” pillar assembly by using the

Popper tool set from body outer side.

2. Carefully remove the 04 nos tree clips from

the “D” pillar assembly.
