BODY
67

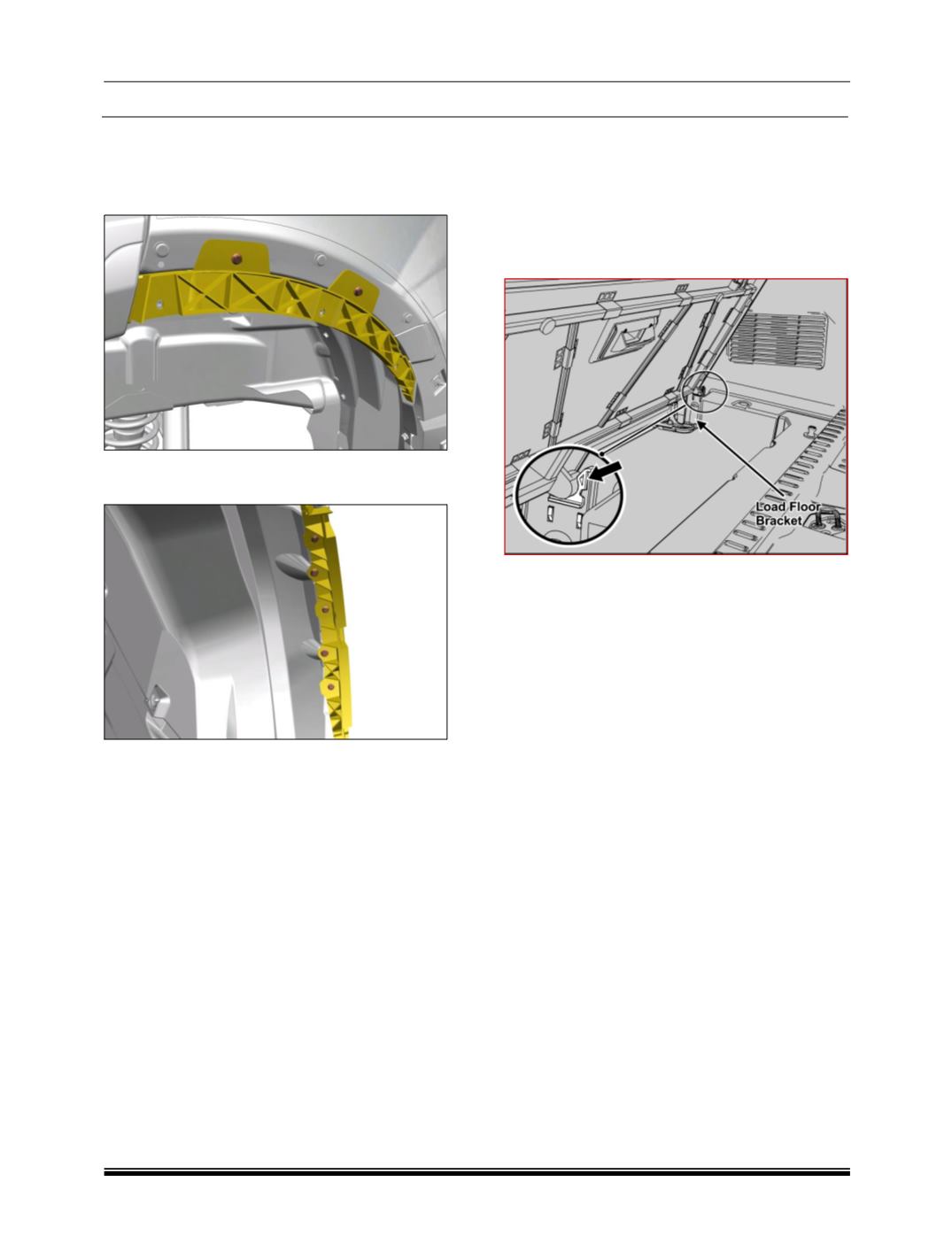

3. Pull out the rear arch liner
(Do not remove it
completely)
to have access to the third
mounting on the inner end rear bumper loosen
and remove the nut.
4. Loosen and remove three mounting nuts which
are on the rear wheel arch mounting bracket.
5. Pullout out and remove the rear wheel arch
cover to free all the tree clips and special
screws.
FITMENT
For fitment follow reverse procedure of removal.
NOTE
Before assembly check the condition of plastic
clips if found damaged replace with new one at
the time of assembly.
X. LOAD FLOOR
REMOVAL
1. Open the load floor.
2. Disconnect the plastic from the load floor
bracket. Follow the same procedure for other
end also.
3. Remove the load floor assembly.
FITMENT
1. Mount the plastic cap on the load floor bracket.
2. Insert the pivot pins on the load floor
assembly.
3. Press this subassembly on to the load floor
bracket.
