SUPPLEMENTARY RESTRAINT SYSTEM (SRS)

32

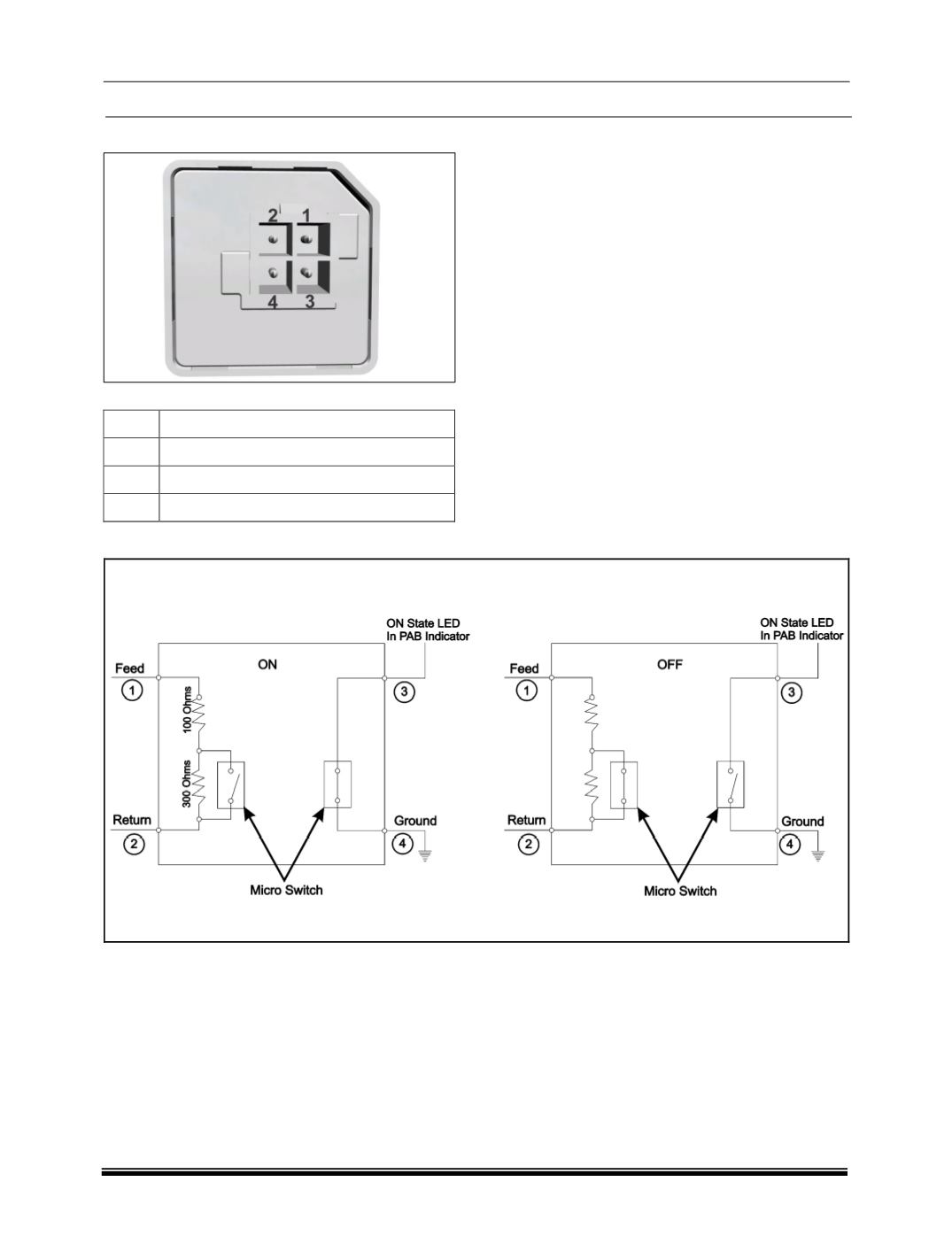

CONNECTOR DETAILS

PINOUT

1

Supply

(From Air Bag)

2

Return

(To Air Bag ECU)

3

ON state LED in PAB Indicator

4

Ground

CONNECTION DETAILS
