2. INSTRUMENT CLUSTER OVERVIEW

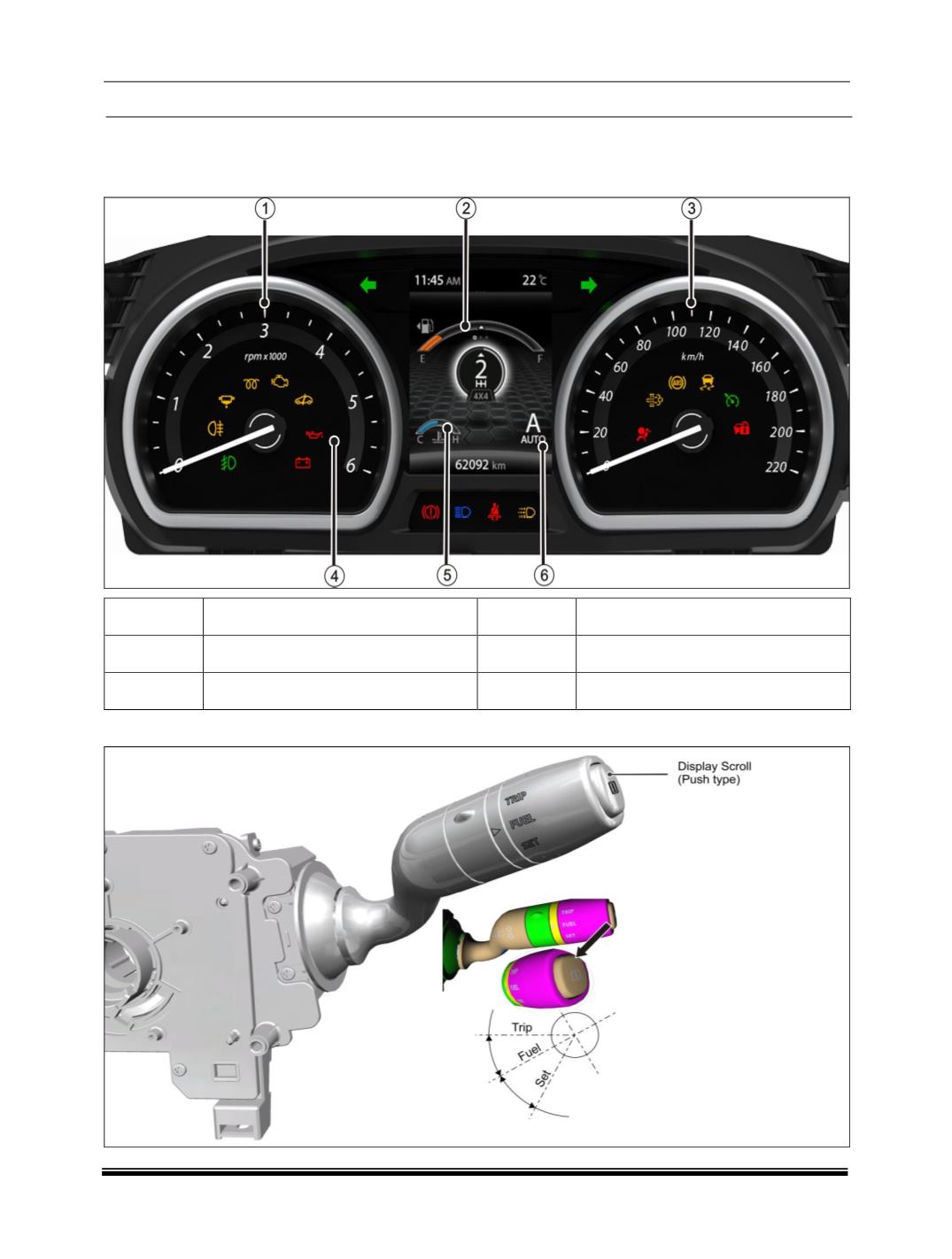

The Instrument cluster consists of Telltales, Speedometer, RPM Meter, Temperature graph, Fuel graph and
Driver information system.
1
Tachometer
4
Warning Lamps
2
Fuel Gauge
5
Temperature Gauge
3
Speedometer
6
Driver Information System
Driver Information Control Switch
