HEXA

ELECTRICAL

135

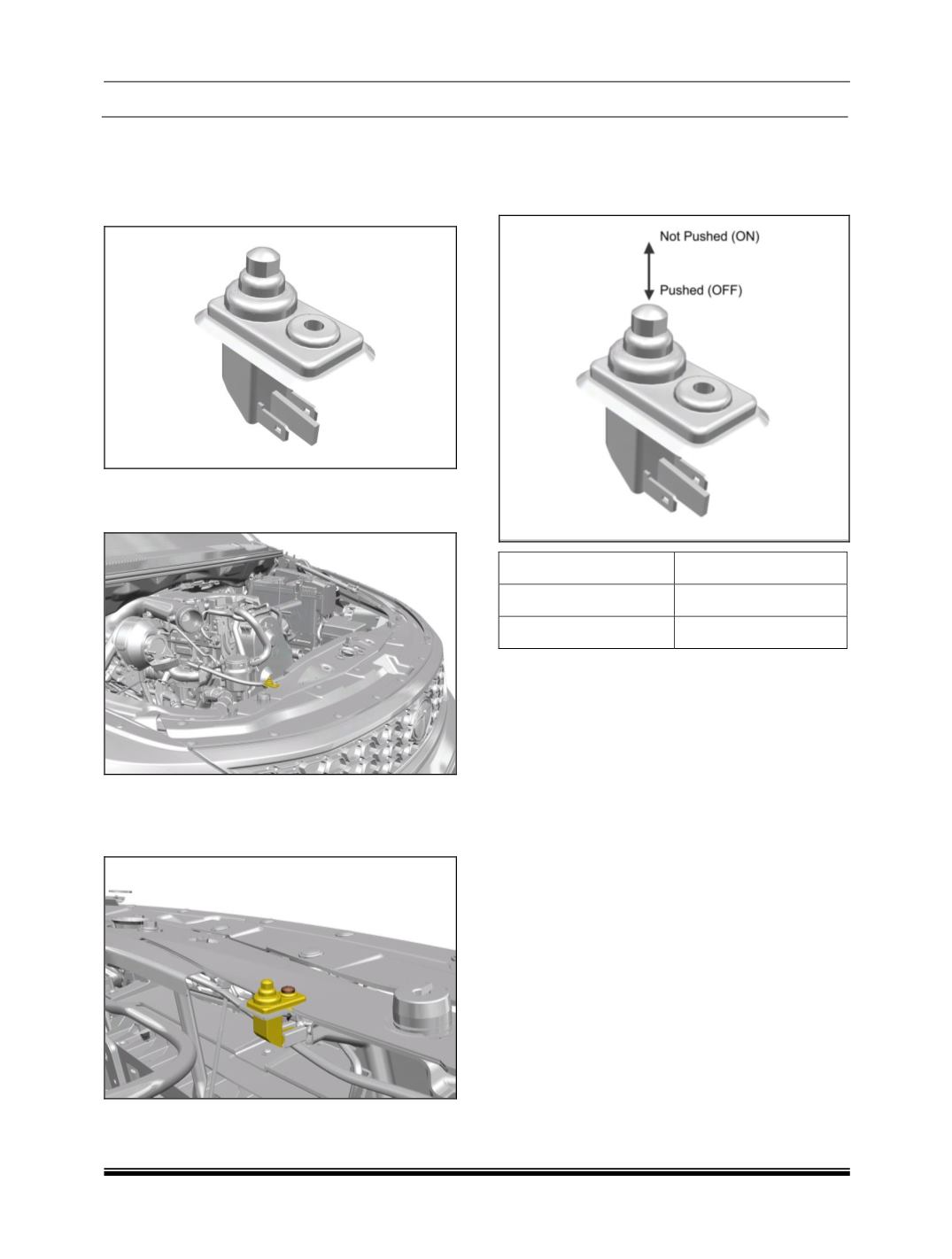

8.9.7 BONNET SWITCH

FUNCTION:

Bonnet switch is switched on or off in response to

opening and closing of bonnet.

LOCATION:

It is fitted on Hood latch platform.

REMOVAL:

1. Open the bonnet and remove one mounting

screw of bonnet switch.

2. Disconnect the electrical connection and take

out the switch along with bracket.

INSPECTION:

Test the switch with a Multimeter. Clip the probe of

the multimeter to switch terminal and check the

continuity.

CONDITION

SPECIFIED

Not Pushed(ON)

Continuity

Pushed(OFF)

No continuity

If not as per specified condition, then replace the

switch.

REFITMENT:

1. Fit the bonnet switch on the bracket.

2. Tighten one mounting screw.

Tightening toque for screws – 0.5 – 0.7 Kgfm

3. Connect the electrical connection to the bonnet

switch.
