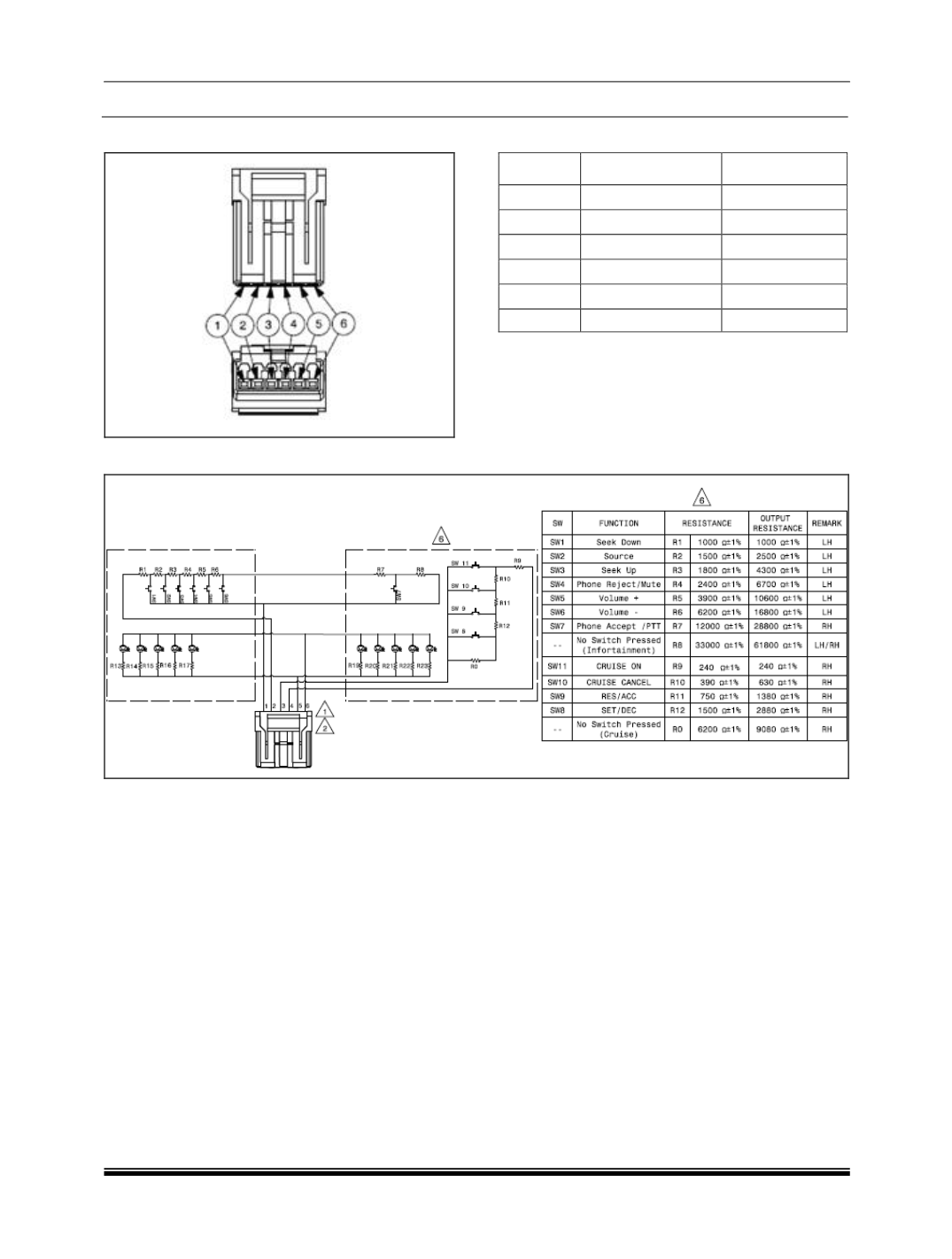

CONNECTOR DETAILS:

PIN OUT DETAILS:

PIN NO

DESCRIPTION

Color

1

ILL+

RED

2

ILL-

BLACK

3

CRUISE -

ORANGE

4

CRUISE +

PINK

5

INFOTAINMENT -

BLUE

6

INFOTAINMENT +

YELLOW

CONENCTION DETAILS:
