HEXA

ELECTRICAL

NOTE

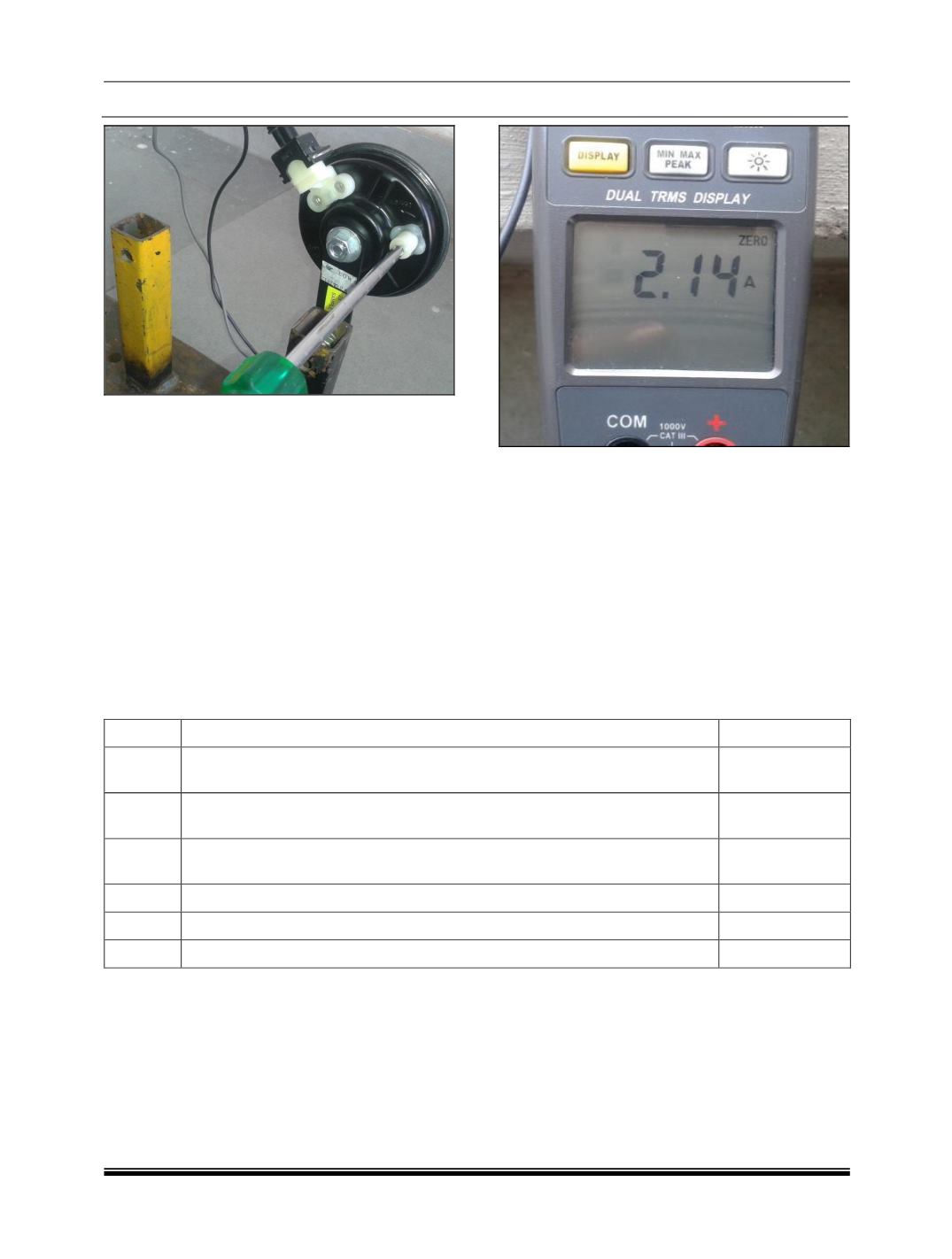

Ensure that the tuning Screw is rotated in the right

direction as indicated near by the Screw. Direction

of rotation is must to tune the Horn in right

direction.

h) Blow the Horn and check Current values.

Normal operating current of OK Horn is 1.8 A

to 3 A.

NOTE

A good Horn will draw around 1.8A to 3.0A current

during operation.

i) If after the above procedure, Tuning kit LED is

not glowing, there is some internal fault in the

Horn and it cannot be adjusted.

HORN REPLACEMENT

If the horn is not working, then declare the Horn as

not working. Replace the Horn as per warranty

policy.

Mandatory Points to be attached along with PCR copy

In case of Horn is replaced under warranty, then following information has to be attached with PCR copy

failing which Horn will be returned to same dealer and no claim will be settled.

Sr. No.

Details to be filled in the PCR copy

Actual Values

Horn terminal Voltage measured on Vehicle – As received Condition –

Refer Step-1 of flow chart

----- V DC

Wiring harness, Horn Pad, Ground Connection check results – As per Step-

1 to 3, Observation-2 and 3

Horn tuning screw adjusted or not – Step-6. LED glowing or not? Tick

appropriate

LED Glows / Not

Glows

Horn tuning screw adjusted or not – Step-6. Current Consumed by Horn

----- A DC

Current drawn by the replaced Horn (New Horn)

----- A DC

Input Voltage measured on Horn terminals (New Horn)

----- V DC
