BRAKES

37

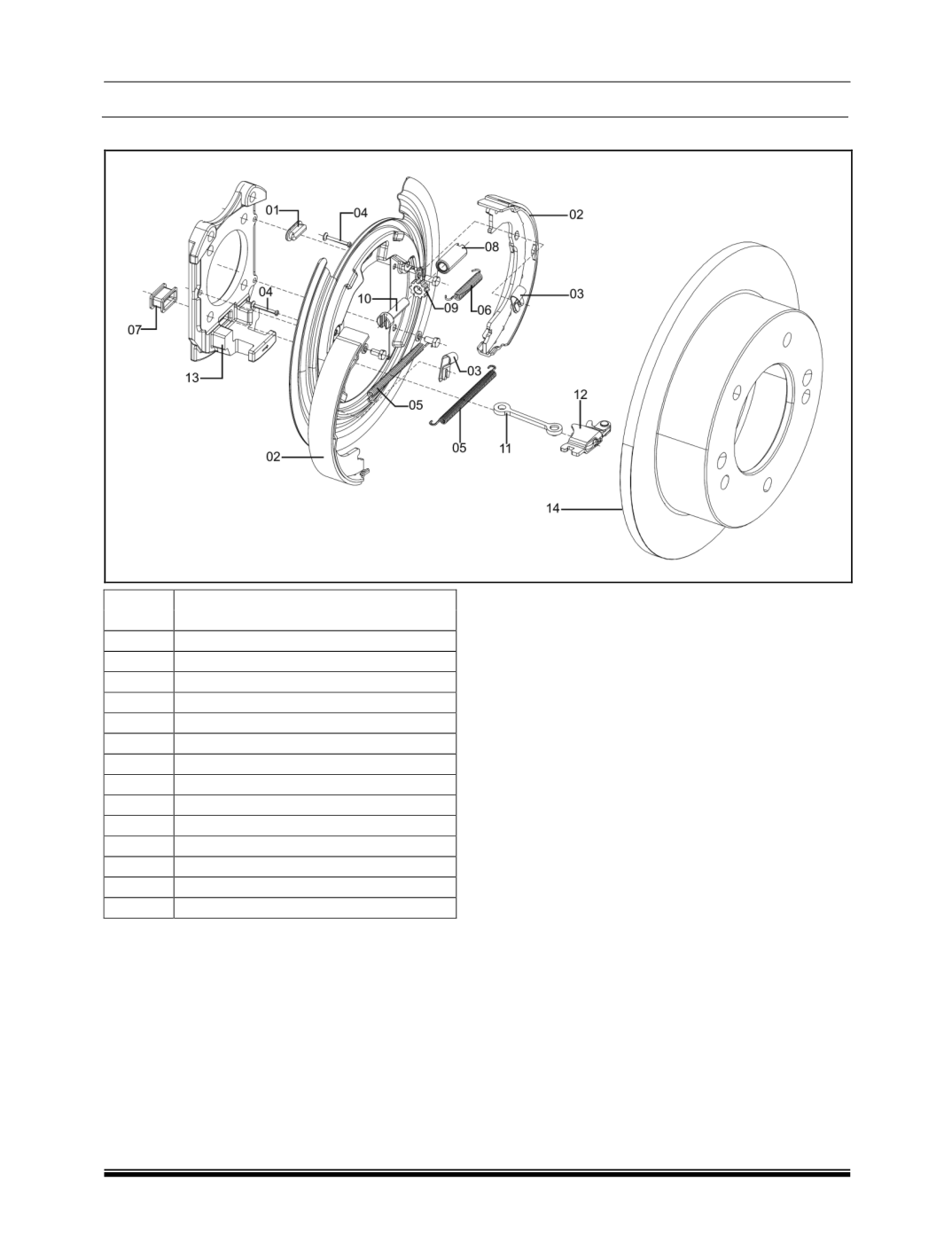

vii. PARKING BRAKE (DRUM IN HAT) :

SR. NO DESCRIPTION

1

Cover – Brake adjusting hole

2

Lined shoe assembly

3

Spring plate

4

Pin – shoe hold down

5

Shoe return spring – upper

6

Shoe return spring – adjuster

7

Boot

8

Socket – adjuster

9

Adjuster nut

10

Adjuster screw

11

Pull rod

12

Lever and strut assembly

13

Adaptor and shield assembly.

14

Drum in Hat
