BRAKES
29

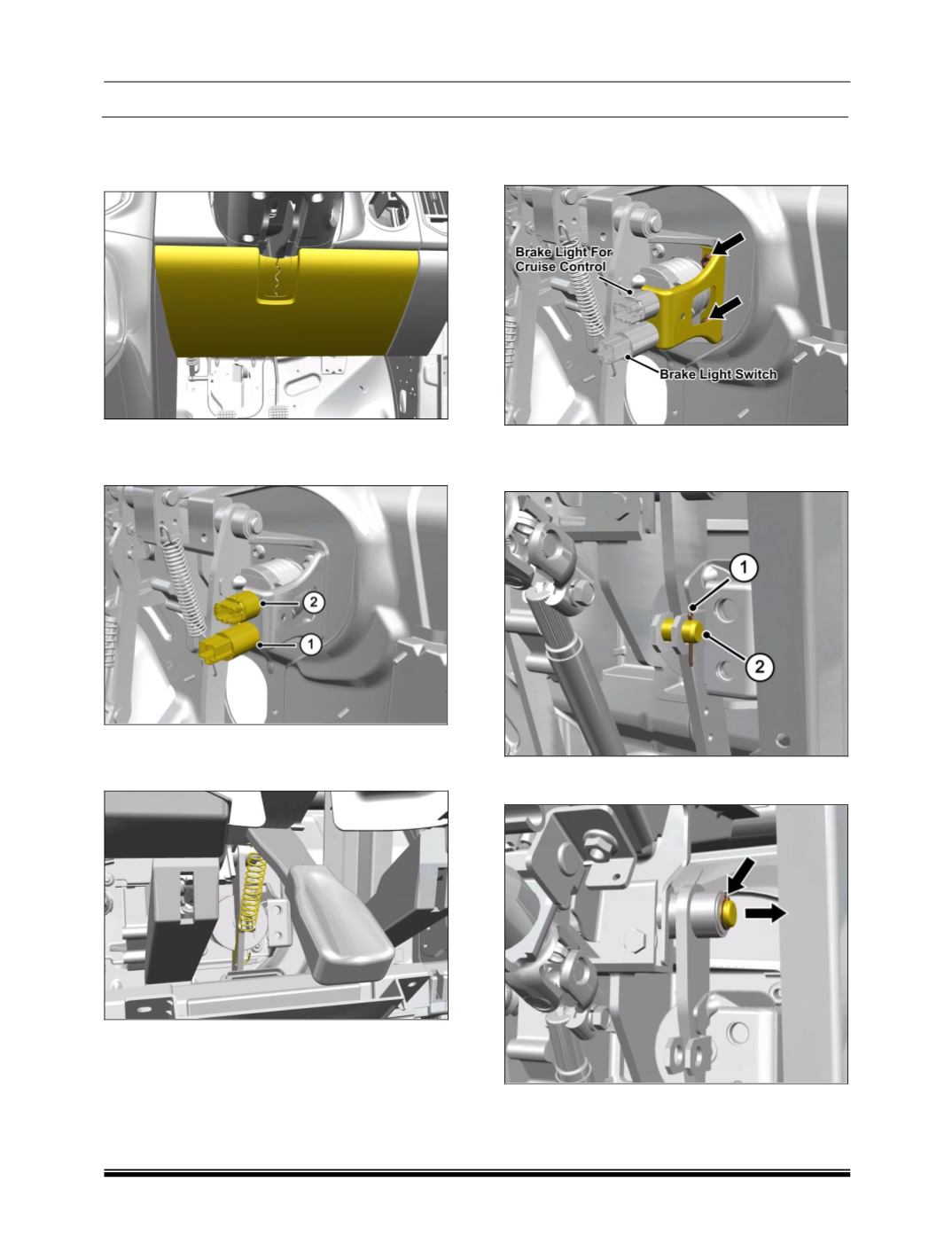

Removal :
1. Remove the lower cover of steering column.
(For procedure refer body section)
2. Disconnect electrical connections of brake
light switch (1) and brake switch for cruise
control (2) (If fitted)
3. Disconnect the brake pedal return spring from
steering column mounting bracket and
remove the same from the brake pedal.
4. Loosen and remove the mounting nuts and
take out the brake light switch mounting
bracket.
5. Remove the split pin (1) and take out the
clevis pin (2) and free the brake pedal from
the booster.
6. Remove external circlip from brake pedal and
take out the brake pedal assembly.
