BRAKES

25

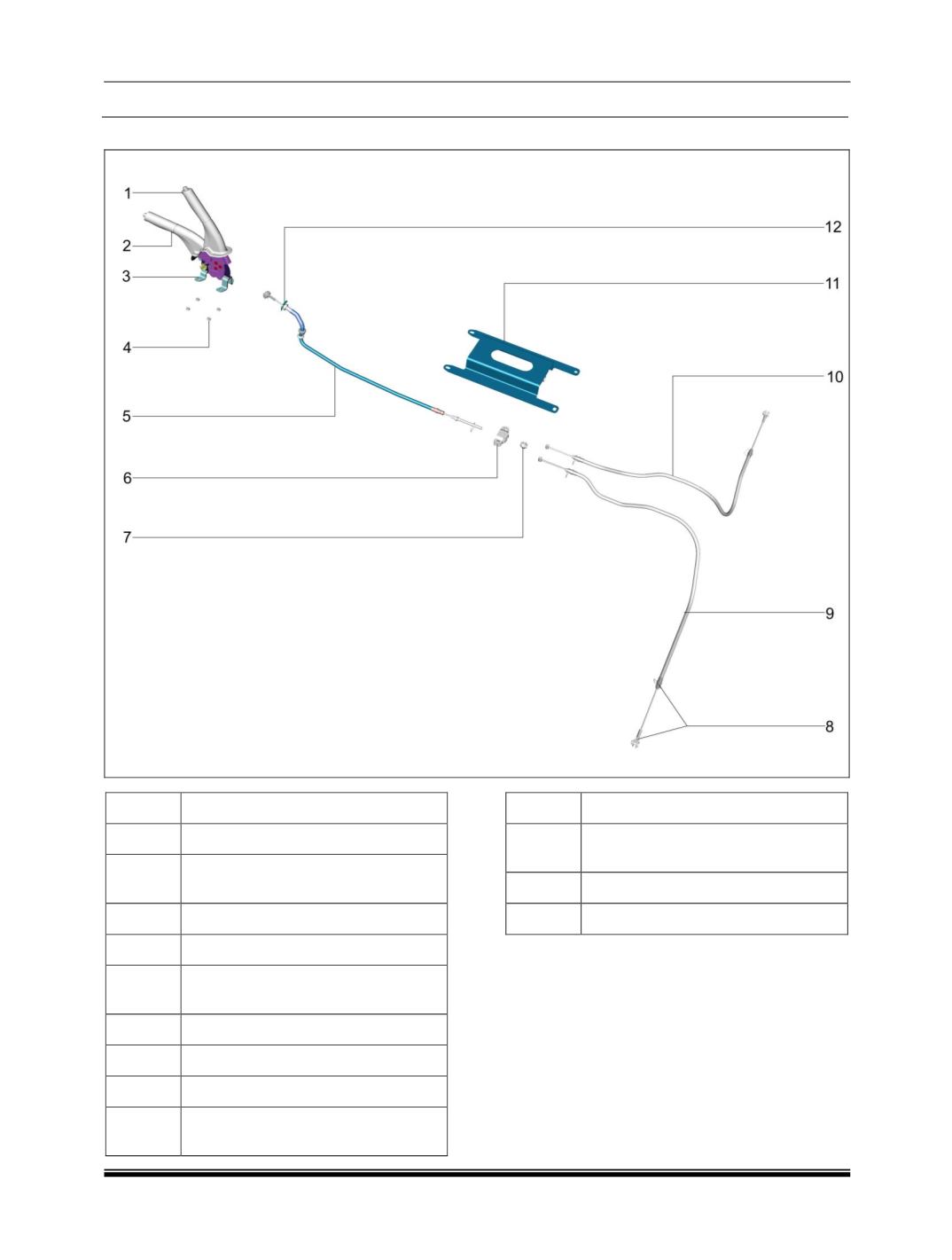

iii. PARKING BRAKE :

.

DESCRIPTION

1

Parking Brake Lever (Lock Position)

2

Parking Brake Lever (Release

Position)

3

Bracket

4

Mounting Nuts (Qty-4)

5

Parking Brake Cable Assembly

(Front)

6

Link

7

Spherical Nut

8

Hardwares

9

Assembly Parking Brake Cable

Rear LH

.

DESCRIPTION

10

Assembly Parking Brake Cable

Rear RH

11

Cable Mounting Holder Bracket

12

Clip
