HEXA

BRAKES

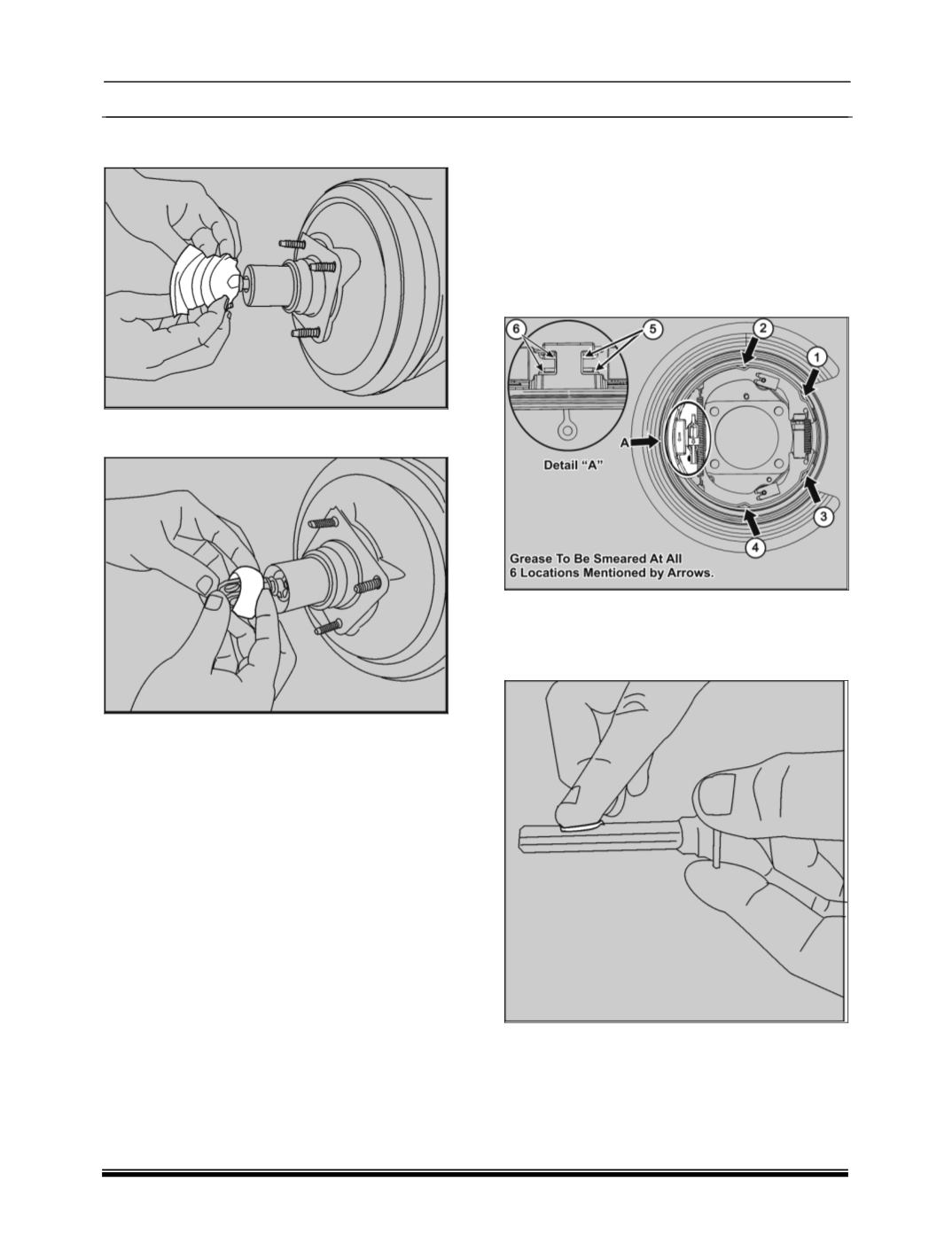

3. Pull out and remove the excluder from the

booster clevis.

4. Remove the filter cup from the booster

assembly.

INSPECTION :

Check the external filter, excluder and filter cup

for any cut, damage etc. If it is blocked do not

clean and reuse, replace it with new one.

Fitment :

For fitment follow reverse procedure of removal.

viii. GREASING :

Drum In Hat Shoe Lining Greasing :

1 Remove the rear brake disc.

(For procedure

refer brake disc removal process in this

section.)

2 A thin film of “Lithium Based Grease” to be

smeared at below given locations.

3 Clean the location where grease to be

applied. Keep grease away from shoe lining.

Caliper Greasing :

Loosen and remove the sliding pin and grease

them with the special grease which is provided for

brakes

NOTE :



Check the sliding pin boot for any cut or

damages. If any defect is found replace the

boot.
