BRAKES
22
5. Remove the caliper assembly along with the
carrier from the brake disc.
NOTE :
If only the caliper housing has to be removed.
Remove the caliper pads. (Refer caliper pad
replacement in regular maintenance)
Remove the upper sliding bolt and take out the
caliper housing. (Lower sliding bolt is already
taken out while removing the pads.)
Fitment :
For fitment follow the reverse procedure of
removal.
ii. BRAKE DISC :
Front Brake Disc Removal :
For front brake disc removal refer Front Axle
section.
Rear Brake Disc Removal :
1. Release the hand brake.
2. Check from rear back plate inspecting window
if the brake shoe has completely retracted if
not, retract the same using screw driver.
3. Position the vehicle on two post lift and
remove the wheel.
4. Remove caliper assembly.
(For procedure
refer caliper removal process in this section.)

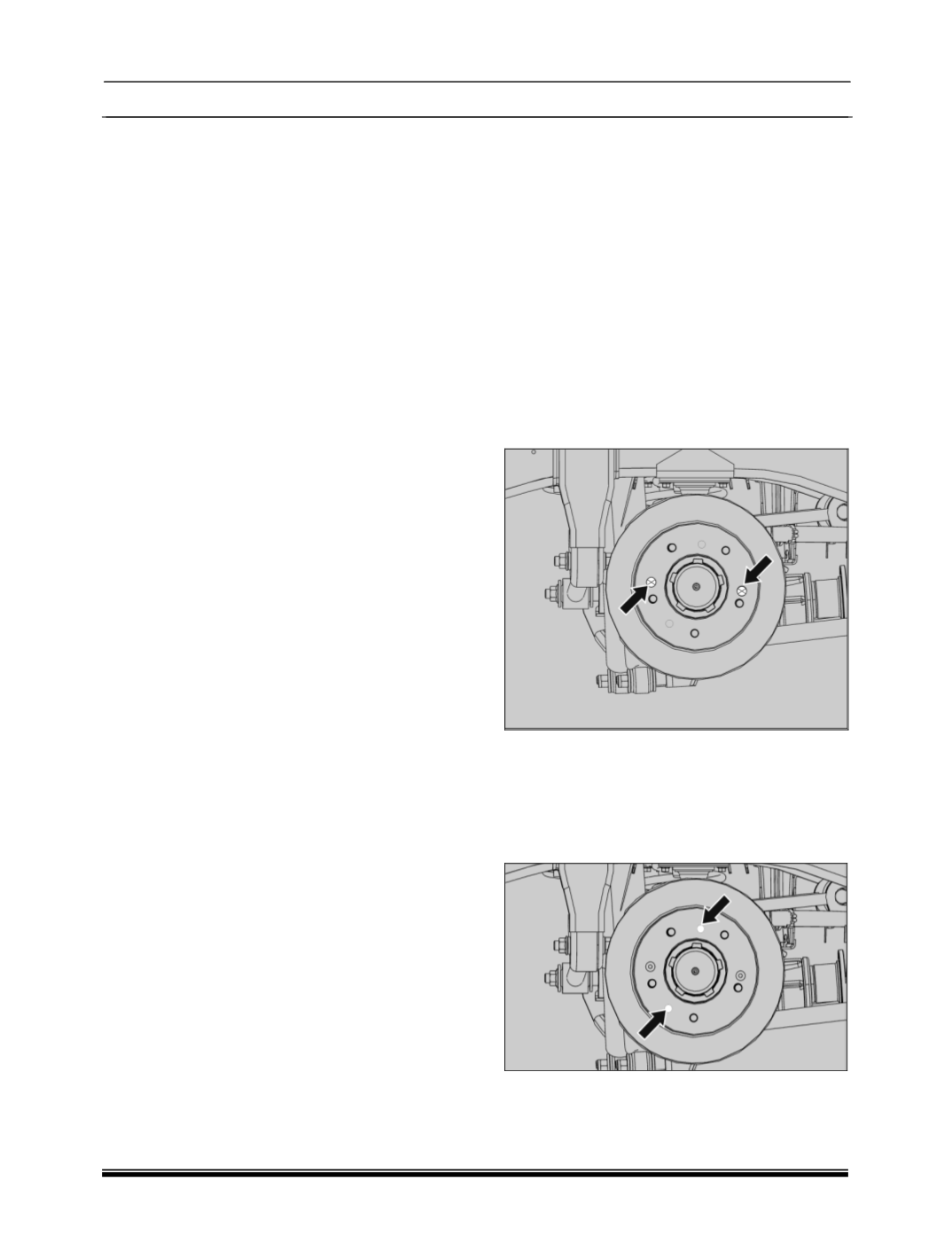

5. Loosen brake disc screws
(2 Nos.)
securing
brake disc to the hub.
6. Pull off the brake disc.
NOTE :
If the disc does not come out easily, insert
two screws in the holes provided on the disc.
Tighten both the screws simultaneously to
pull out the disc.
