FRONT AXLE (4X4)

12.3 MAINTENANCE

A. PRELIMINARY INSPECTION

1. Check for any physical damage to the front

axle beam.

2. Check for any damage to the rubber boot of

drive shaft.

B. REGULAR MAINTENANCE

I FRONT AXLE OIL REPLACEMENT

1. Lift the vehicle in the two post lift.

2. Remove the stone guard assembly.

(For

procedure refer stone guard removal

procedure in body section.)

3. Properly position and place the container

below the drain plug.

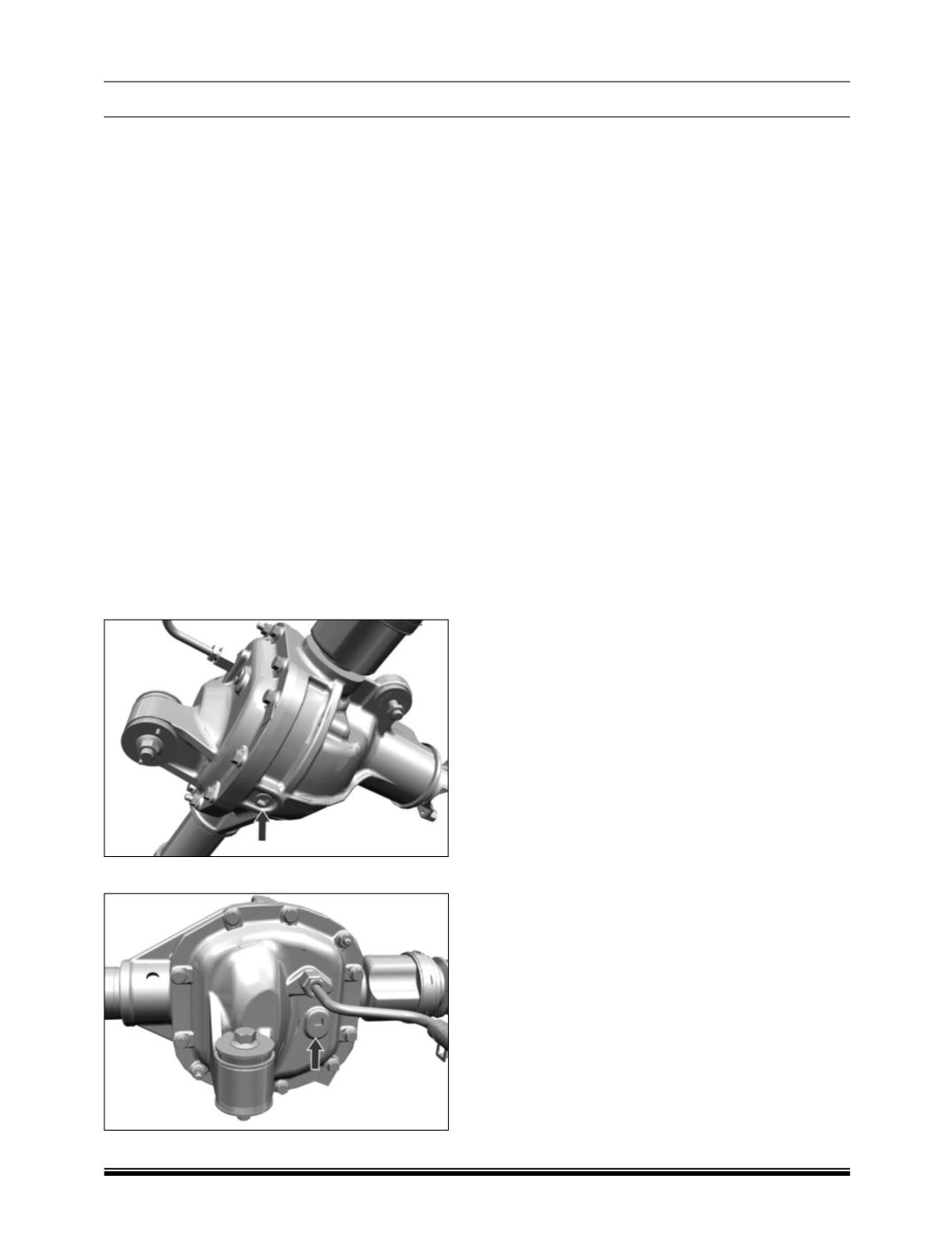

4. Loosen and remove the drain plug and drain

the front axle oil.

NOTE

Discard the drain plug and use new drain plug at

the time of assembly.

5. After complete draining, refit the new drain

plug and apply the specified torque.

6. Remove the filler plug and fill the front axle oil.

NOTE



Fill the front axle to the specified quantity of

1.2 liters.



Use only the specified grade of front axle oil.



Refit the new filler plug at the time of assembly

and apply the specified torque.

7. Fit the stone guard assembly.

II FRONT AXLE DISCONNECT MECHANISM

(FAD) CHECKING PROCEDURE

To check mechanically if the FAD is functioning

properly or not, follow the following procedure

1. Position the vehicle on a repair pit

(all four

wheels on ground),

switch ON the ignition and

keep the TOD ECU in 4x2 mode using the 4x2

switch on the fascia panel.

2. Rotate the front propeller shaft with hand, if the

shaft is freely rotating, then FAD is retracted/

disengaged; if not, there is some electrical or

mechanical failure in the system.

3. Keep the TOD in Auto mode wait until the LED

on the switch puts off.

4. Rotate the front propeller shaft with hand, it

should not rotate, if it is rotating then it is still in

disengaged or retracted condition, indicating

an electrical or mechanical malfunctioning of

the system.
