BODY
57

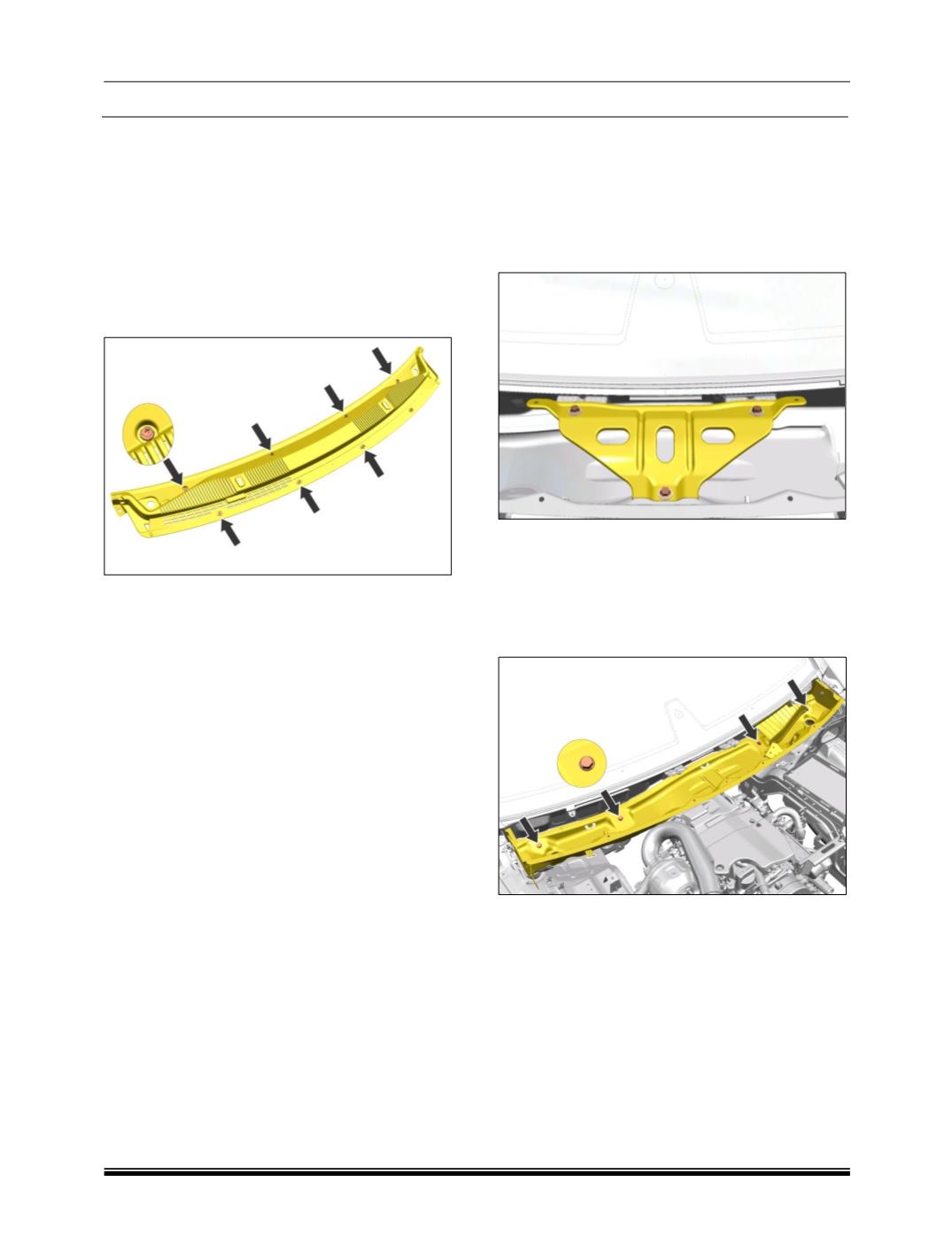

L. LEAF SCREEN:
REMOVAL:
1. Disconnect the negative terminal of battery.
2. Remove both side wiper arm and blade
assembly. (R
efer wiper arm and blade
assembly removal process
)
3. Loosen and remove 8 no. of mounting screws
of leaf screen.
4. Lift the leaf screen and disconnect the washer
hoses from the nozzles and remove hose
routing in the leaf screen.
5. Remove wiring harness routing from leaf
screen.
6. Take out the leaf screen assembly.
ASSEMBLY:
For assembly follow the reverse procedure of
removal.
M. PANEL ASSEMBLY:
REMOVAL:
1. Remove the leaf screen.
(For procedure refer
Leaf Screen removal process)
2. Remove the bracket panel wiper mounting top
by removing three mounting bolts.
3. Remove the wiper linkage.
(For procedure
refer wiper motor removal in Electrical
Section.)
4. Loosen and remove mounting bolts (4 Nos.)
and take out the panel assembly from the
vehicle.
ASSEMBLY:
For assembly follow the reverse procedure of
removal.
