HEXA

BODY

ASSEMBLY:

For assembly follow the reverse procedure of

removal.

III.

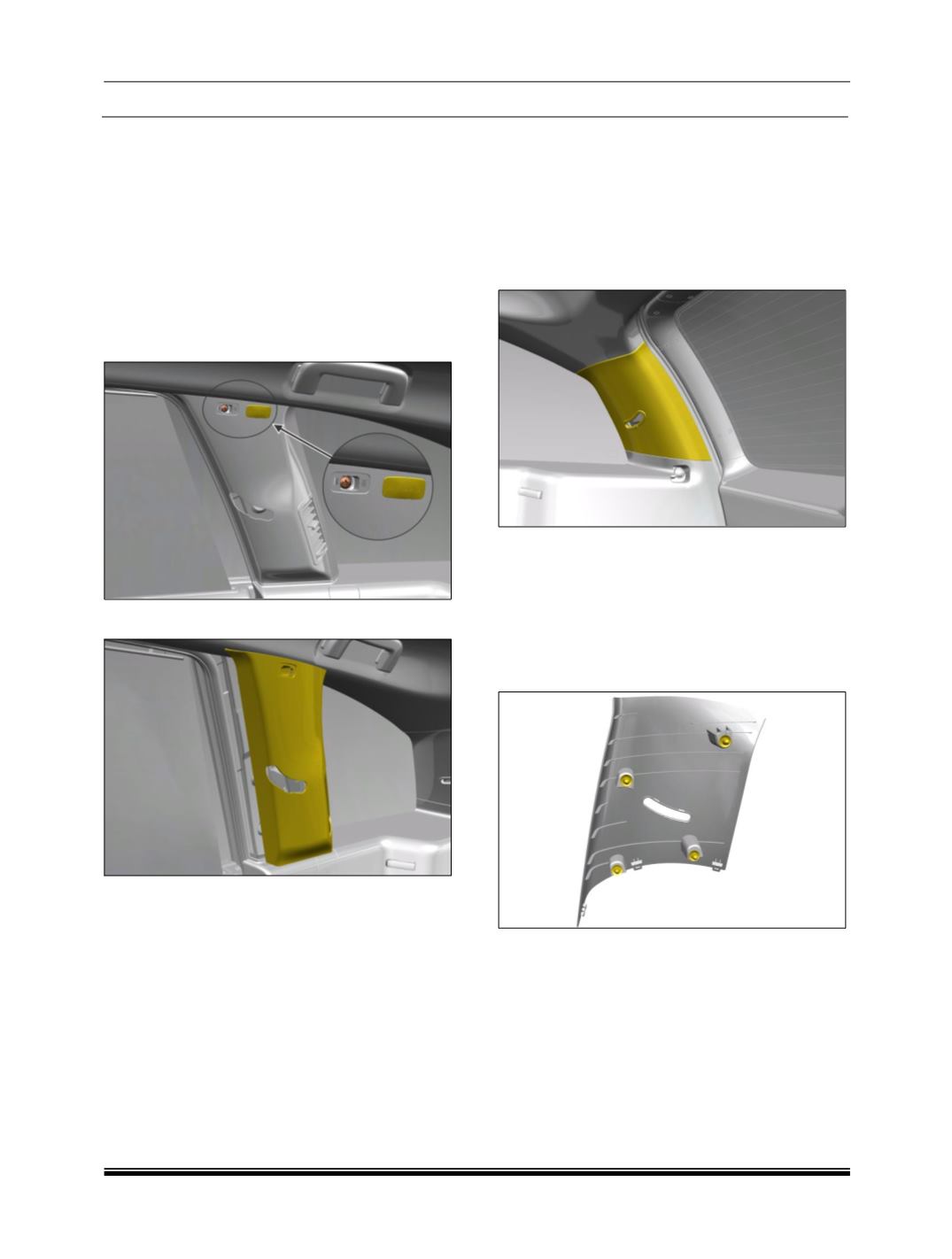

“C” PILLAR TRIM:

REMOVAL:

1. Remove the bottom mounting of second row

seat belt.

(For procedure refer seat belt

removal process.)

2. Remove the AIR BAG mascot cover from the

“C” pillar trim and remove the mounting screw.

3. Pull out the “C” pillar trim.

ASSEMBLY:

For assembly follow the reverse procedure of

removal.

IV.

“D” PILLAR TRIM:

REMOVAL:

1. Remove third row seat belt lower mounting.

(For procedure refer third row seat Belt

removal procedure.)

2. Pull out the “D” pillar trim and separate it from

the vehicle.

3. Remove seat belt bottom anchorage fastener

and take out seat assembly from “D” pillar trim

cutout.

NOTE:

While pulling D pillar trim, care should be taken

such that tree clip don’t get damage. Refer to the

location of images given below.

ASSEMBLY:

For assembly follow the reverse procedure of

removal.
