HEXA

ELECTRICAL

140

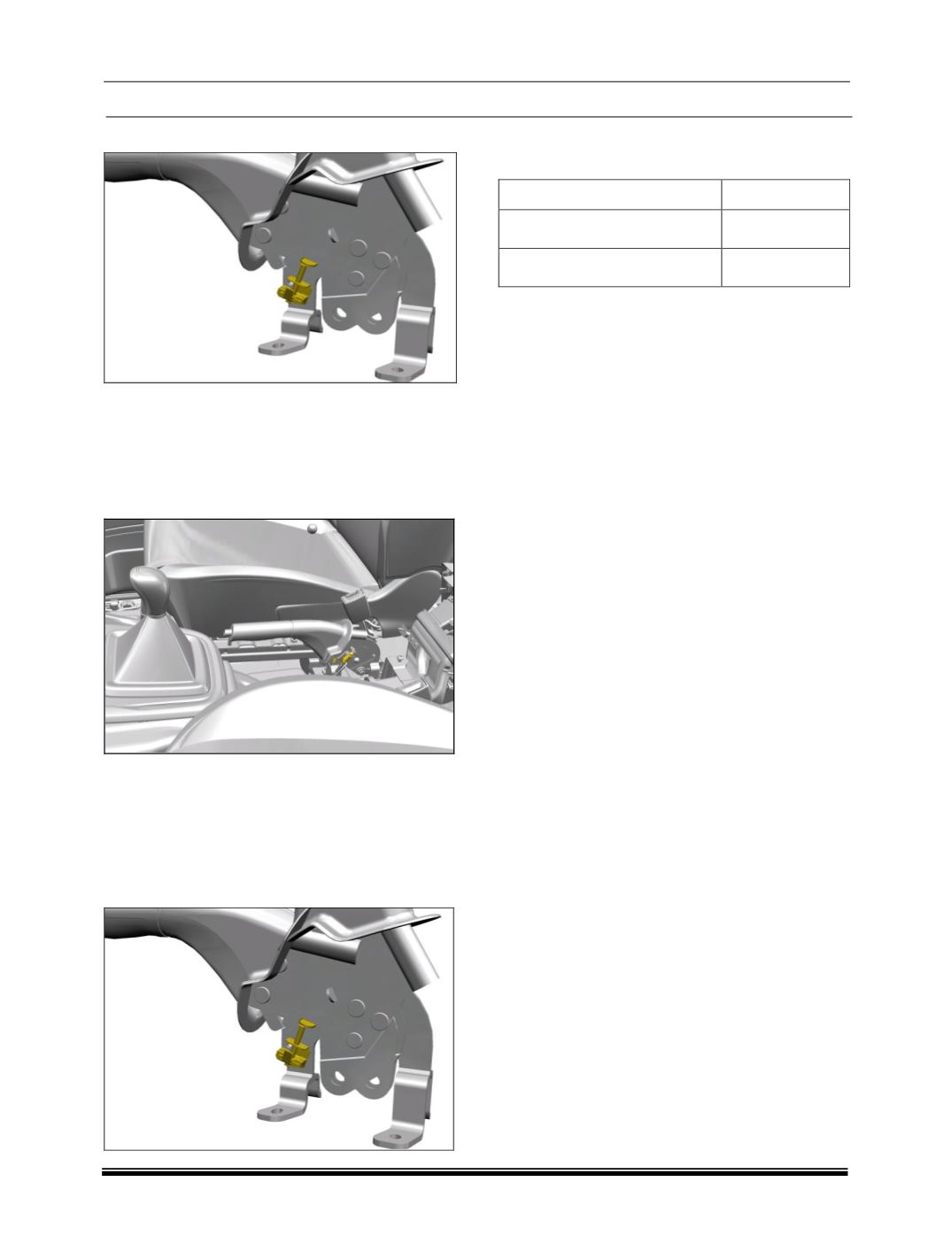

8.9.12 HAND BRAKE SWITCH

FUNCTION:

It gives signal to the instrument cluster regarding

the position of Hand brake Lever.

LOCATION:

It is fitted on parking brake

bracket.

REMOVAL

1. Remove the floor console.

(Refer Procedure

from Body Section)

2. Disconnect the electrical connection from hand

brake switch.

3. Pry out the hand brake switch.

INSPECTION:

Check switch for continuity.

CONDITION

SPECIFIED

OFF Position

(Parking brake released)

No continuity

ON Position

(Parking Brake lever pulled up)

Continuity

If checked result is not specified, replace switch.

REFITMENT:

1. Locate the switch on the hand brake lever

bracket and fit one mounting screw.

2. Connect the electrical connection to the switch.

3. Fit the floor console

(Refer Procedure from

Body Section).
