HEXA

FRONT AXLE (4X4)

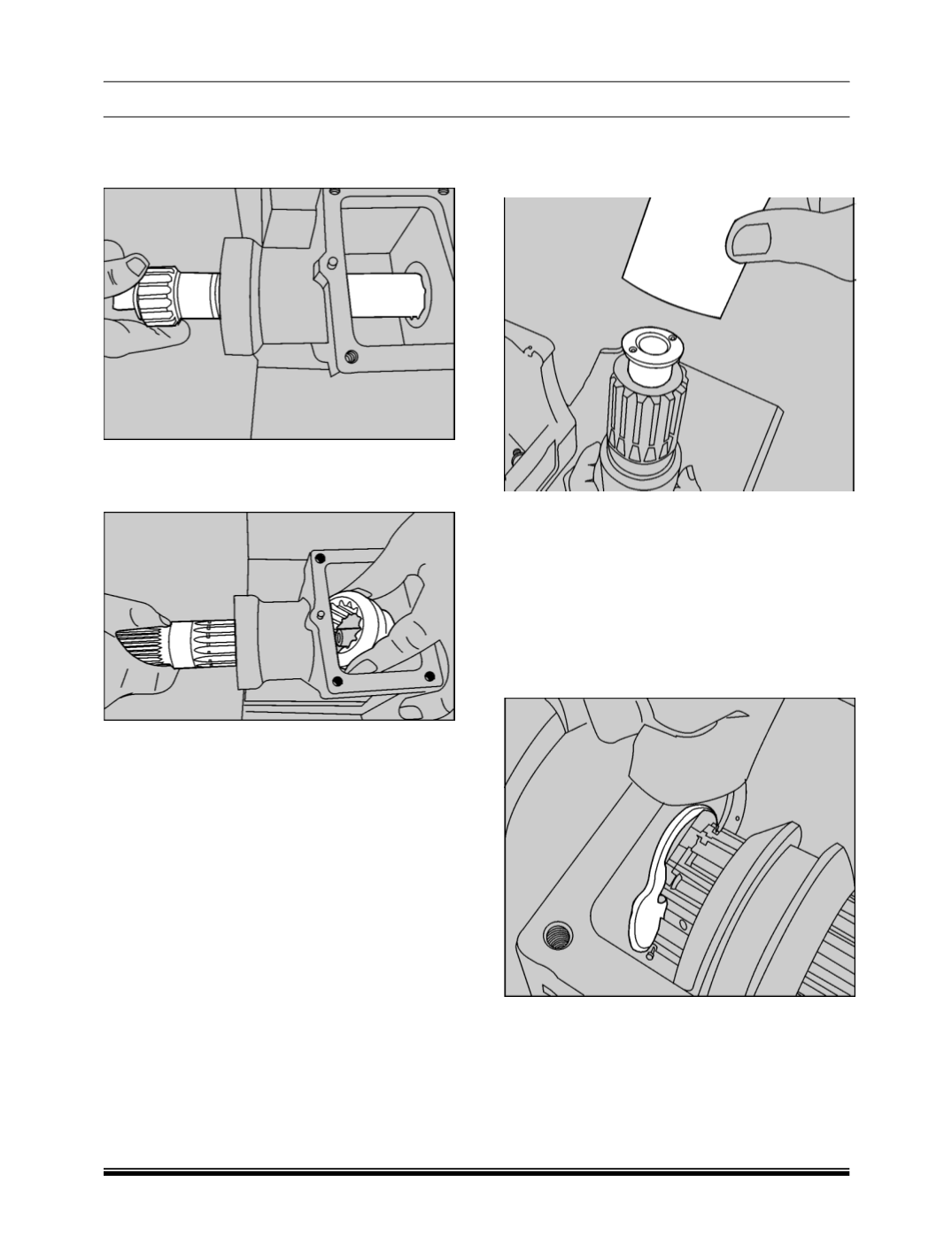

2. Clean the intermediate shaft. Insert and push

shaft in same shaft and direction used while

removal.

3. Install the shifter sleeve on the intermediate

shaft through disconnect housing window while

aligning with the splines on it.

NOTE

Shaft splines and shifter sleeve must be free from

foreign particles and burr

4. Install the synthetic bush in the bore of axle

shaft with the help of special tool

(Part

No.287058903308)

NOTE

The pressing force on the bush should not be too

high otherwise it can damage the bush.

5. Insert the Thrust washers in the sequence

opposite to removal in the disconnect housing

and insert the axle shaft through the bearing

from wheel end side of the disconnect housing.

6. Now install the circlip on the axle shaft with the

help of circlip pressing tool.
