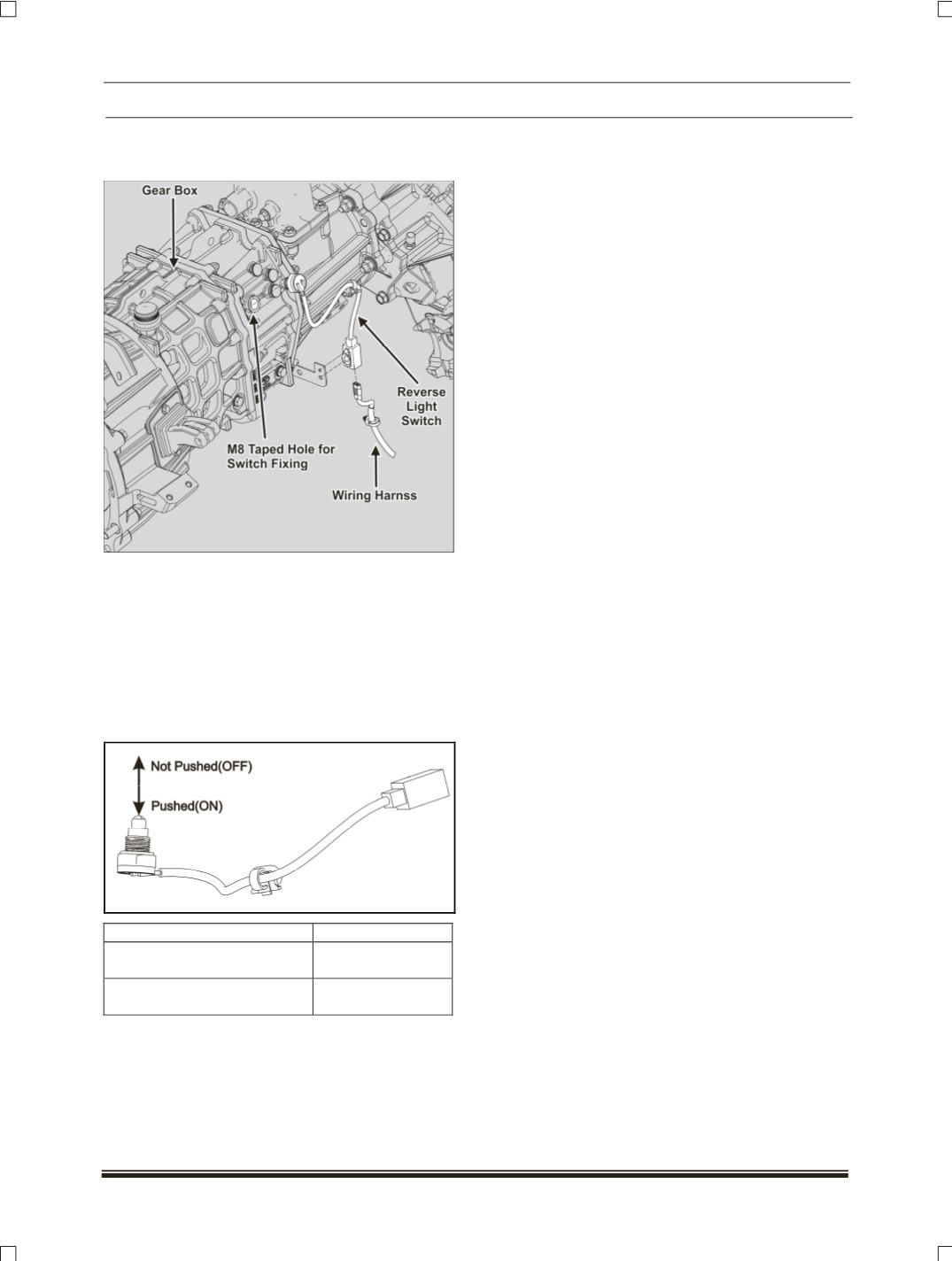

REMOVAL:

1.Disconnect the wiring harness connector.

2.Remove the pigtail clips from the bracket.

3.Loosen mounting nut and remove the reverse

light switch from taped hole and take out the

reverse light switch.

INSPECTION:

Test the switch with a Multimeter. Clip the probe

of the multimeter to switch terminal and check the

continuity.

CONDITION

SPECIFIED

Not Pushed(OFF) (Reverse

gear not applied)

No Continuity

Pushed(ON) (Reverse gear

applied)

continuity

If not as per specified condition, then replace the

switch.

FITMENT:

1.Align the reverse light switch to hole provided on

the gear box and tighten it.

Tightening torque – 4 ± 0.5 Kgm.

2.Fix the wiring harness by inserting the pigtail clip

into the bracket.

3.Connect the wiring harness.
