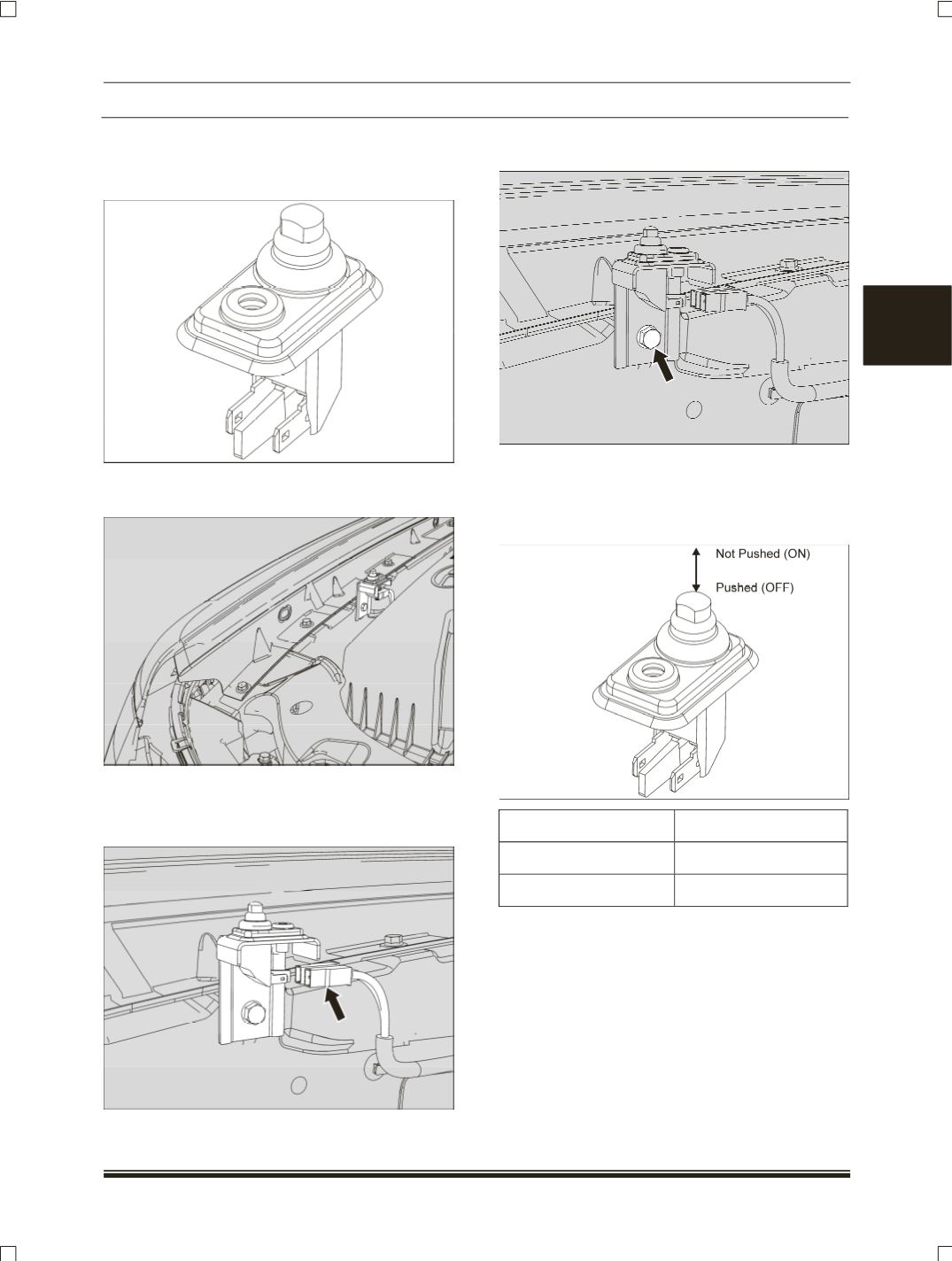

8.10.6 BONNET SWITCH
FUNCTION:
Bonnet switch is switched on or off in
response to opening and closing of bonnet.
LOCATION:
It is fitted on Assembly Panel w/house
outer RH.
REMOVAL:
1.Open the bonnet and disconnect the electrical
connection of bonnet switch.
2.Remove one mounting screw of bonnet switch
and take out the switch along with bracket.
INSPECTION:
Test the switch with a Multimeter. Clip the probe
of the multimeter to switch terminal and check the
continuity.
CONDITION
SPECIFIED
Not Pushed(ON)
Continuity
Pushed(OFF)
No continuity
If not as per specified condition, then replace the
switch.
REFITMENT:
1.Fit the bonnet switch on the bracket.
2.Tighten one mounting screw.
Tightening toque for screws – 0.95 Kgm
3.Connect the electrical connection to the bonnet
switch.
