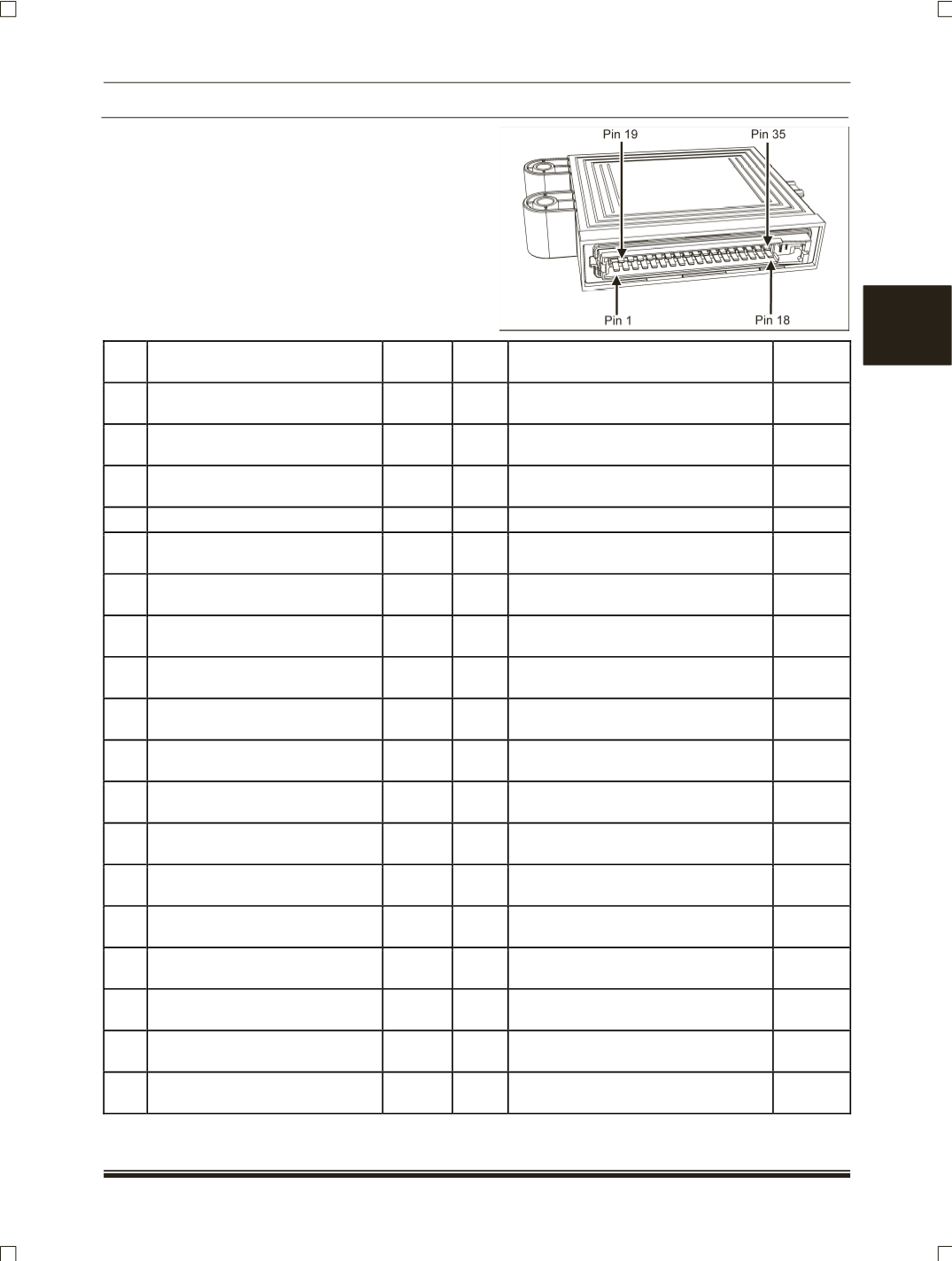

CONNECTOR DETAILS:
Window winding controller connector is having 35
pins.
For pin details refer below table
PINOUT DETAILS:
PIN
NO
DESCRIPTION
SIGNAL
TYPE
PIN
NO DESCRIPTION
SIGNAL
TYPE
1 Not Used
----
19 Ground 1 For Window Winding
Motor:
Output
2 BCM Input Signal To Window
Winding Controller.
Input
20 Rear RH Window Winding Motor
Connection
(Positive)
Output
3 K-Line
Output
21 Battery Supply For Co Driver Door
Window Winding Motor
Input
4 Ignition Input
Input
22 Not Used
----
5 Crank
Input
23 Rear RH Window Winding Motor
Connection
(Negative)
Output
6 Not Used
----
24 Rear LH Window Winding Motor
Connection
(Positive)
Output
7 Rear RH Door Window Auto
Down
Pulse
Input
25 Not Used
----
8 Not Used
----
26 Battery Supply For Driver Door
Window Winding Motor.
Input
9 Rear RH Door Window Manual
Up
Digital
Input
27 Rear RH Door Window Manual
Down
Digital
input
10 Rear LH Door Window Auto
Down
Digital
Input
28 Rear LH Window Winding Motor
Connection
(Negative)
Output
11 Rear LH Door Window Manual
Down
Digital
Input
29 Rear LH Door Window Manual Up
Pulse
input
12 Co-Driver Door Window Auto
Down
Pulse
Input
30 Co-Driver Window Winding Motor
Connection
(Positive)
Output
13 Co-Driver Door Window Manual
Down
Digital
Input
31 Battery Supply For Rear RH Door
Window Winding Motor
Input
14 Co-Driver Door Window Manual
Up
Digital
Input
32 Co-Driver Window Winding Motor
Connection (
Negative)
Output
15 Driver Door Window Auto Down Pulse
Input
33 Driver Window Winding Motor
Connection
(Positive)
Output
16 Driver Door Window Manual
Down
Digital
Input
34 Battery Supply For Rear LH Door
Window Winding Motor
Input
17 Driver Door Window Manual Up Digital
Input
35 Driver Window Winding Motor
Connection
(Negative)
Output
18 Ground 2 For Window Winding
Motor
Output
