ELECTRICAL
96
CHILD / WINDOW LOCK SWITCH:
In switch circuit, driver has an option to
disable the rear switches by locking the window
lock switch. The rear power windows operation is
disabled when the window lock switch of the
power window master switch is pressed (
LED
OFF
). The rear power windows operation is
enabled when the window lock switch is pressed
again (
LED ON
).
DRIVER WINDOW WINDING SWITCH:
Each window winding switch has four positions:
Off
Manual Up (
MU
)
Manual Down (
MD
)
Auto Down (
AD
)
For operational details refer window winding
controller section.

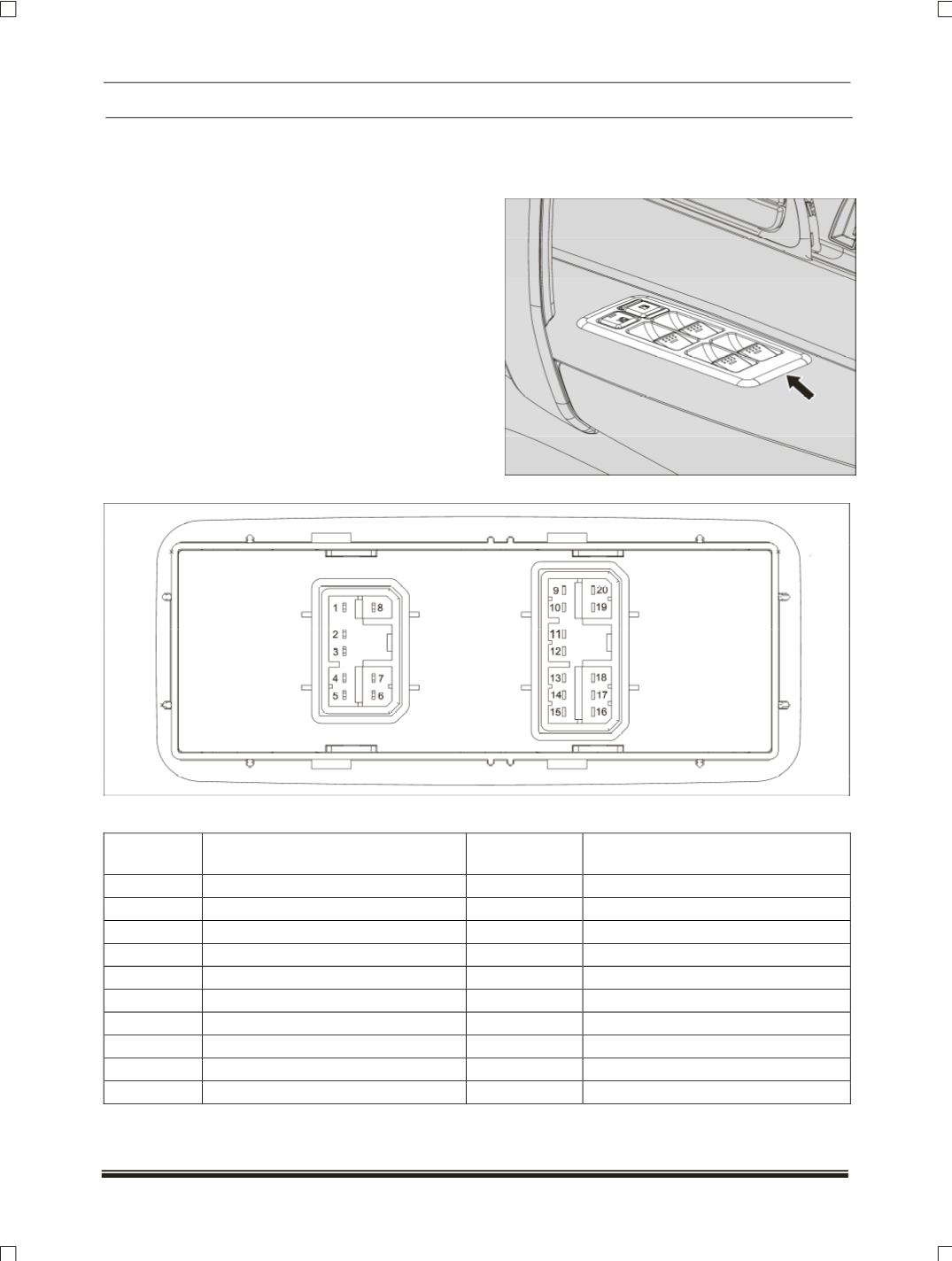

LOCATION:
This is located on driver door trim.
CONNECTOR DETAILS
:
PINOUT DETAILS:
SR.NO.DESCRIPTION
SR.NO.DESCRIPTION
1
Co-Driver Manual Down
( CO-DMD )
11
Empty
2
Illumination - ( ILL - )
12
Earth ( E )
3
Fuel Lid
13
Illumination + ( ILL + )
4
Driver Manual Down ( DMD )
14
Window Lock Switch Indicator
5
Driver Manual Up ( DMU )
15
Rear Right Manual Up ( RRMU )
6
Driver Auto Down ( DAD )
16
Rear Right Auto Down ( RRAD )
7
Co-driver Manual Up
(CO-DMU)
17
Empty
8
Co-driver Auto UP
( CO-DAD )
18
Rear Right Manual Down ( RRMD )
9
Rear Left Manual Up ( RLMU )
19
Rear Left Auto Down ( RLAD )
10
Window Lock
20
Rear Left Manual Down ( RLMD )
