ELECTRICAL

97

ELECTRICAL

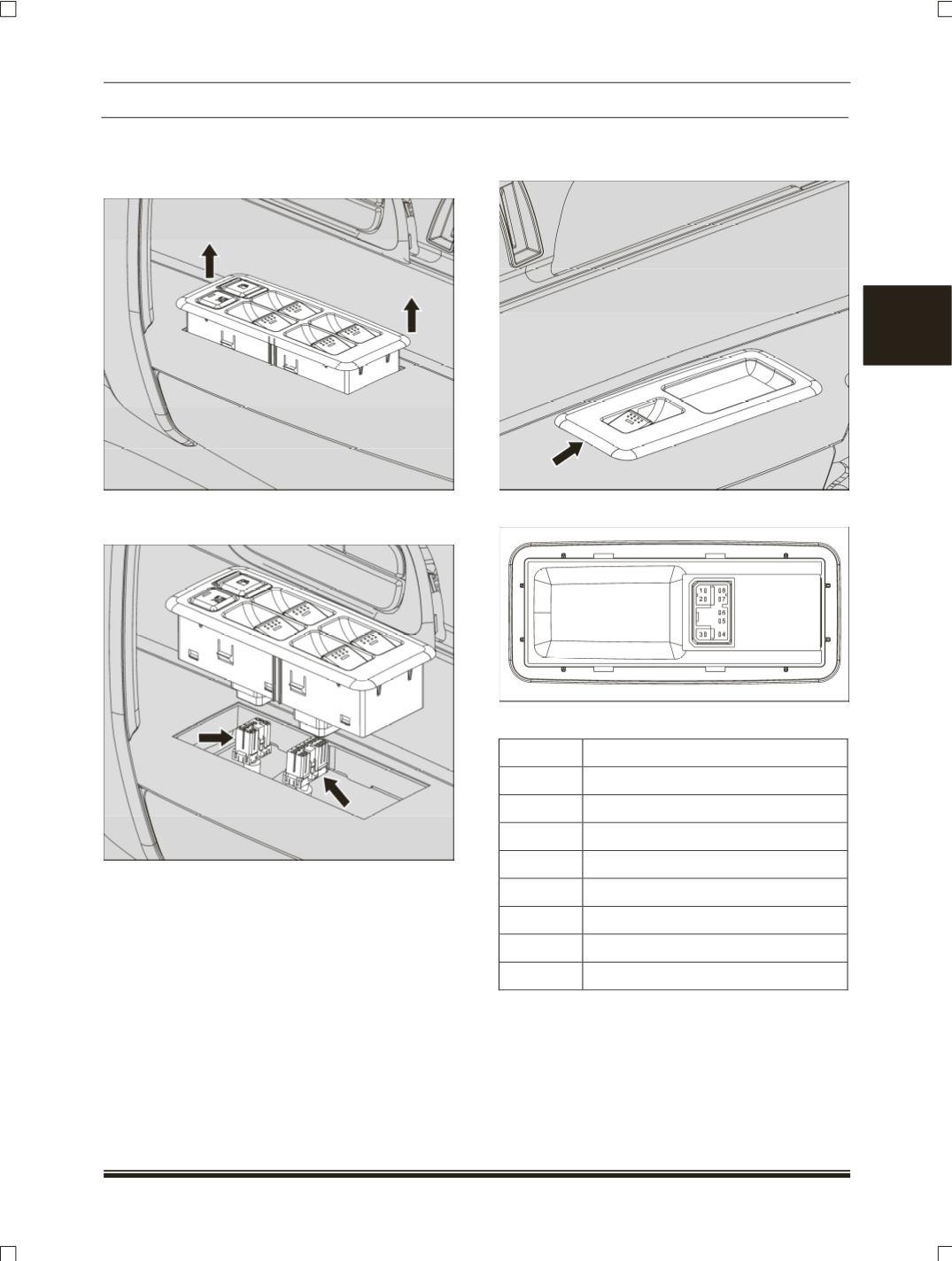

REMOVAL:

1. Pry out the Driver window winding switch from

armrest assembly

.

2. Disconnect the electrical connection of window

winding switch.

3. Take out the Driver window winding switch.

REFITMENT:

Follow the reverse procedure for the fitment

.

CO-DRIVER WINDOW WINDING SWITCH:

LOCATION:

This is located on LH front door trim.

CONNECTOR DETAILS

:

PINOUT DETAILS:

DESCRIPTION

1

Illumination + ( ILL + )

2

Illumination - ( ILL - )

3

Empty

4

Auto Down ( AD )

5

Manual Up ( MU )

6

Empty

7

Manual Down ( MD )

8

Earth
