SAFARI STORME MY14

TRANSFER CASE

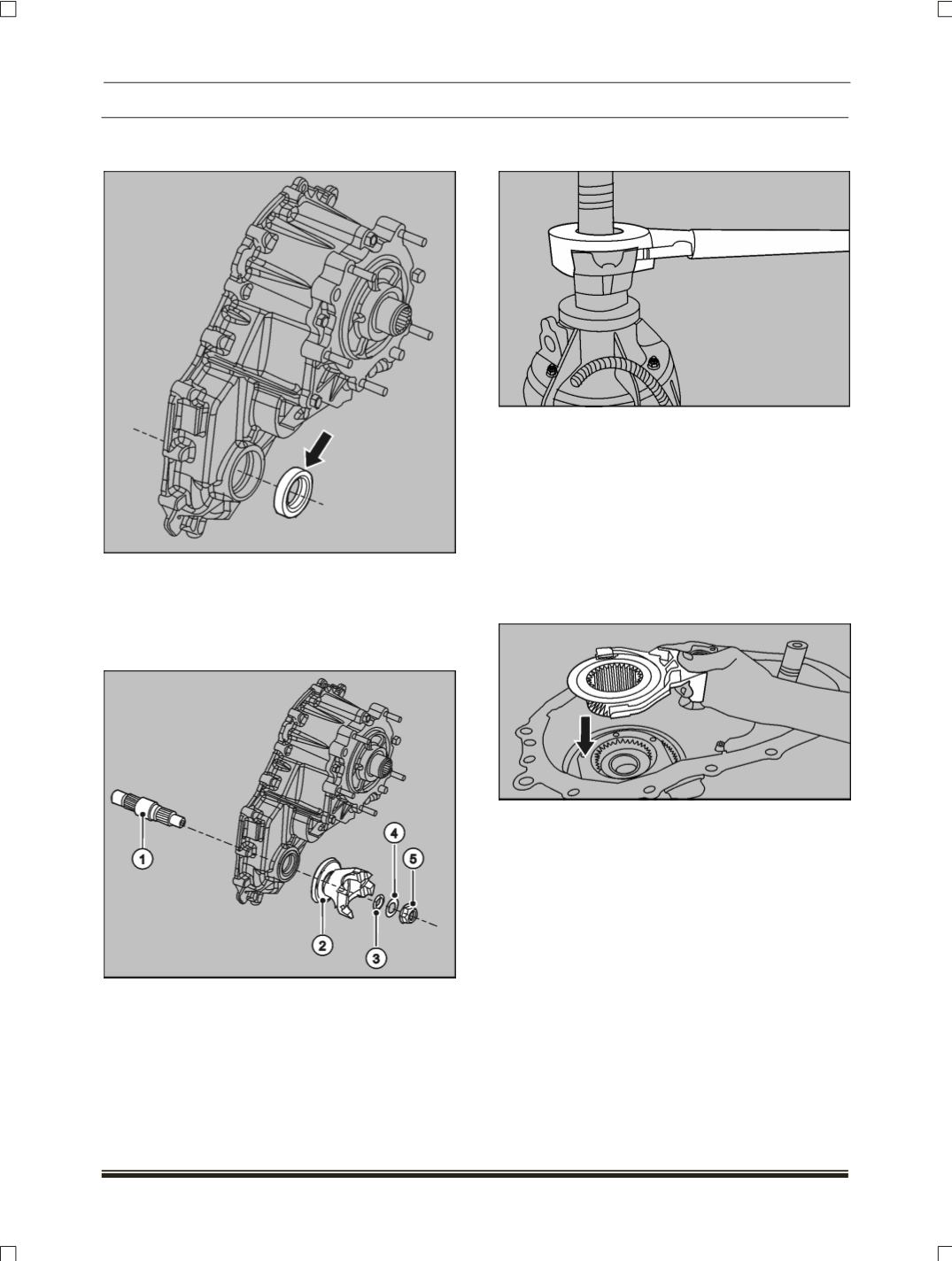

3. Install the new oil seal, by pressing it into the

case.

4. Make sure that all parts are correctly and firmly

installed into the case.

5. Position the output shaft

(1)

in transfer case

and install the end yoke assembly

(2)

, oil seal

(3)

, washer

(4)

and nut

(5)

6. Holding the end yoke with the help of yoke

holder, tighten the nut.

NOTE

Apply the torque as given in the tightening torque

table.

7. Invert the case assembly on the rework fixture

for further assembly.

C. ASSEMBLY OF REDUCTION SHIFT

ASSEMBLY

1. Assemble the reduction hub and reduction fork

assembly to the case.
