HVAC
58

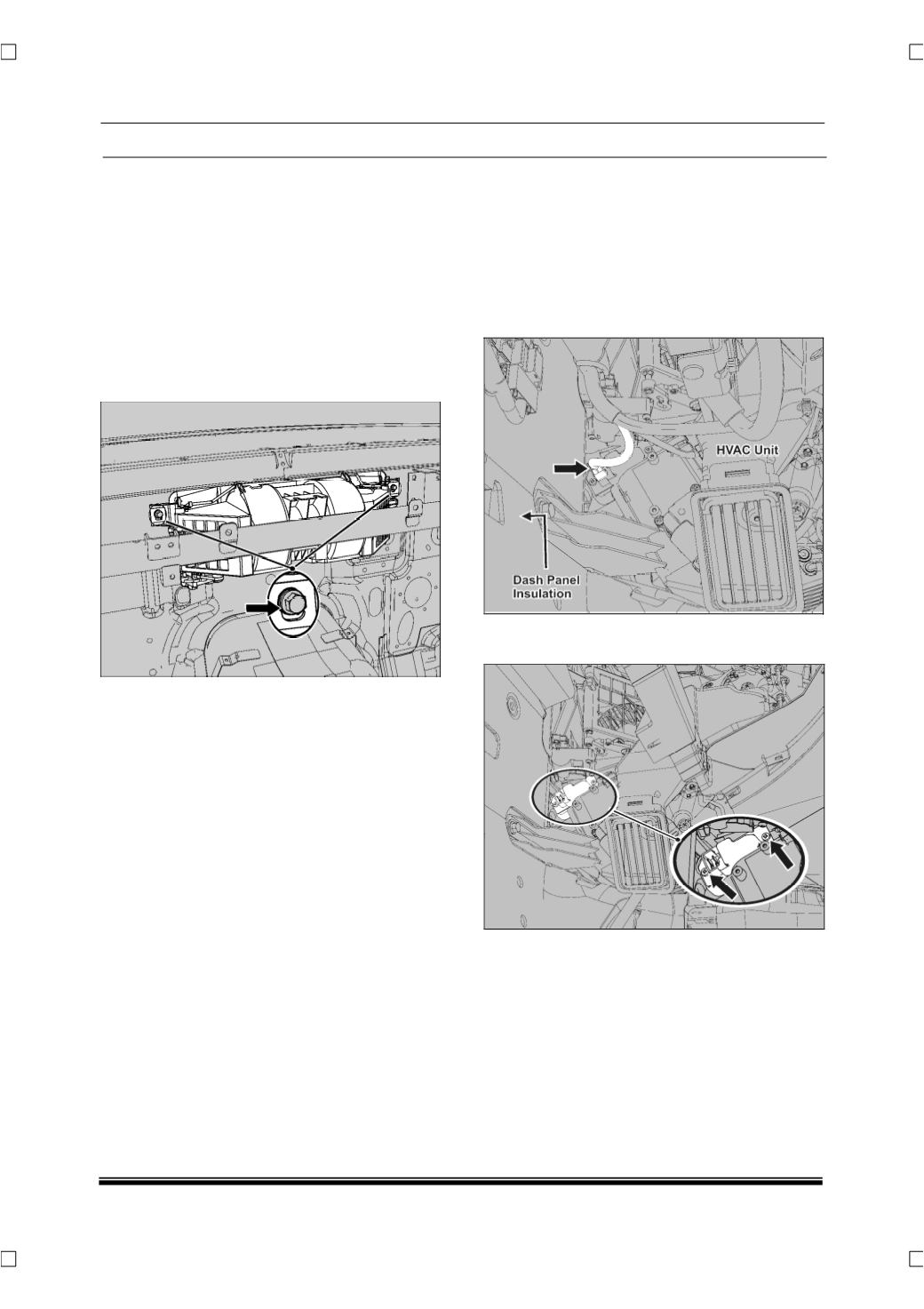

10.3.6 BLOWER
(FRONT HVAC UNIT)
REMOVAL
1. Remove dashboard. (
For procedure refer dash-
board removal procedure in Body section.)
2. Remove front HVAC unit.
(For procedure refer
front HVAC unit removal procedure in this sec-
tion.)
3. Disconnect electrical connections.
4. Loosen and remove two mounting bolts as shown
below.
5. Pull the blower assembly in upward direction and
separate the same from vehicle.
FITMENT
For fitment follow the reverse procedure of removal
10.3.7 BLOWER CONTROL MODULE
REMOVAL
1. Remove hush panel
(for procedure refer the hush
panel removal procedure in body section).
2. Remove glove box assembly
(for procedure refer
glove box removal procedure in body section.)
3. Disconnect electrical connection
.
4. Loosen & remove screw of blower control mod-
ule.
5. Take out blower blower control module
(3).
FITMENT
For fitment follow reverse procedure of removal.
