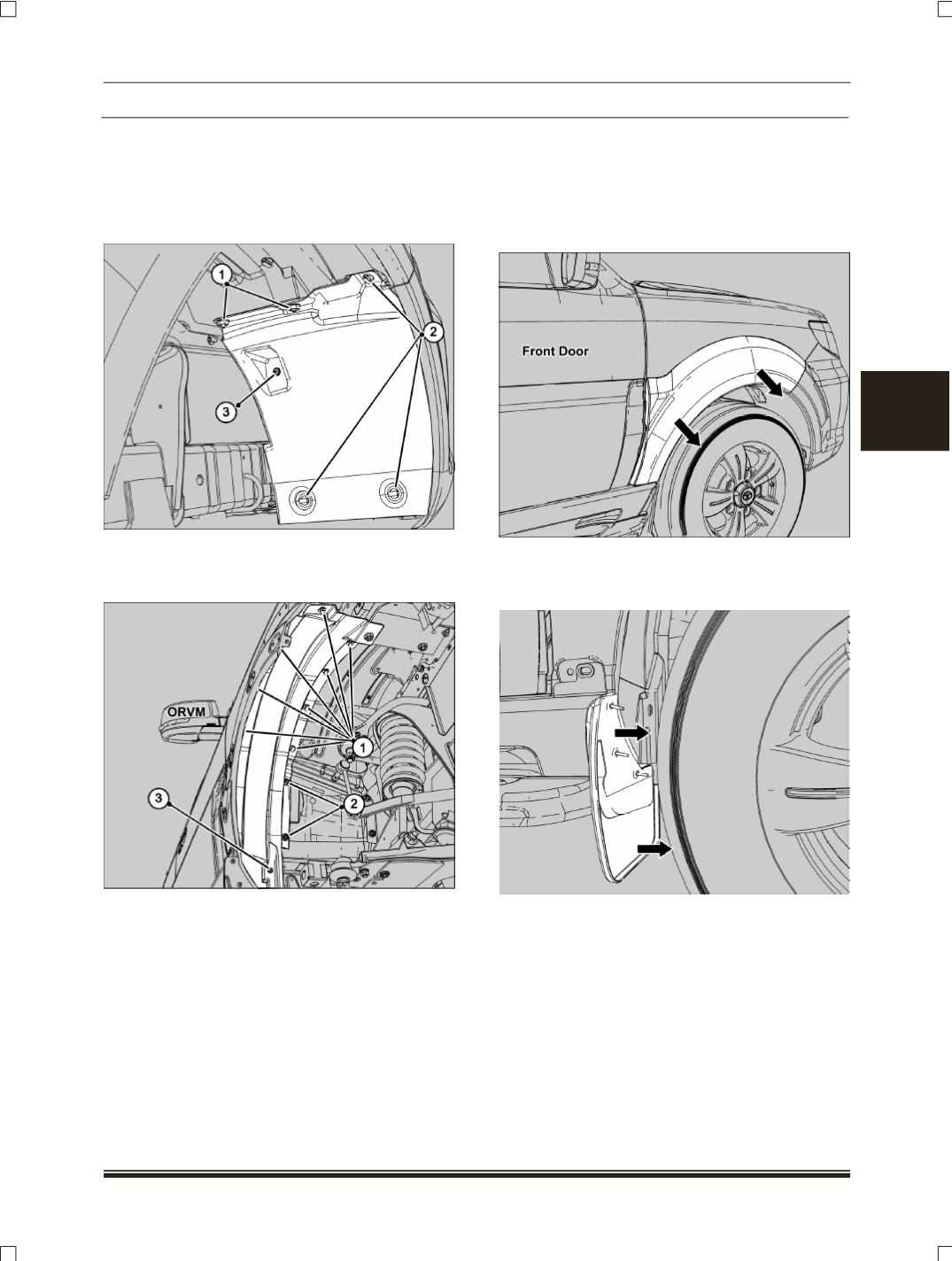

9.2.44 FRONT WHEEL ARCH COVER
REMOVAL
1. Remove the plastic nut (1)(2 Nos.) and clips
(2)(4 Nos.) and one mounting screw(3).then
take out the front mud guard
2. Remove mounting clips (1).(8 Nos.) then plastic
nut (2) (2 Nos.) and one screw (3) and take out
the front wheel cover
FITMENT
For fitment follow reverse procedure of removal.
NOTE
Properly locate the front wheel arch cover on the
fender.
9.2.45 SILL FINISHER
REMOVAL
1. Remove side foot step
(For procedure refer
side foot step removal procedure in this section
)
2. Pull out front fender side moulding assembly.
3. Loosen and remove one mounting from below
and then 3 mounting facing the tire side and
take out mud flap.
