SAFARI STORME MY14

BODY

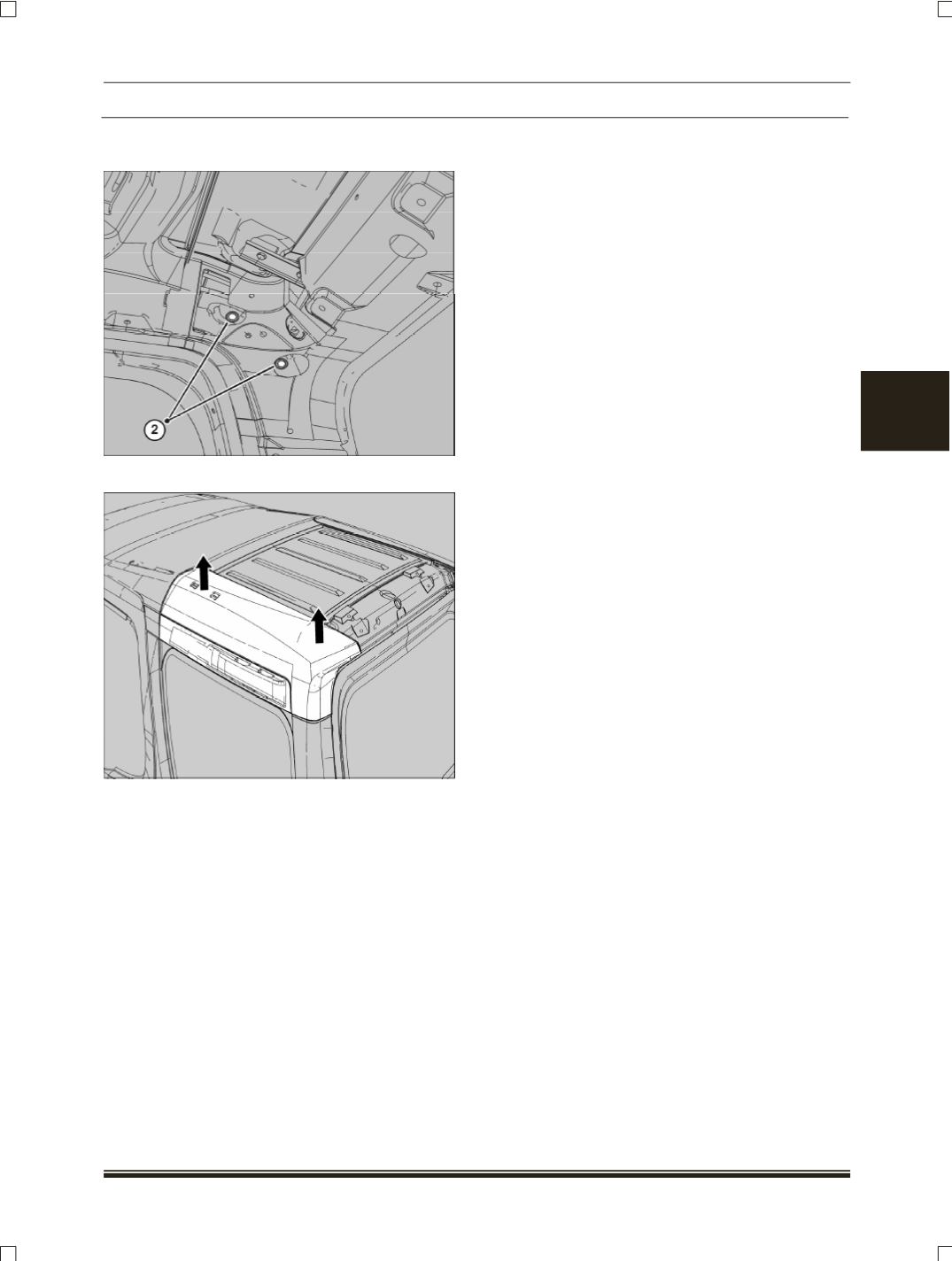

9. Loosen and remove two mounting bolt (2) from

corner.

10. Pull out tie down bar assembly from outside.

FITMENT

For fitment follow reverse procedure of removal

9.3 BODY REPAIR

In case of minor collision, body shell can be

repaired by use of the recommended body collision

repair fixtures. The dimensions given in this group

should be measured and corrected only on the

fixture. Use proper measuring tools for measuring

point to point dimension given in the sketches.

NOTE

Repairs done without use of proper fixture and

procedure could adversely affect the performance

of vehicle

PRECAUTIONS

Following precaution to be taken while performing

any repair work on body shell:

Safely support the vehicle before any work. Block

the front or rear wheel if the vehicle is not lifted off

the ground.

Disconnect the battery negative (-) terminal before

performing any work on the vehicle.

Put protection cap or remove the fuel tank while

working on the rear section of the vehicle.

Ensure proper ventilation of the working area.

Some paint and sealant can generate toxic gases

when heated.

Cover interior with heat resistant material to ensure

safety while performing welding operations.
