BODY
71
BODY

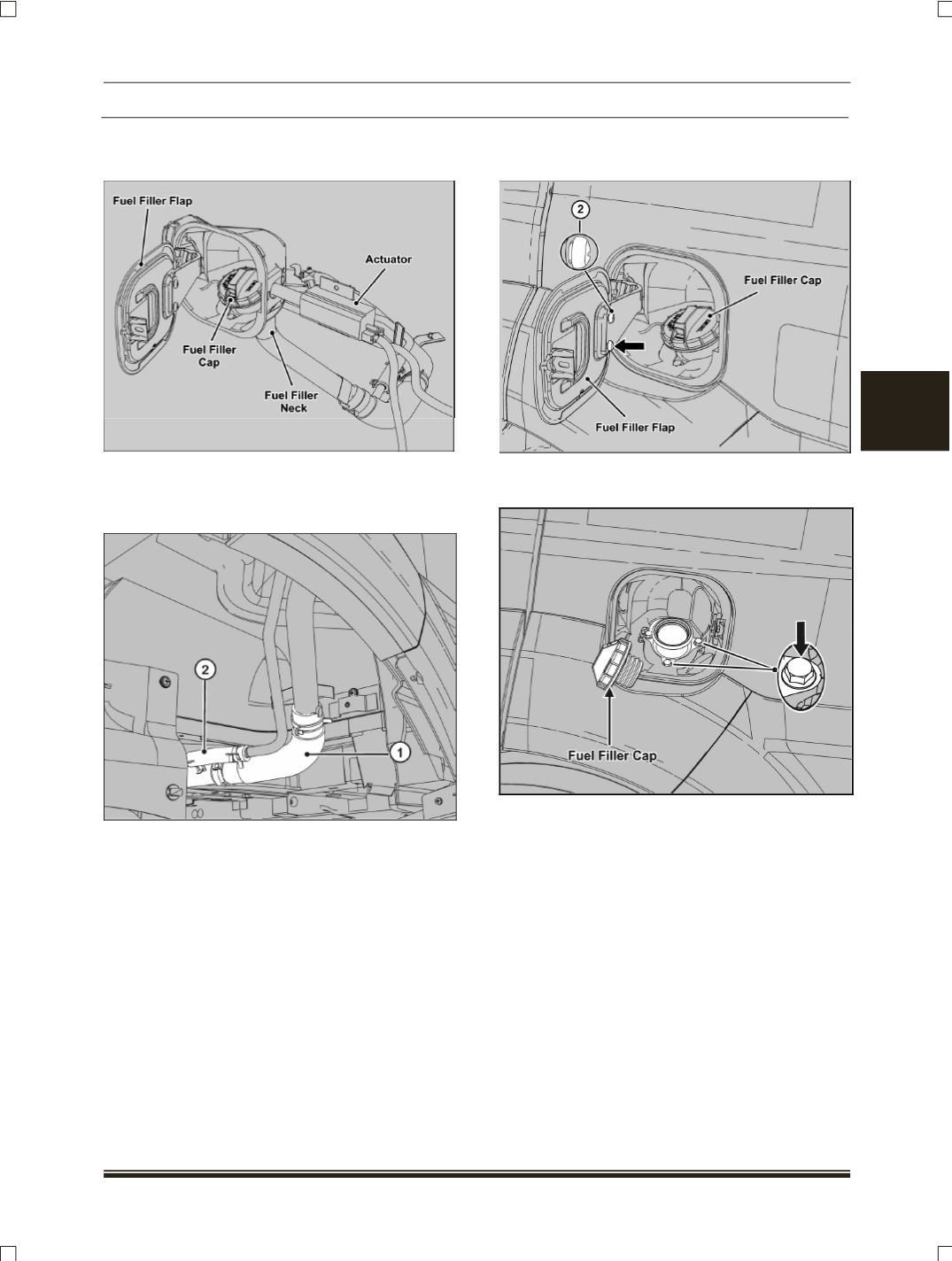

FUEL FILLER ASSEMBLY
REMOVAL
1. Open fuel filler door.
2. Remove spring two clamps and take out filler
hose (1) and breather hose (2).
3. Loosen and remove 2 mounting screw and take
out fuel filler flap.
4. Remove fuel cap and loosen and remove three
mounting bolts of fuel filler mounting bracket.
5. Take out fuel filler neck assembly from bottom
side
FITTMENT
For fitment follow the reverse procedure of removal
