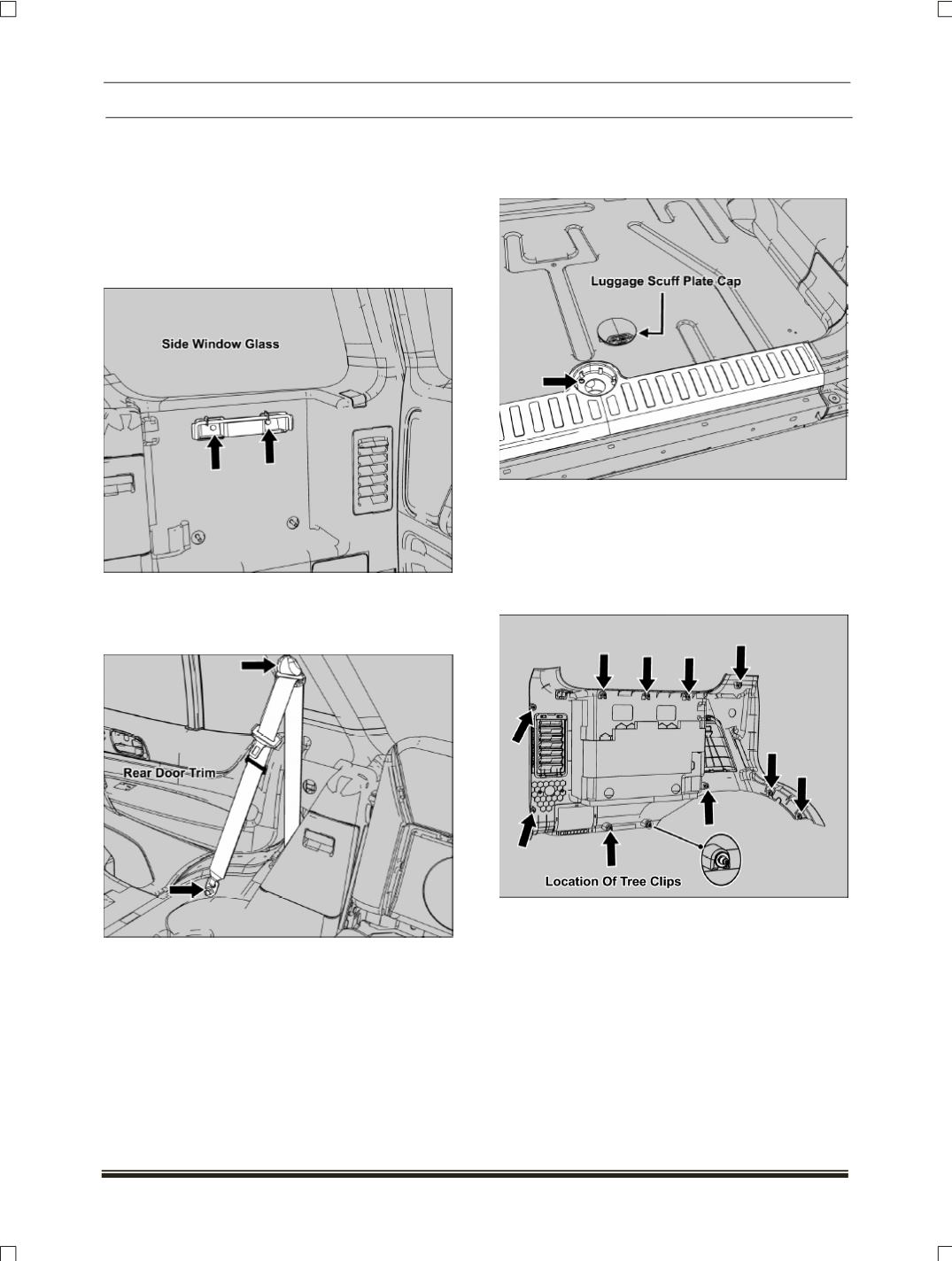

9.2.32 REAR QUARTER TRIM

REMOVAL

1. Remove third row seat

(For procedure refer

third row seat removal procedure in this

section.)

2. Loosen and remove the hanging bracket of third

row seat and take out the same.

3. Tilt second row seat to access the trim end.

4. Remove two mounting bolts of second row seat

belt.

5. Remove “C” pillar trim

(For procedure refer “C”

pillar removal procedure in this section.)

6. Remove “D” pillar trim

(For procedure refer “D”

pillar removal procedure in this section.)

7. Pull out the luggage scuff plate cap to access

the mounting screw then loosen and remove

the screw and pry out the luggage scuff plate.

8. Pull out the rear quarter trim and separate it

from vehicle.

NOTE

While pulling rear quarter trim, care should be

taken such that tree clip don’t get damage. Refer

exploded view for location of tree clips.

FITMENT

For fitment follow the reverse procedure of

removal.

NOTE

Before assembly check all trim clips and if found

damage replace with new one.
