SAFARI STORME MY14

BODY

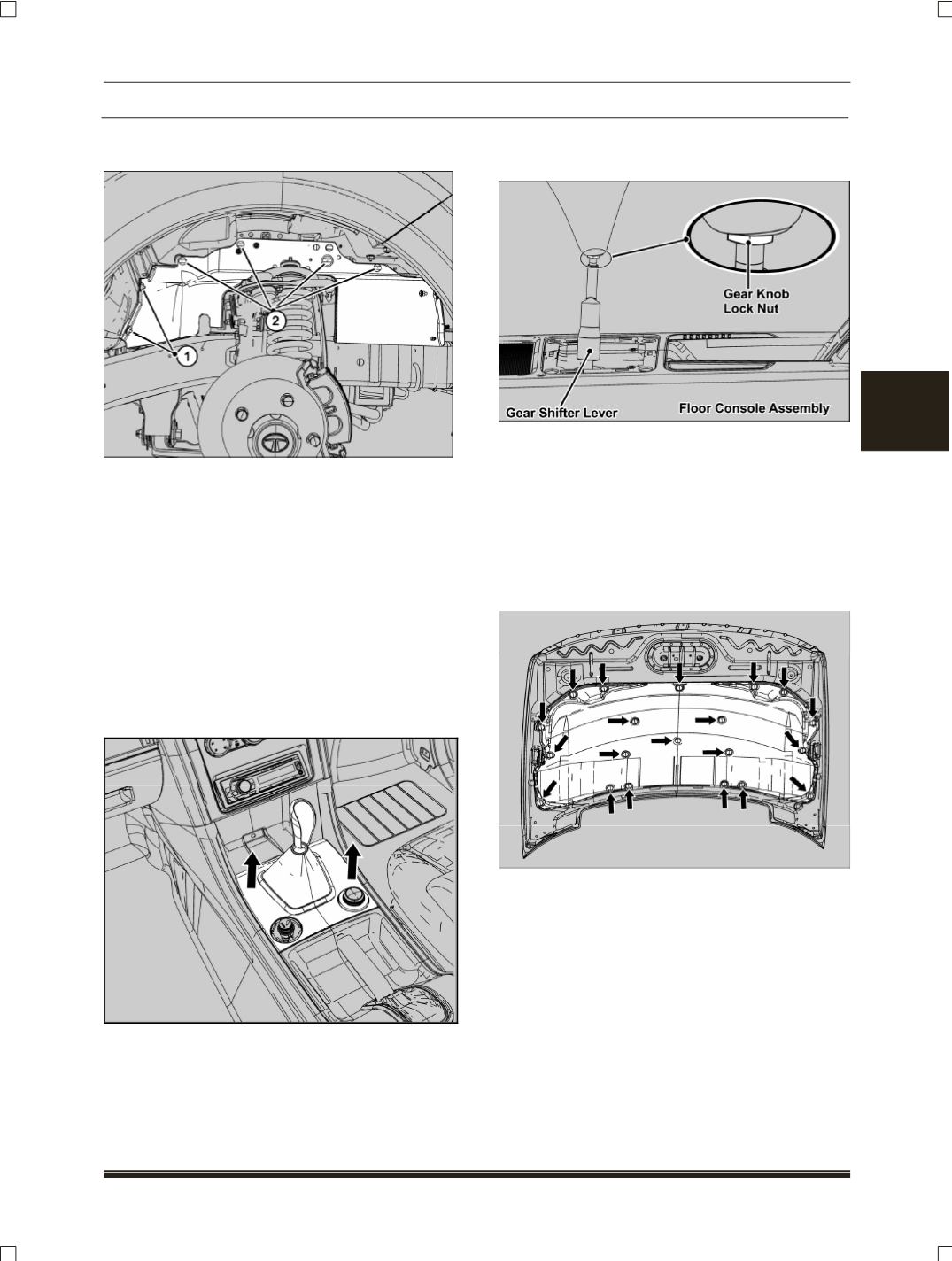

3. Remove plastic nut (1)(2 Nos.) and clips (2)(4

Nos.).

4. Take out the inner wheel arch from the vehicle.

FITMENT

For fitment follow reverse procedure of removal.

NOTE

Check the plastic nut and button clips for damage

and replace the same with new one if found

damaged.

9.2.38 GEAR LEVER BOOT

REMOVAL

1. Pry out the gear shifter lever bezel to access

lock nut.

2. Loosen the lock nut and remove the gear shifter

boot along with bezel.

FITMENT

For fitment follow reverse procedure of removal.

9.2.39 BONNET INSULATION

REMOVAL

1. Open the bonnet.

2. Pull out the insulation from the bonnet

assembly.

FITMENT

For fitment follow reverse procedure of removal.

NOTE

Check the condition of clips if found damaged

replace the same with the new one.
