BODY
67
BODY

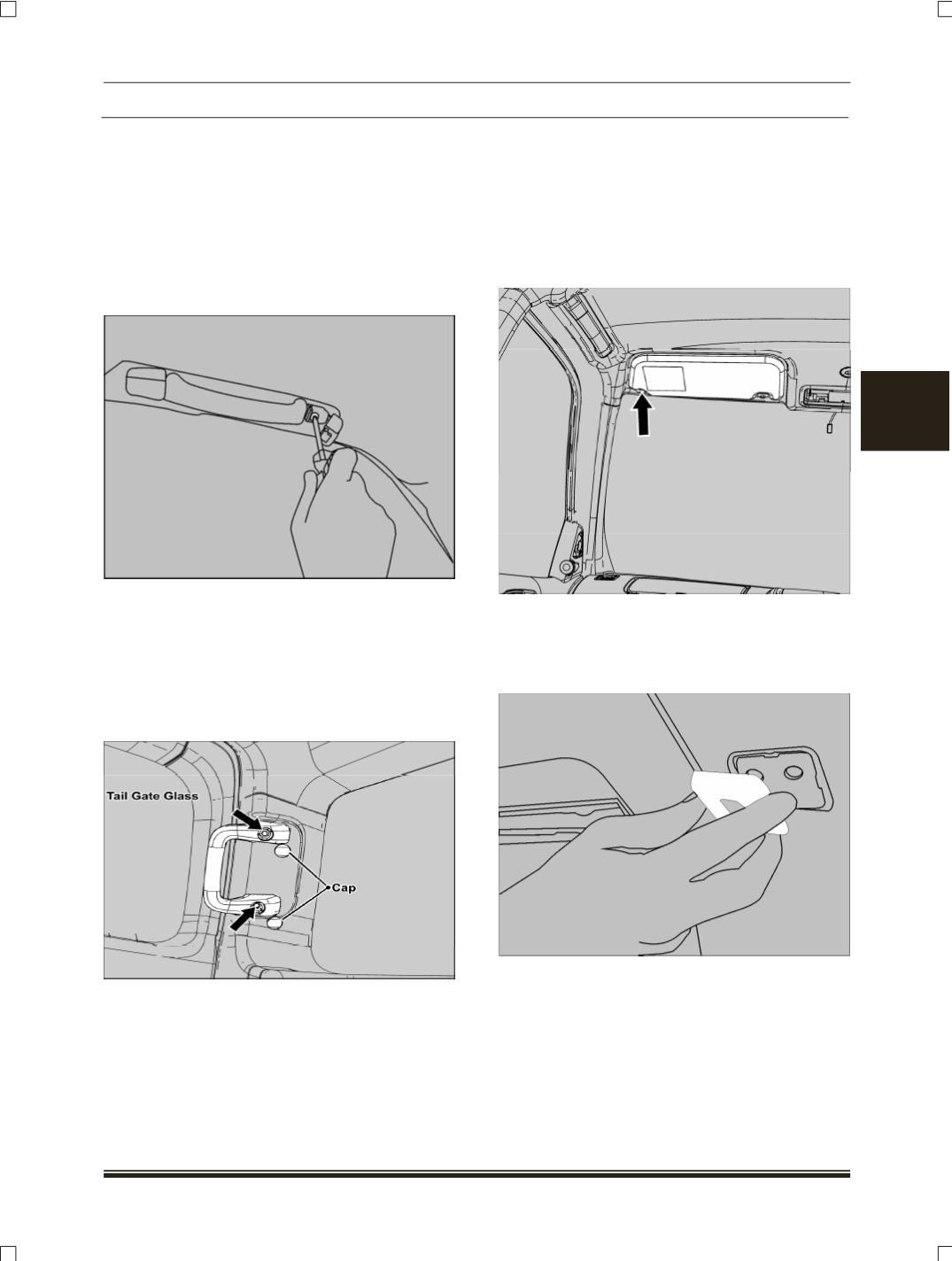

ROOF GRAB HANDLE
NOTE
The procedure given for removal of grab handle is
applicable for all three grab handles in the vehicle.
REMOVAL
1. Pull out the rubber cap to access the mounting
bolts them loosen and remove two bolts and
take out the assembly.
FITMENT
For Fitment follow reverse procedure of removal.
“D” PILLAR TRIM GRAB HANDLE
1. Pull out the cap to access the mounting bolts of
grab handle then Loosen and remove two
mounting bolts to remove grab handle
FITMENT
For Fitment follow reverse procedure of removal.
9.2.34 SUNVISOR
REMOVAL
1. Pullout the sunvisor from hook for easy access
to mounting bolts.
2. Pull out the cap and loosen and remove two
mounting screws and remove the sunvisor
assembly.
3. Remove electrical connections and take out
sunvisor assembly.
4. If required pull out the flap and take out the
hook by removing two mounting screws.
FITMENT
For Fitment follow reverse procedure of removal.
NOTE
Procedure given for sunvisor removal is similar for
both sides
.
