13
SUSPENSION

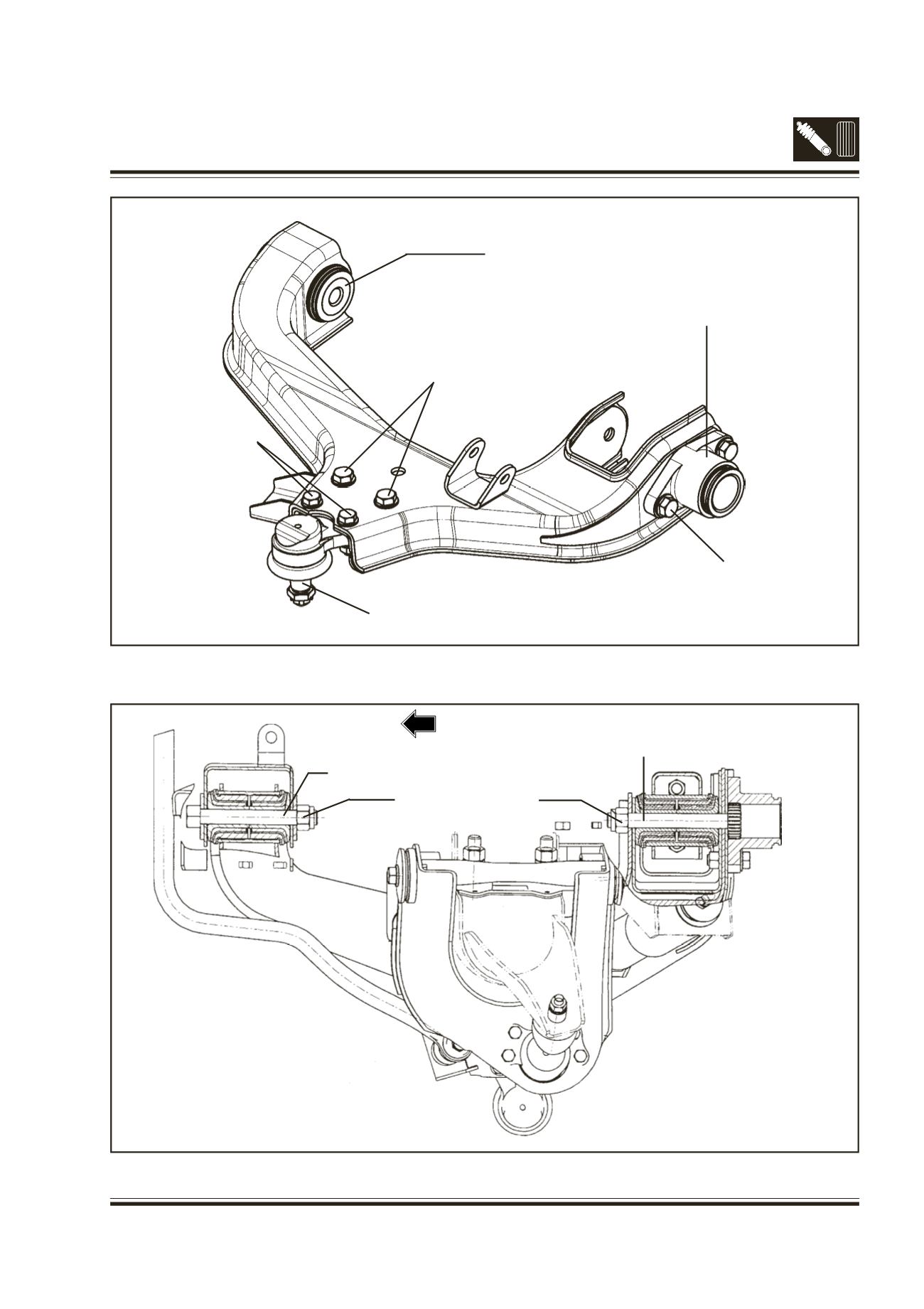

Fig. 13 - Installation of lower wishbone
Fig. 12 - Assembly lower wishbone
PIVOT BUSH
TORSION BAR MOUNTING
BRACKET
HEX. SCREW M12 x 1.5 x 45
BRIGHT WASHER 13
SPRING WASHER B 12
HEX. NUT M 12 x 1.5
TORQUE 9.7 Kg-m
HEX. SCREW M10 x 40
BRIGHT WASHER 10.5
SPRING WASHER B 10
HEX. NUT M 10
TORQUE 6.5 Kg-m
LOWER BALL JOINT
HEX. SCREW M12 x 1.5 x 40
BRIGHT WASHER 13
SPRING WASHER B 12
HEX. NUT M 12 x 1.5
TORQUE 9.7 Kg-m
VEHICLE FRONT
MOUNTING PIN FRONT
NYLOC NUT M 16 x 1.5
TORQUE - 14-16 Mkg.
MOUNTING PIN REAR
(SERRATED)
-
