342 / 1526
10
SUSPENSION
REAR JACKING POINT
(Below Rear Axle Tube)
FRONT JACK
(Below Long member)
4. REMOVAL/DISMANTLINGPROCEDURE
4A. REMOVAL OF FRONT WHEELS
l
Place wheel chokes on both sides of rear wheels
to secure the vehicle against any movement.
l
Slightly loosen the front wheel nuts.
l
Keep the jack below the long member, behind
front wheel and jack up (Fig.4). Support the frame
long member behind the front wheel with suitable
support.
l
Similarly jack up other side and support the long
member.
l
Unscrew and remove the wheel nuts.
l
Remove the front wheels.
48. REMOVAL OF FRONT ANTIROLL BAR
(Fig. 2)
l
Unscrew and remove the nuts holding the antiroll
bar to the bracket on lower wishbone and remove
the bolt, cups, sleeve and rubber bushes (Fig.5).
l
Unscrew and remove the hex. screws holding the
antiroll bar bearing block (rubber) and lamp with
the bracket on chassis frame long member.
l
Remove the bearing block (rubber) and clamp
from the antiroll bar assembly.
l
Take out the antiroll bar.
4C. REMOVAL OF FRONT SHOCK ABSORBER
(Fig.3)
l
Unscrew and remove the nyloc nut holding the
shock absorber top (Fig.6). Remove the spacer
and bush.
l
Unscrew and remove the bolt connecting the
shock absorber bottomwith mounting bracket on
lower wishbone.
l
Compress the shock absorber and remove it.
3. SPECIAL TOOLS
Description
Part Number
Adaptor for lower wishbone 2699 5890 41 01
mounting
Adaptor for upper wishbone 2699 5890 41 02
mounting
Mandrel for installation of
2654 5890 32 01
clip ring on ball joint.
Puller for removal of upper & 2654 5890 32 03
lower ball joints

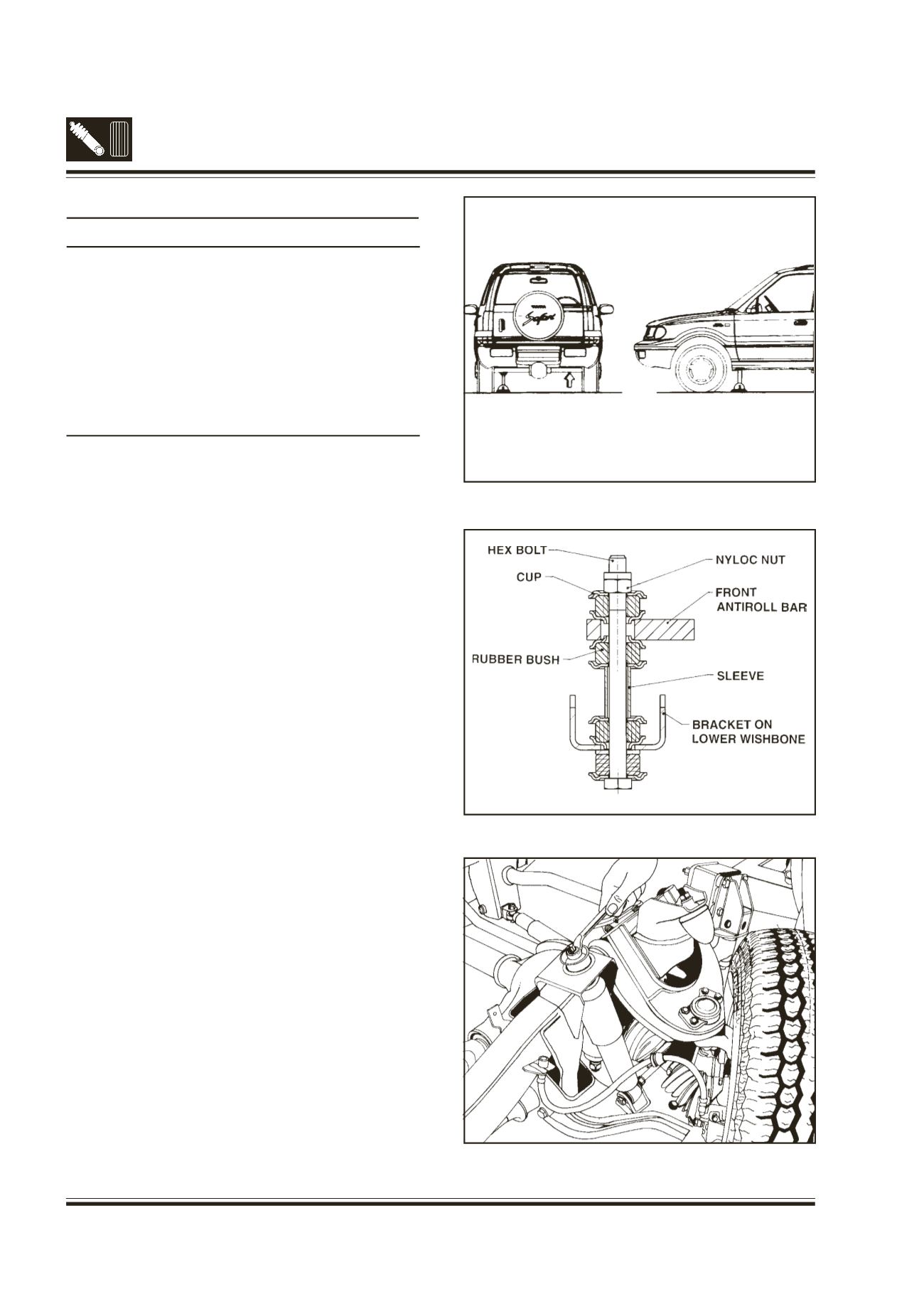

Fig. 4 - Jacking the wheel
Fig. 6 - Removal of shock absorber
Fig. 5 - Antiroll bar mounting on lower wishbone
