SAFARI

GEAR BOX G-76

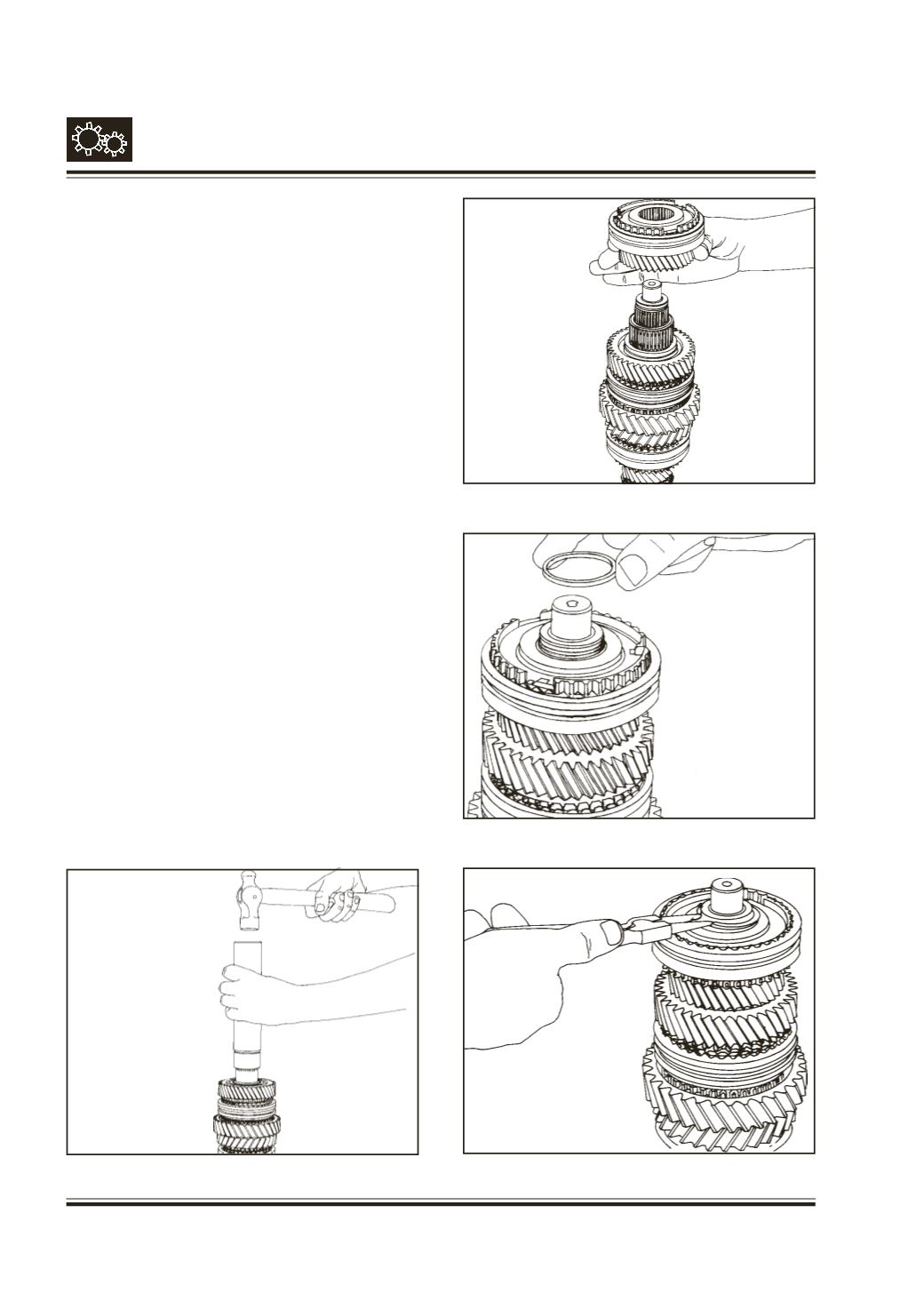

Push the bush (25) with the help of drift,

2654 5890 35 11.

Fig. 65

Note :

The spacer has to be heated to 100 to 120

degree Centigrade before assembly.

Slide 3rd gear sub-assembly (23) along with the

needle roller cage (24) and engaging gear 3rd/4th

(22) over main shaft keeping engaging gear upwards.

Fig. 66

Slide spacer ring (16) over main shaft. Fig

. 67

Select suitable snap ring (15), which will fit snugly.

Snap rings are available from 2.0 to 2.4 mm in the

step of 0.1 mm.

Fig. 68

Measure the dimensions for the selection of shims.

(As per procedure mentioned).

Shims (10/10a) are available in thickness of 0.05,

0.125, 0.240 & 0.5 mm.

Fig. 68

Fig. 67

Fig. 66

Fig. 65
