4 PL FUEL SYSTEM
FUEL HOSES & LINES :
The delivery and return lines are made of nylon pipes
with quick fix couplings at joints.
The vapour lines aremadeof rubber hoses andpipeswith
clamps at joints.
Removal :
1.
Ref.Procedureasmentioned for‘removal of fuel tank’.
2.
To avoid damage to the vapour hoses while
disconnecting slide back the clamps then twist the
lines as you pull.
3.
Disconnect quick fix couplings by pressing the two
tabs. Fig 16.
Inspection :
1.
Visually check all hoses and pipes connected via
clamp/quick fix couplings for leaks, loose
connections, deteriorationordamage, hosecracketc.
Replace if necessary.
2.
Make sure that all clamps are secure.
3.
If the pipe clamps / quick fix couplings found
deformed, bent or broken, replace with new one.
Assembly :
1.
Do not tighten the clamps used on breather hose /
filler hose excessively to avoid damage to hoses.
Use suitable tool for fitment of clamp.
2.
Fuel hoses to fuel pipe connections varies for each
type of pipe. Necessary care to be taken to connect
and clamp each hose correctly.
3.
Ensure that quick fix couplings are fittedproperlyon
to pipe,filter,pump fittings.
4.
Donot kinkor twist hose / pipewhen theyare routed.
5.
Install fuel fillerhoseafter fuel tankhasbeenmounted
in place on vehicle otherwise this may leads to
leakage of fuel around hose connections.
6.
Connect negative terminal at battery.
7.
Turn ignition switch ON and run engine idle. Check
for fuel leakages.

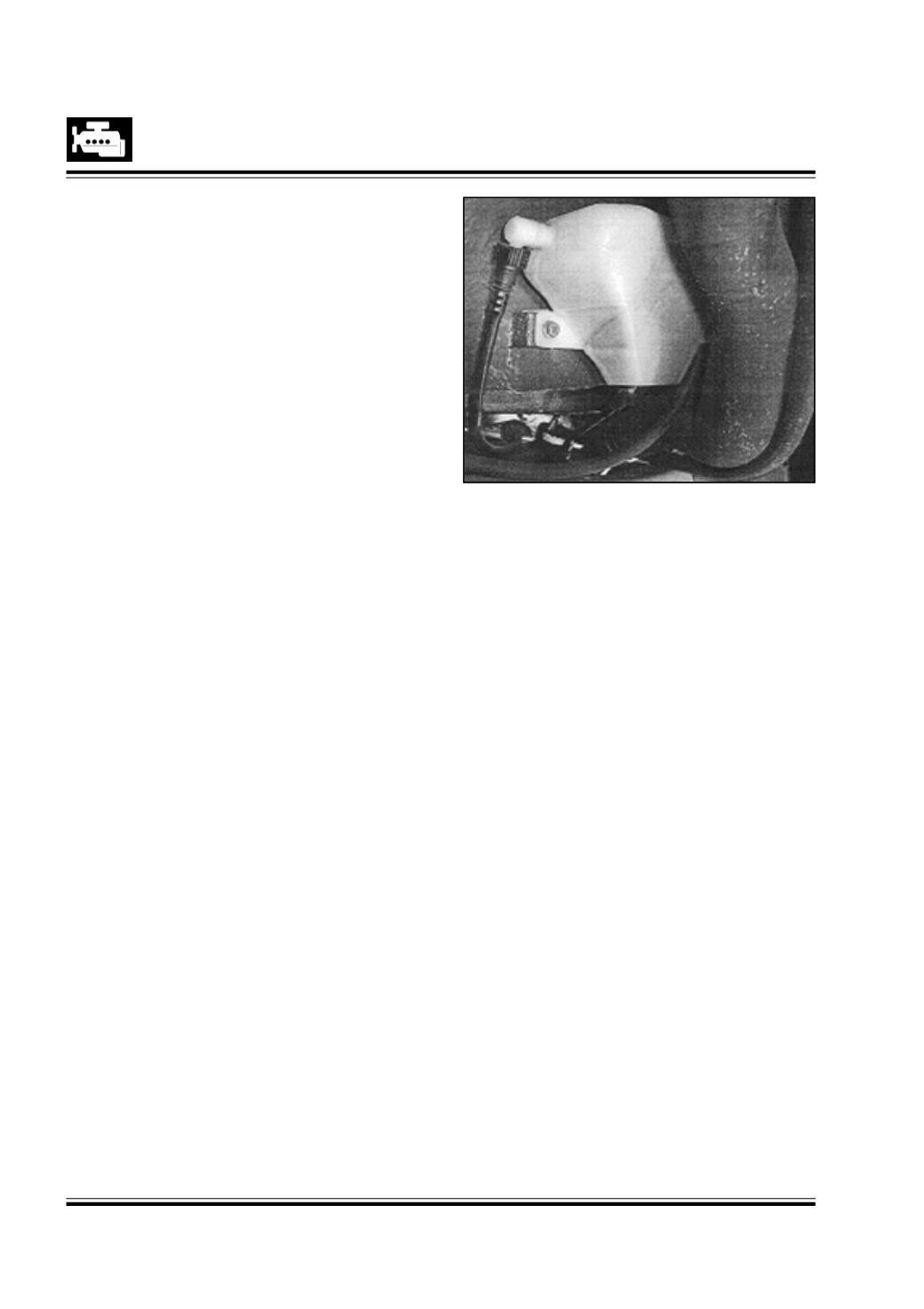

Fig. 16
