ENGINE
51
FUEL INJECTION SYSTEM

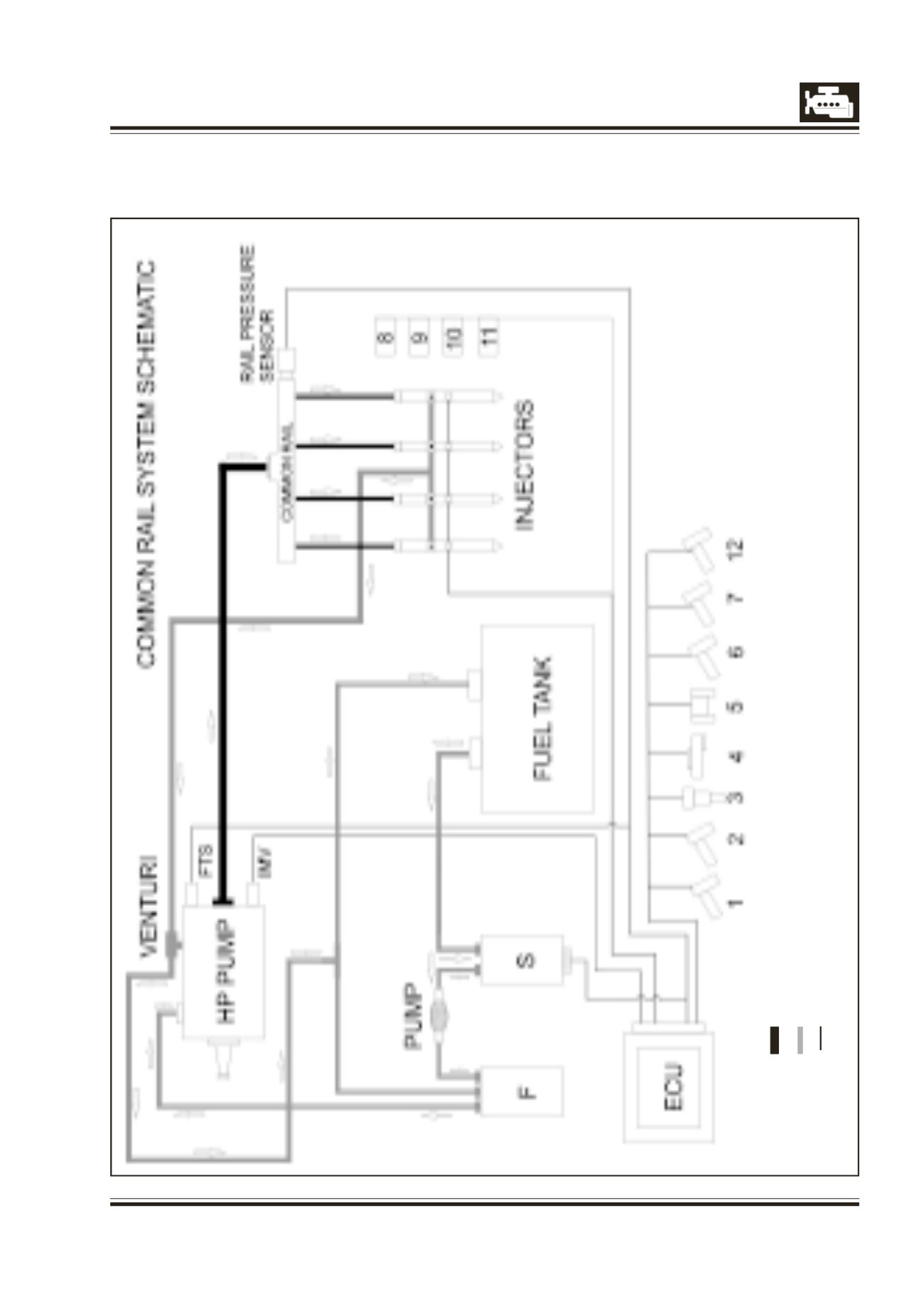

CR System Layout
HP LINES
LP LINES
ELEC. CONN.
1.
CAMSENSOR
2.
CRANK SENSOR
3.
PEDAL SENSOR
4.
T - MAP SENSOR
5.
AMFSENSOR
6.
TEMP.SENSOR
7.
KNOCK SENSOR
8.
AC
9.
FAN 1
10. FAN 2
11. EGR
12. VEHICLE SPEEDSENSOR
FTS - FUELTEMP.SENSOR
IMV - INLETMETERINGVALVE
F - FILTER
S - SEDIMENTER
