SAFARI

ENGINE

Fig. 9

Fig. 10

Fig. 11

Fig. 12

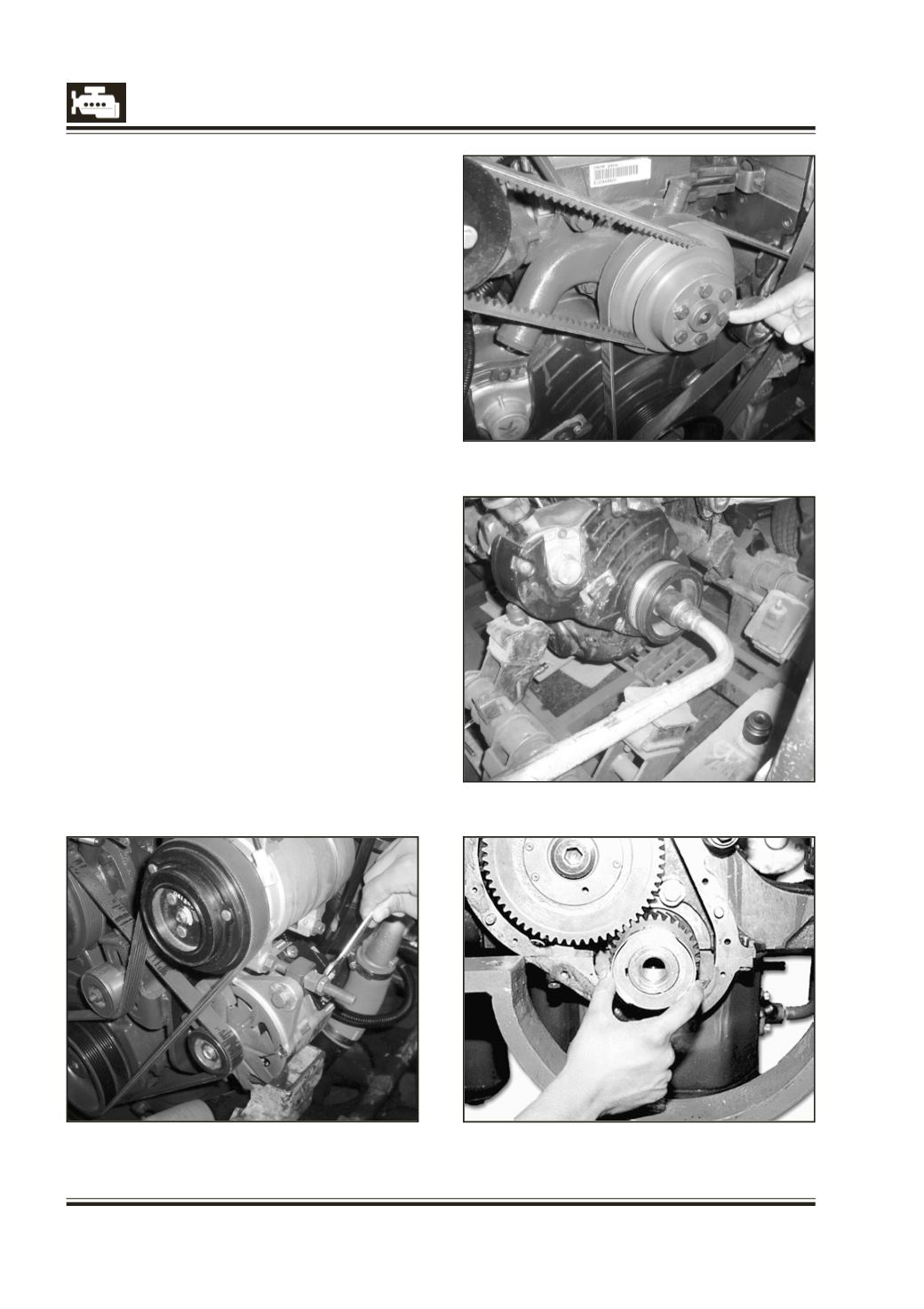

REPLACEMENT OF OIL SEAL IN TIMING

HOUSING COVER

1 Drain cooling water in clean container if mixed with

anti-freeze so that it can be reused.

2 Remove radiator assy and intercooler.

3 Slacken and remove poly ‘V’belt Fig. 9.

4 Unlock and unscrew bolts with water pump pulley

Fig 10.

5 Lock the crankshaft at flywheel and remove

crankshaft pulley mounting bolt Fig. 11.

6 Pull out pulley using suitable two leg Puller with

Spacer.

7 Remove electrical connection for cam sensor.

8 Remove screws holding noise dampening cover

and tap it out from dowel pins.

9 Take out the oil slinger. Fig. 12.

10 Remove oil seal from timing gear housing cover

with a suitable punch.

11 Remove the gasket and clean timing housing

cover.
