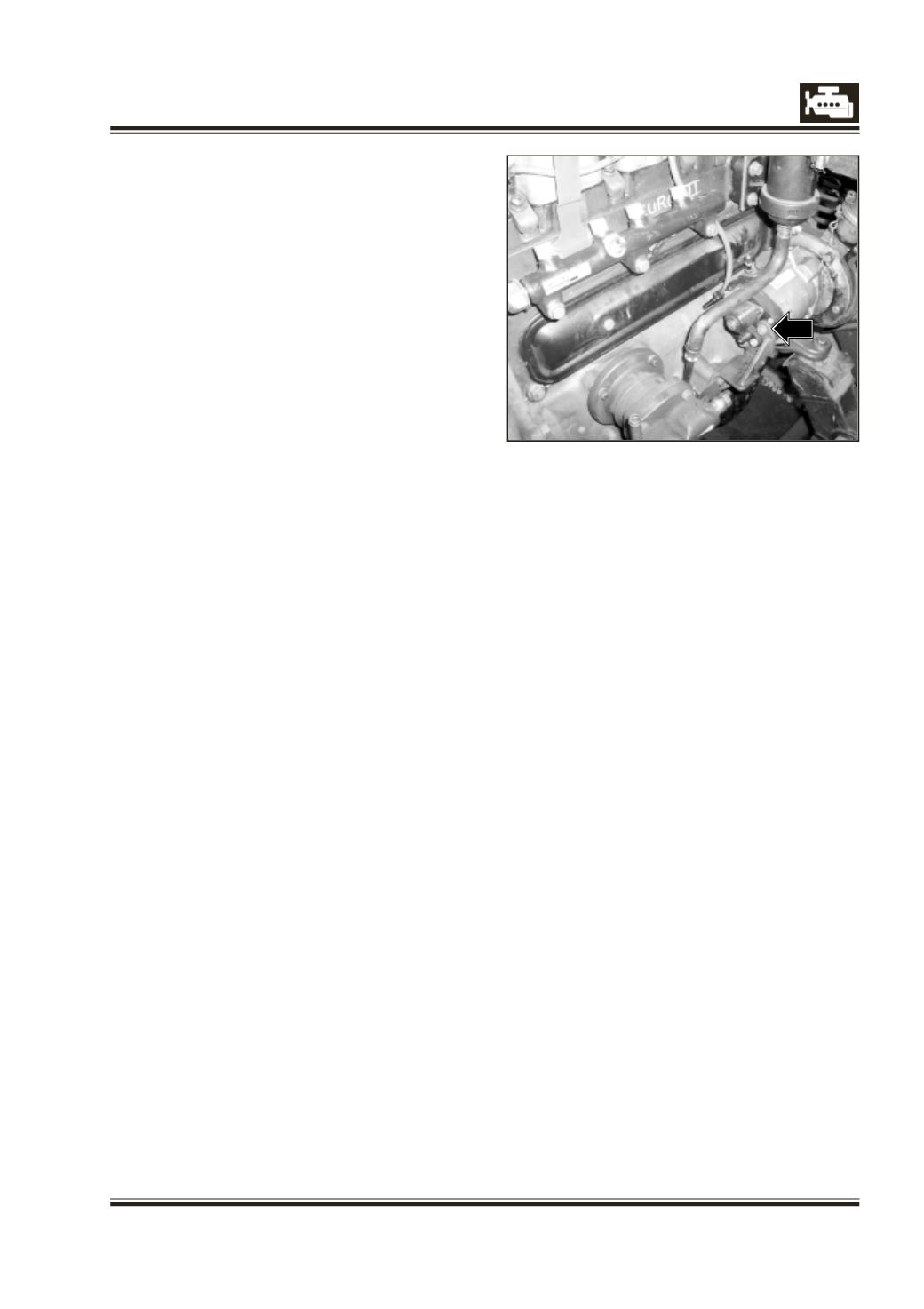

Fig 3
8.
Reuse of HP lines is prohibited
.
Any
HP line
once removed should not be
reused. Fit new
HP line as per the HP pipe fitment procedure
.
(Pump to rail)
9.
Apply Torque = 35 +/- 5 Nm. to each coupling
nuts of the HP lines.
10. Connect the back-leak pipes, low pressure fuel
lines and IMV and FTS electric connector
ensuring they are fully home.
11. Fit back the components in their place which
were removed or loosened for accessibility to
the pump assembly.
12. Prime the fuel system with the pear pump
(press the pump till it becomes hard).
NOTE
1.
Use new gaskets for pump mounting.
2.
Do not bend or apply any force on the HP line
while fitment.
3 Ensure that no fuel leakage is observed from
any where after starting the engine at idle and
at maximum speed of engine after accelerator
pedal is pressed.
