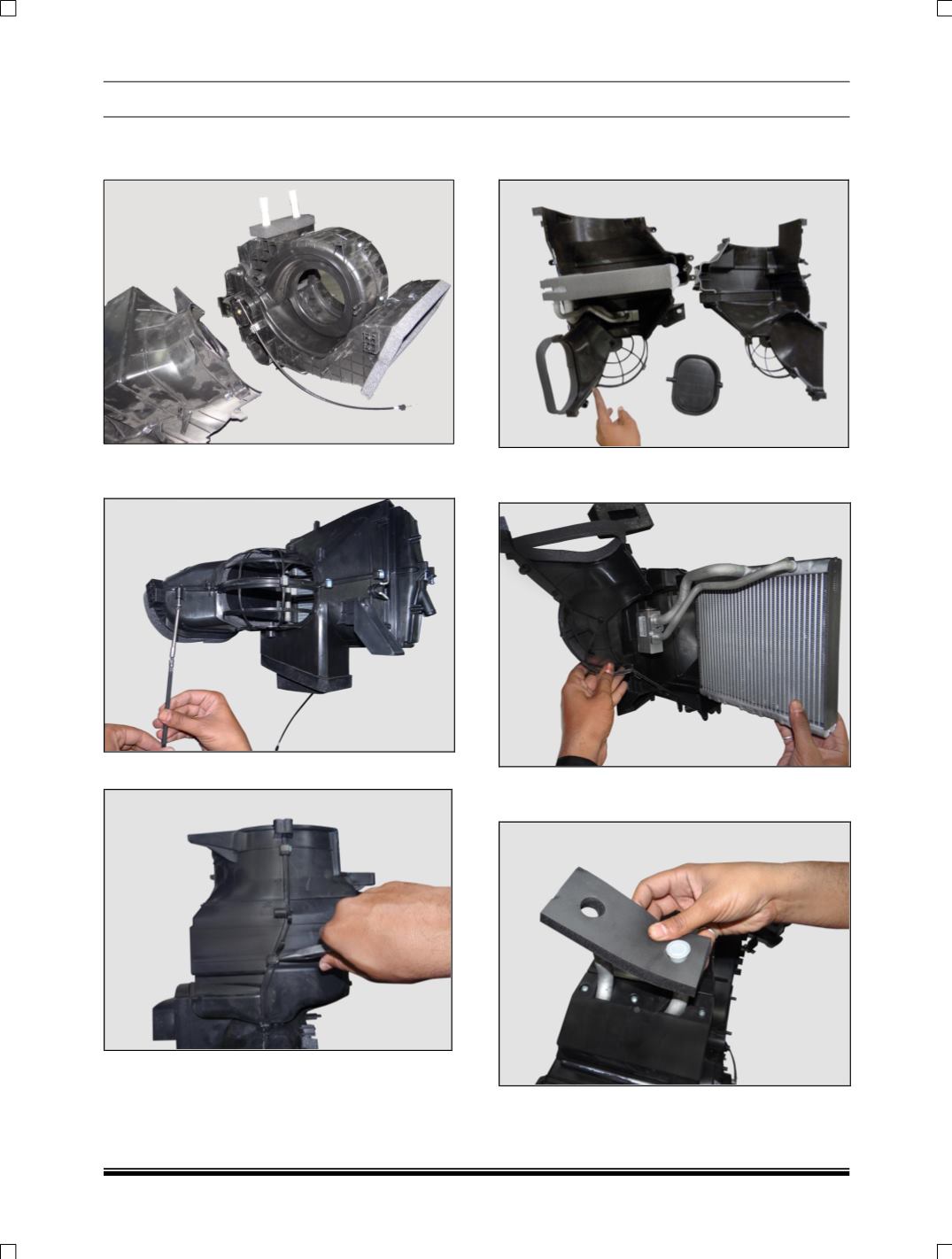

18.Separate the air intake / evaporator Housing as-

sembly and distribution housing assembly.

19.Remove the five fasteners from air intake / evap-

orator Housing assembly

20.Remove the all clips.

21.Separate the air intake / evaporator Housing as-

sembly.

22.Separate the evaporator from air intake / evapo-

rator Housing assembly.

23.Pull the foam forward so that mounting screw of

upper lock is visible
