TIAGO

HVAC

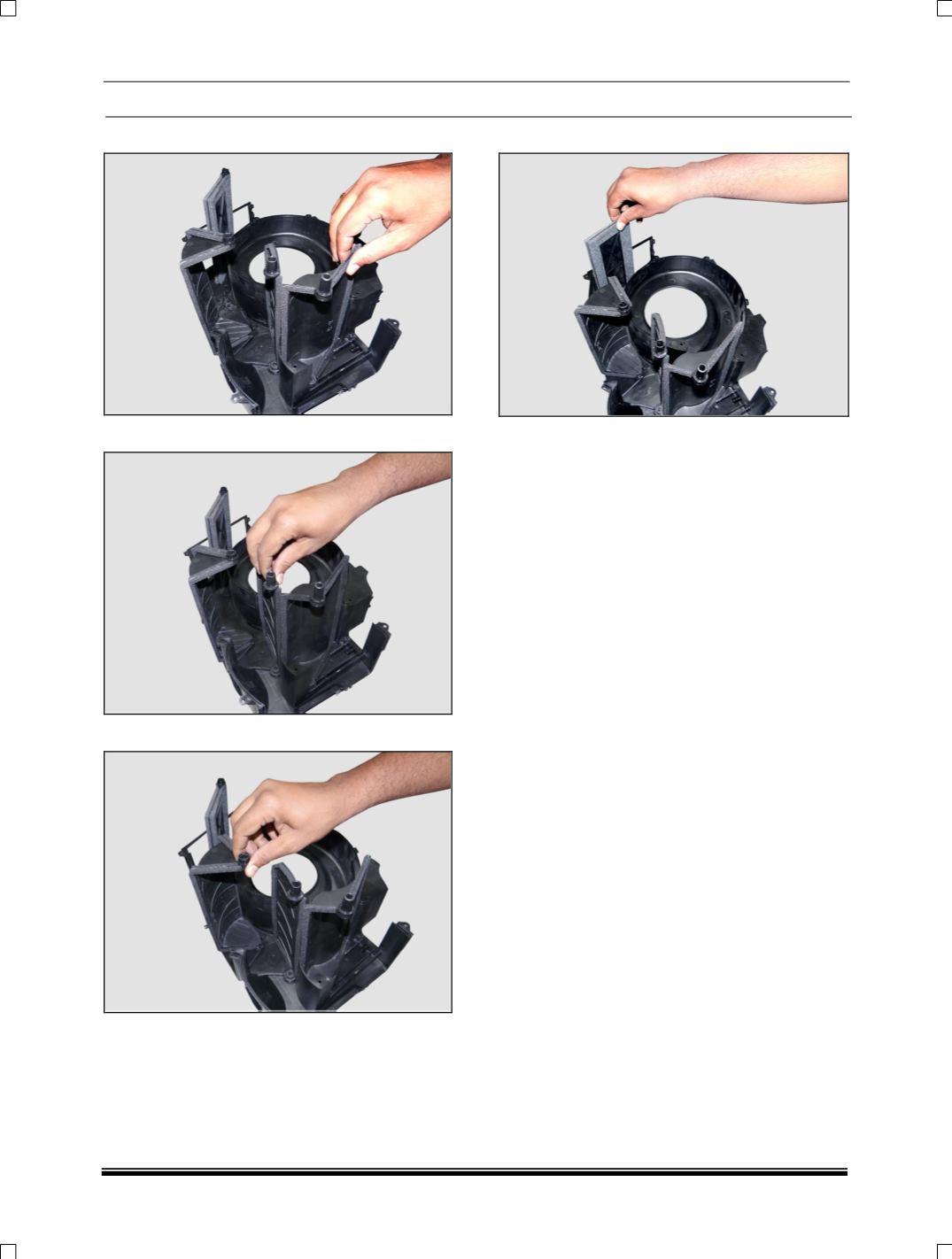

36.Remove air recirculation foot.

37.Remove air recirculation secondary flap.

38.Remove air recirculation primary flap

39.Remove air recirculation defrost flap.

INSPECTION

Following points need to be checked before assem-

bling the HVAC system:

1. Check if the recirculating gate is working properly.

2. Check for clogged heater coils.

3. Check for dirt on the evaporator fins.

4. Check wire mesh for any dirt on them.

5. Inspect and lubricate blower bearings.

ASSEMBLY

For assembly follow the reverse procedure of re-

moval.

NOTE



Before assembly clean the filter.



Before assembly of casing properly locate the

casing on the locator and then tighten the screws.
