TIAGO

HVAC

DO’s AND DON’Ts

Do’s

Don’ts

Risk

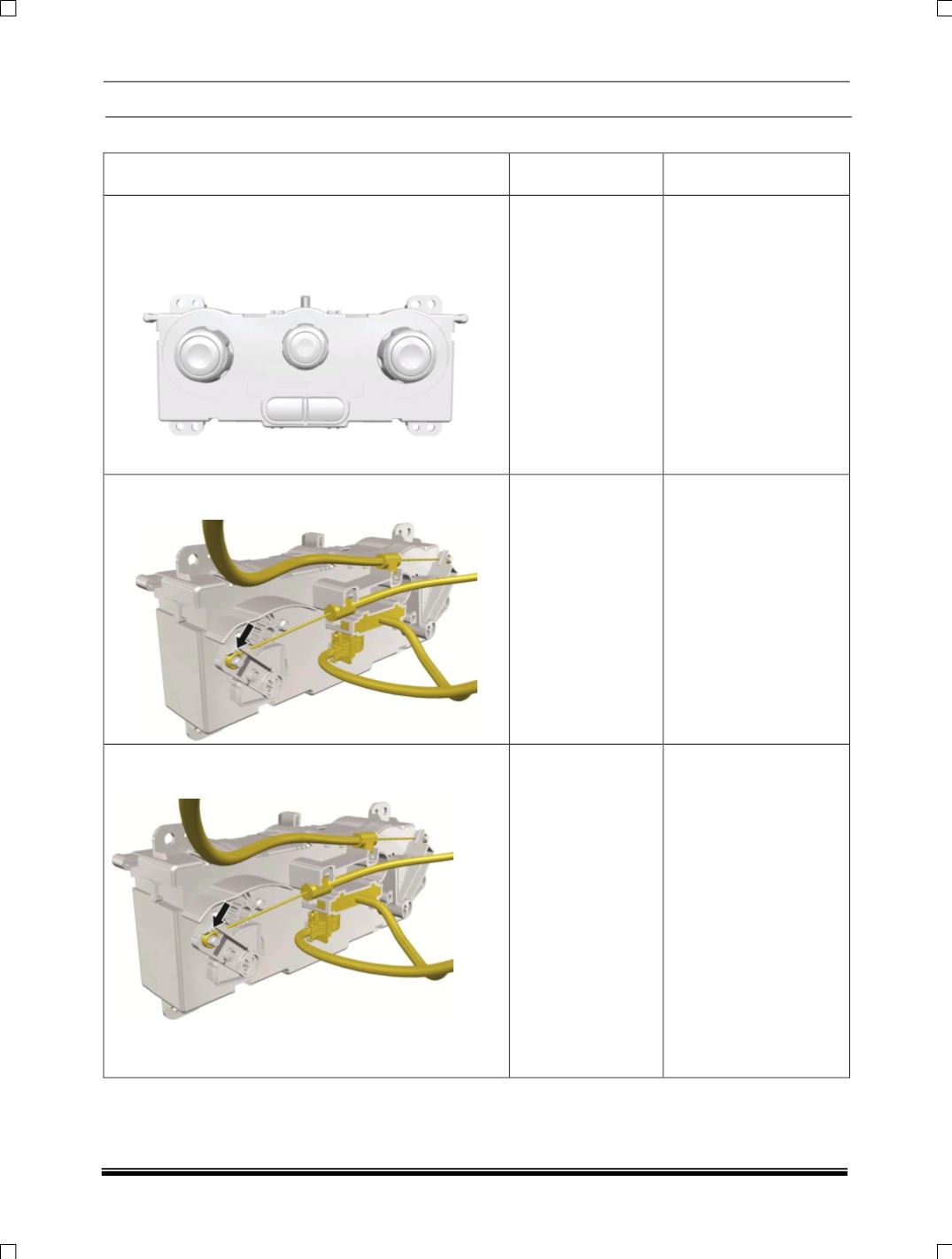

Control panel of HVAC will remove as fitment not possible

on CCB as constrain to console fitment

Do not remove con-

trol panel without

standard process.

First remove the Air mode Bowden cable by snap un-

locking.

Do not remove

Bowden cable di-

rectly and do not

pull.

Snap locked can be bro-

ken if not unlocked

properly

Remove the air mode Bowden cable end locking point

from CP knob.

Do not remove the

air mode Bowden

cable without un-

locking.

Cable can bend if not

handled properly.
