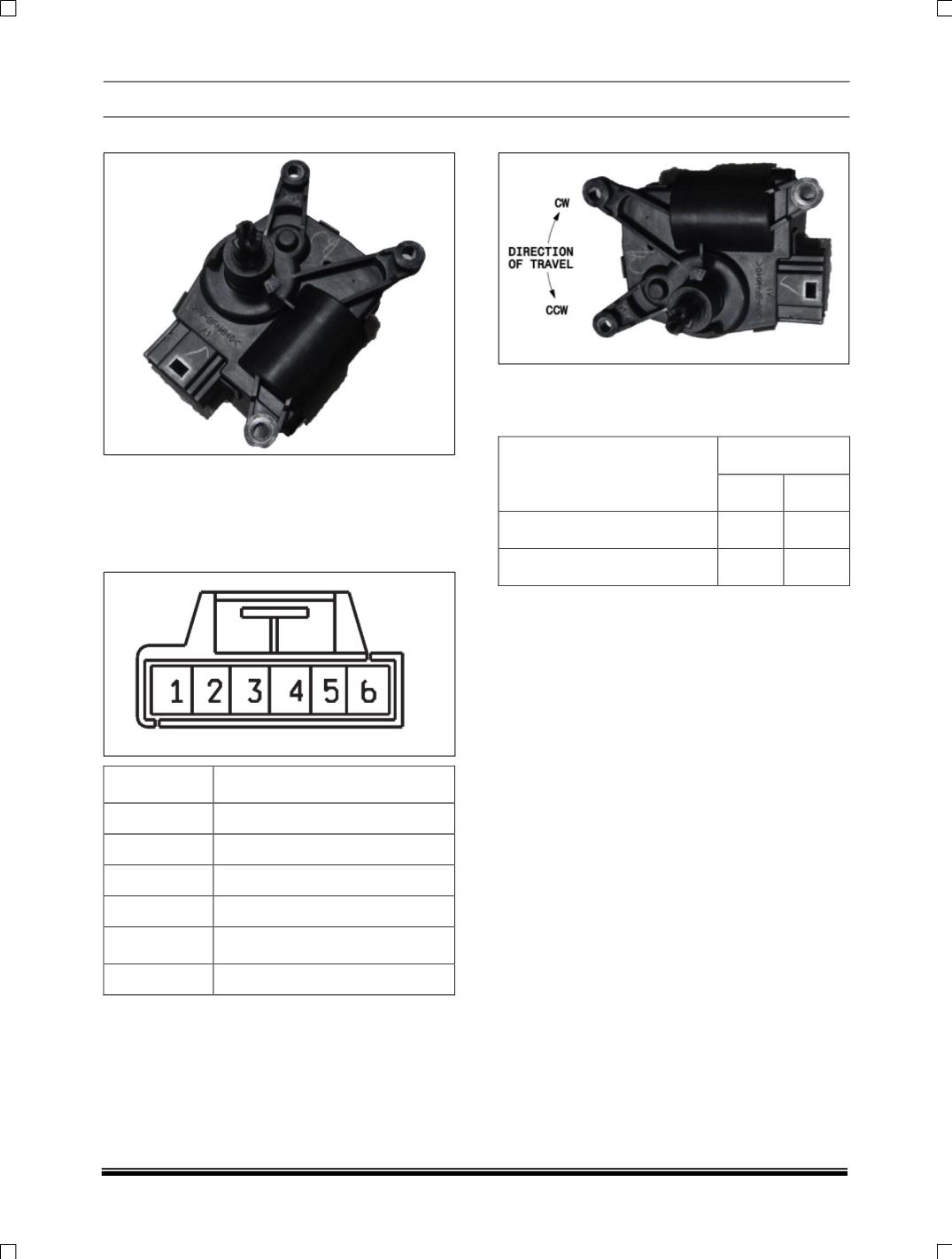

10.1.5.7. AIR INLET ACTUATOR.
The actuator used to operate the air intake door is a
bi-directional with no feedback actuator. It controls
the air intake door through the air intake control volt-
age.
PINOUT
PIN NO
DESCRIPTION
1
Not Used
2
Not Used
3
Not Used
4
Not Used
5
+ VE
6
Ground
INSPECTION
When 12.0V supply is given to pin 5 and pin 6, the
movement of the actuator should follow the following
table.
Motor Movement
Input
Pin 5
Pin 6
Clockwise rotation
+ VE
- VE
Counter Clockwise rotation - VE
+ VE
