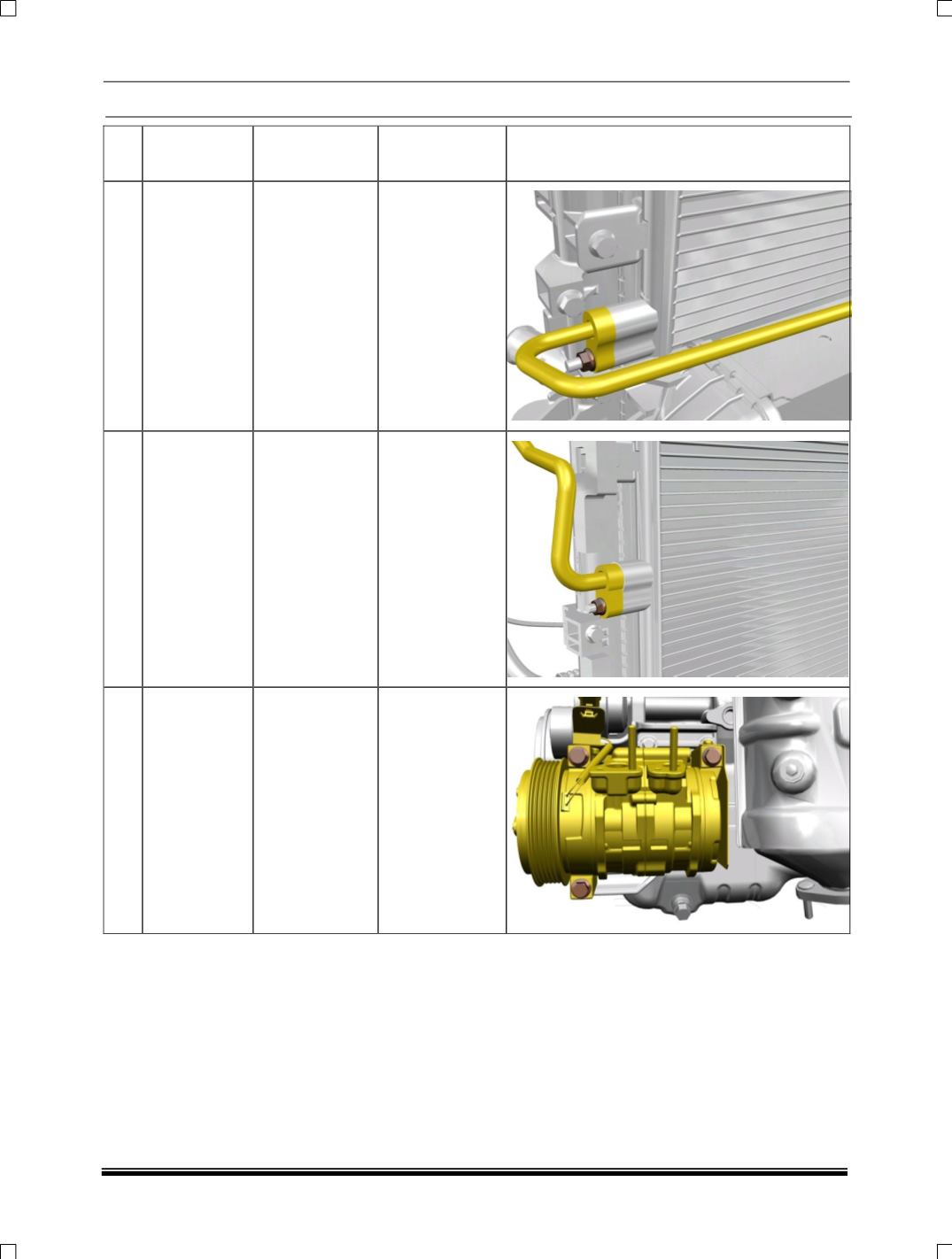

HVAC
8
SR
NO.
DESCRIPTION FASTENER
TIGHTENING
TORQUE (N-m)
LOCATION
4A
Refrigerant line
on condenser
inlet
Hex FL nut AM6
TS17430-8-
SS8451S2
6 – 8
4B
Refrigerant line
on condenser
outlet
Hex FL nut AM6
TS17430-8-
SS8451S2
6 – 8
5
Compressor
mounting
M8 X 85
24.52 + 2.94
