HVAC
7

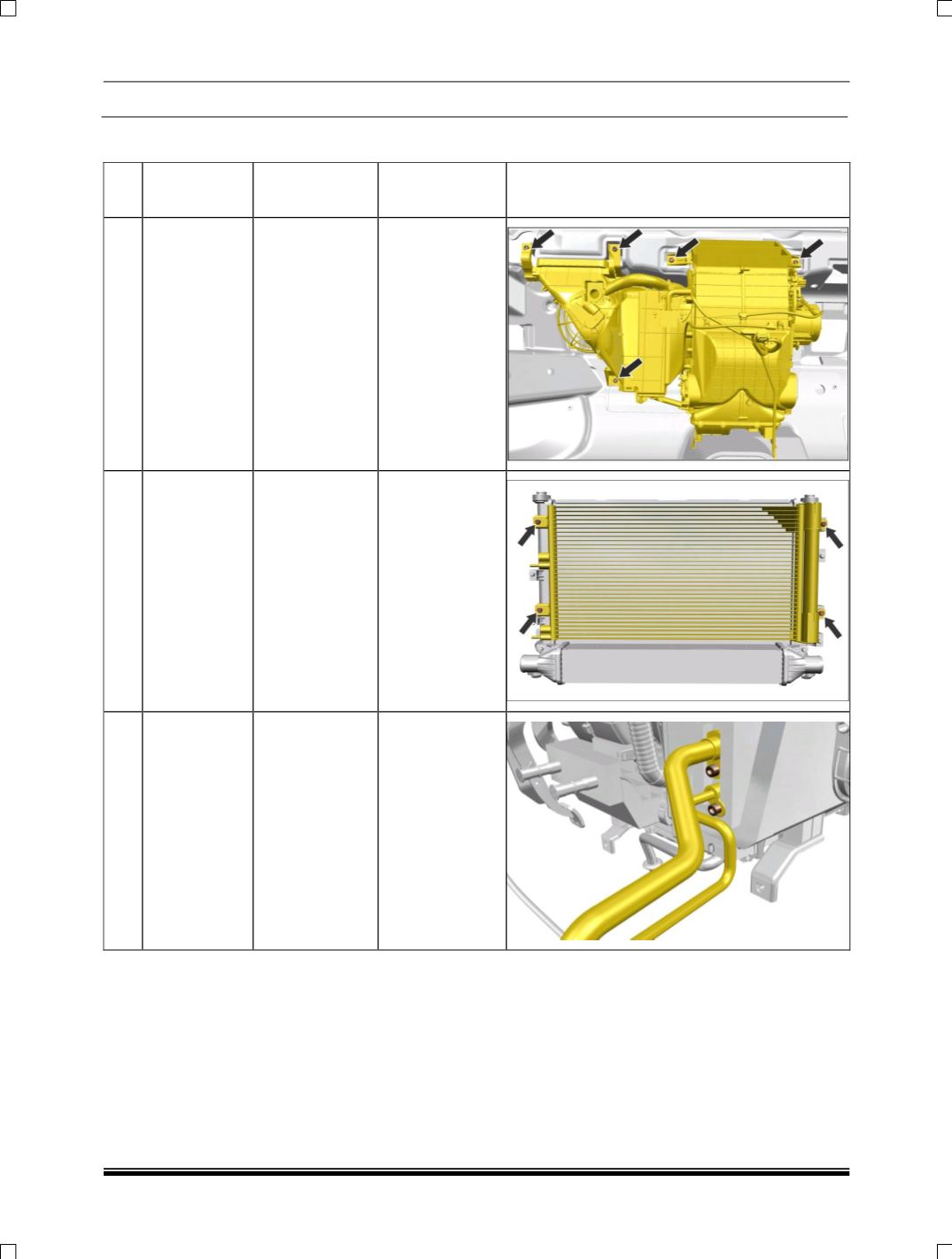

B. FOR PETROL MODEL
SR
NO.
DESCRIPTION FASTENER
TIGHTENING
TORQUE (N-m)
LOCATION
1
Front HVAC
mounting
Hex FL nut AM6
TS17430-8-
SS8451S2
TBD
2
Condenser
mounting
on radiator
M6 X 18
6 – 8
3
Refrigerant
lines to HVAC
unit
M6 X 20
10
