914 / 1002
HVAC
4
SR
NO.
DESCRIPTION FASTENER
TIGHTENING
TORQUE (N-m)
LOCATION

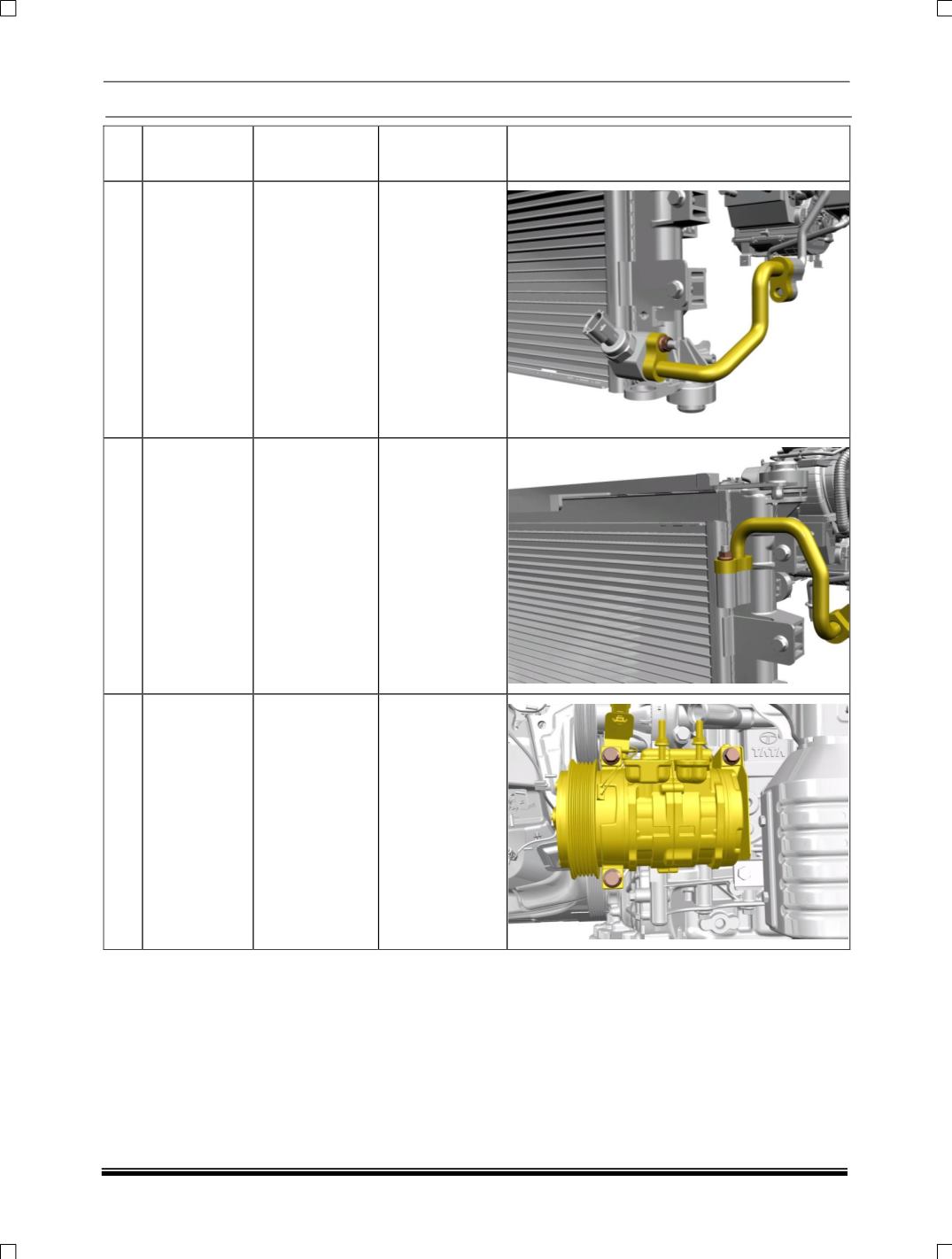

4A
Refrigerant
line on con-
denser inlet
Hex FL nut AM6
TS17430-8-
SS8451S2
6 - 8
4B
Refrigerant
line on con-
denser outlet
Hex FL nut AM6
TS17430-8-
SS8451S2
6 - 8
5
Compressor
mounting
M8 X 85
21.58 + 1.96
