C. LUBRICATION SYSTEM :

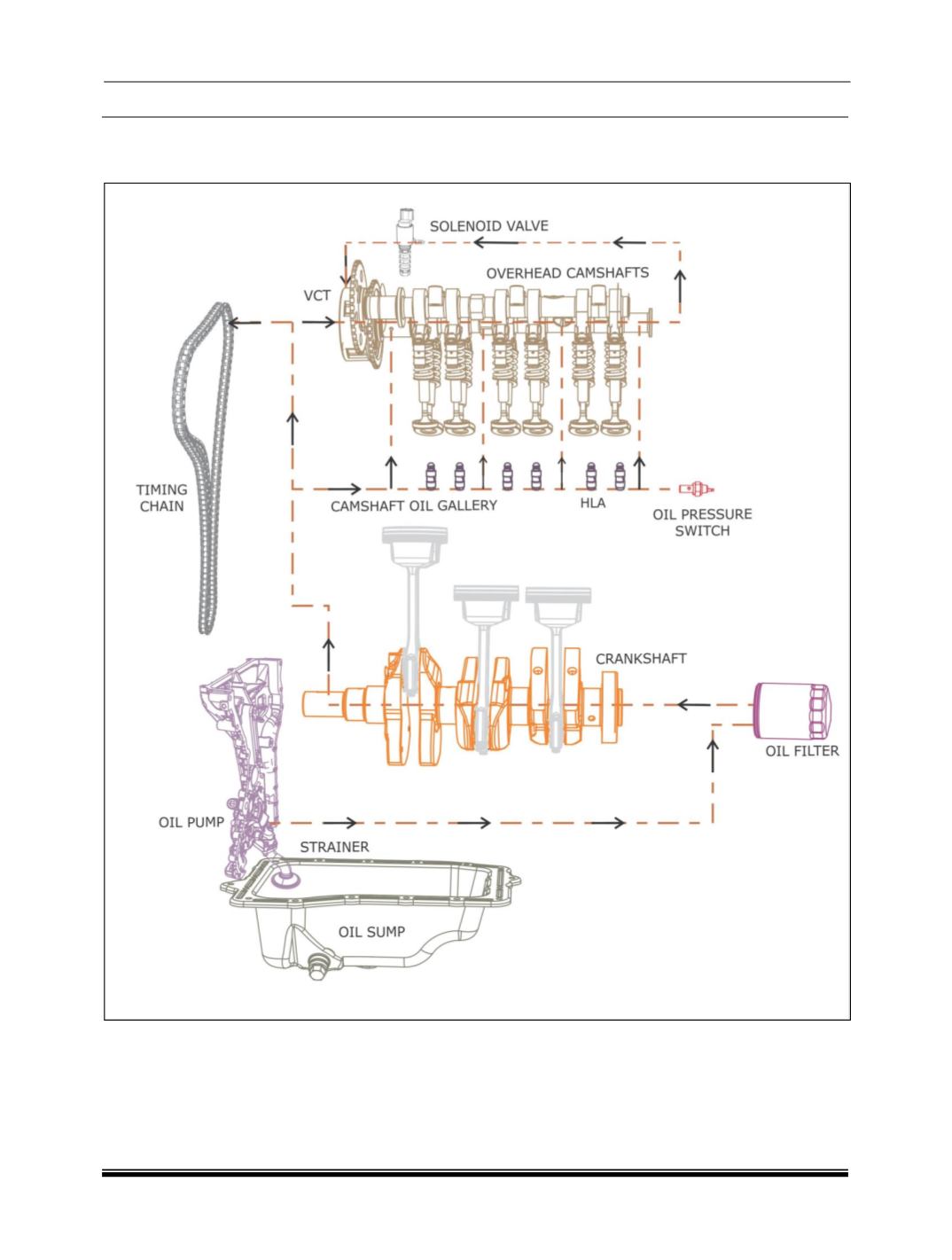

Lubrication System Schematic Layout
:
1
Oil Sump
6
Oil Pressure Switch Sensor
2
Strainer
7
HLA
3
Oil Sump
8
Camshaft
4
Oil Filter Assembly
9
VCT / Solenoid Valve
5
Crankshaft
