1.2L REVOTRON ENGINE
73
2.6 ENGINE SYSTEM:
A. AIR INTAKE SYSTEM :

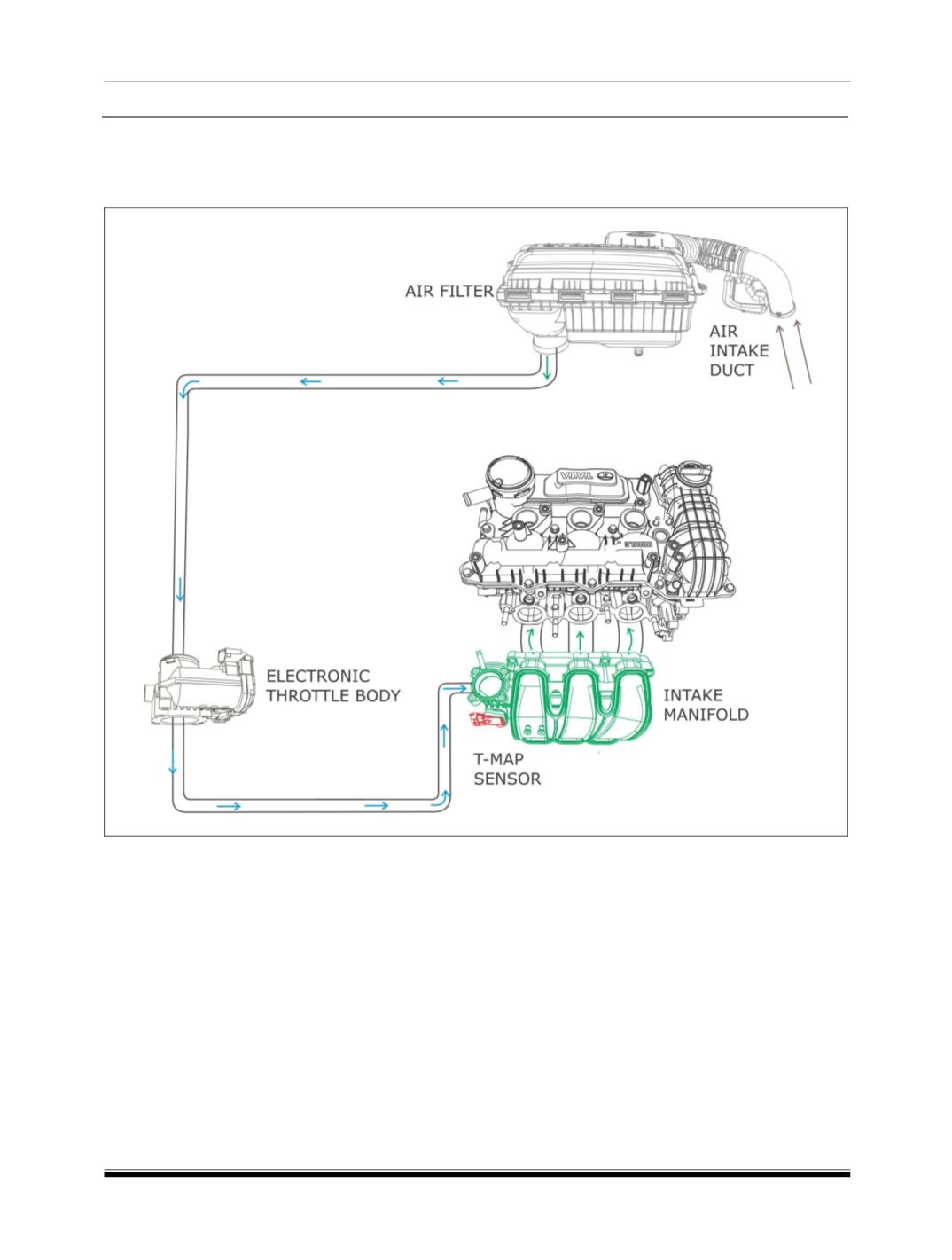

Air Intake System Schematic Layout :
1
Intake Snorkel (Duct)
4
T map sensor
2
Air Filter
5
Intake Manifold
3
Electronic Throttle Control
Description :
Air is drawn into the combustion chamber
through the air intake system as shown in
above schematic layout.
The air is driven to the intake manifold
primarily due to the suction created by the
engine. The fresh air from the outside
atmosphere is made to pass through air
snorkel and air filter and into the throttle body.
Throttle body is electrically controlled which
control the amount air supplied and then it is
drawn into the intake manifold and into the
engine.
