D. EXHAUST SYSTEM :

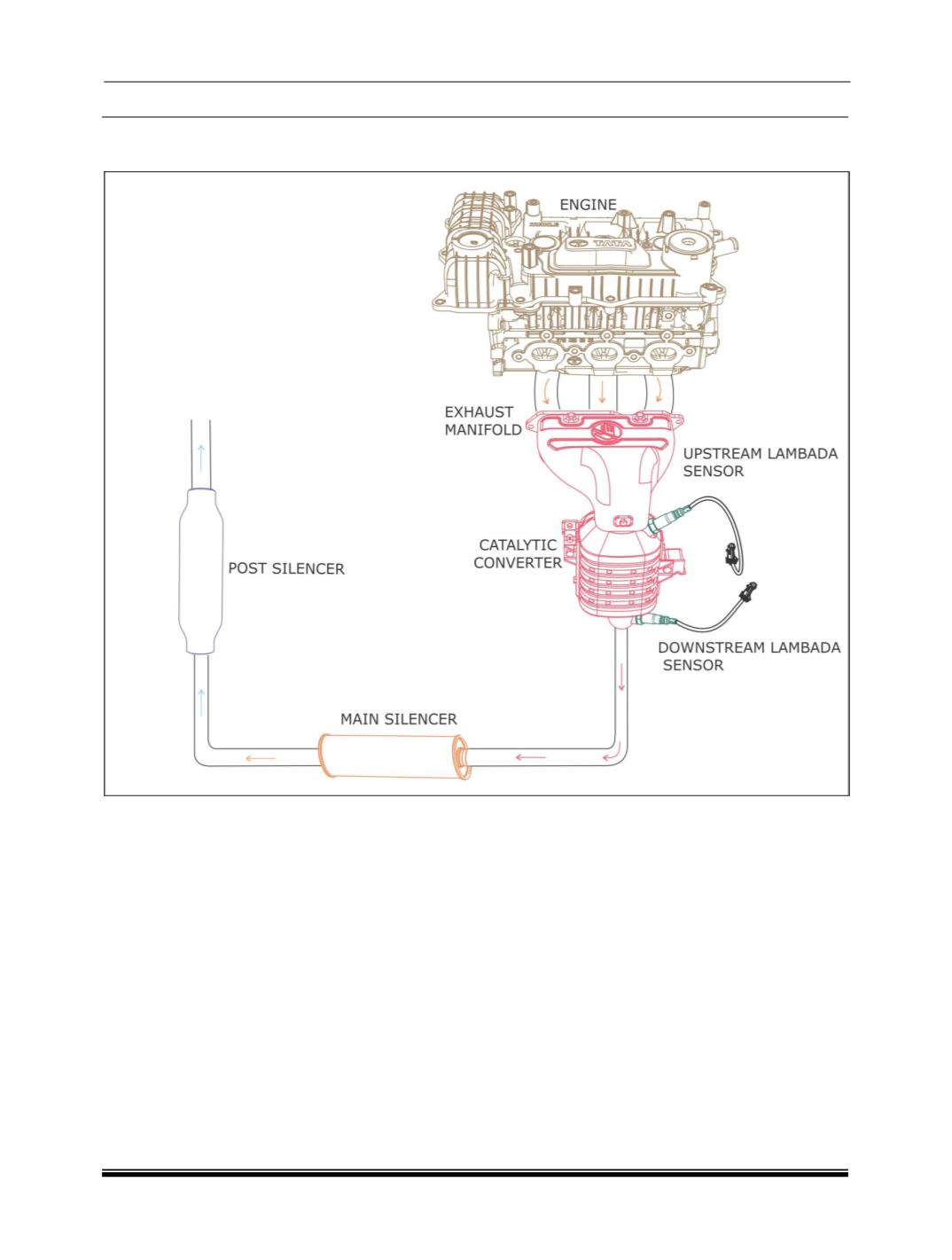

Exhaust System Schematic Layout :
1
Exhaust Manifold
4
Main Silencer
2
Lambda Sensor
5
Post Silencer
3
Close Coupled Catcon
Description :
The exhaust system consists of an Exhaust
manifold, Close Coupled Catcon Assy (CCC) and
Silencer. The exhaust pipes are supported using
rubber hangers. A common flange is connected to
the exhaust manifold.
The Close Coupled Catcon (CCC) is provided to
reduce the exhaust emission, whereas the
silencer is provided to dampen the sound of the
exhaust gases coming out of the engine.
The exhaust system consist of the following
components
1. Exhaust Manifold
2. Lambda Sensor
3. Close Coupled Catalytic Converter (CCC)
4. Main Silencer.
5. Post Silencer
